26622 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) RECOIL ASSEMBLY (ENGINE MODEL NO. VMJ8) Parts Diagram

Walk-Behind Mower

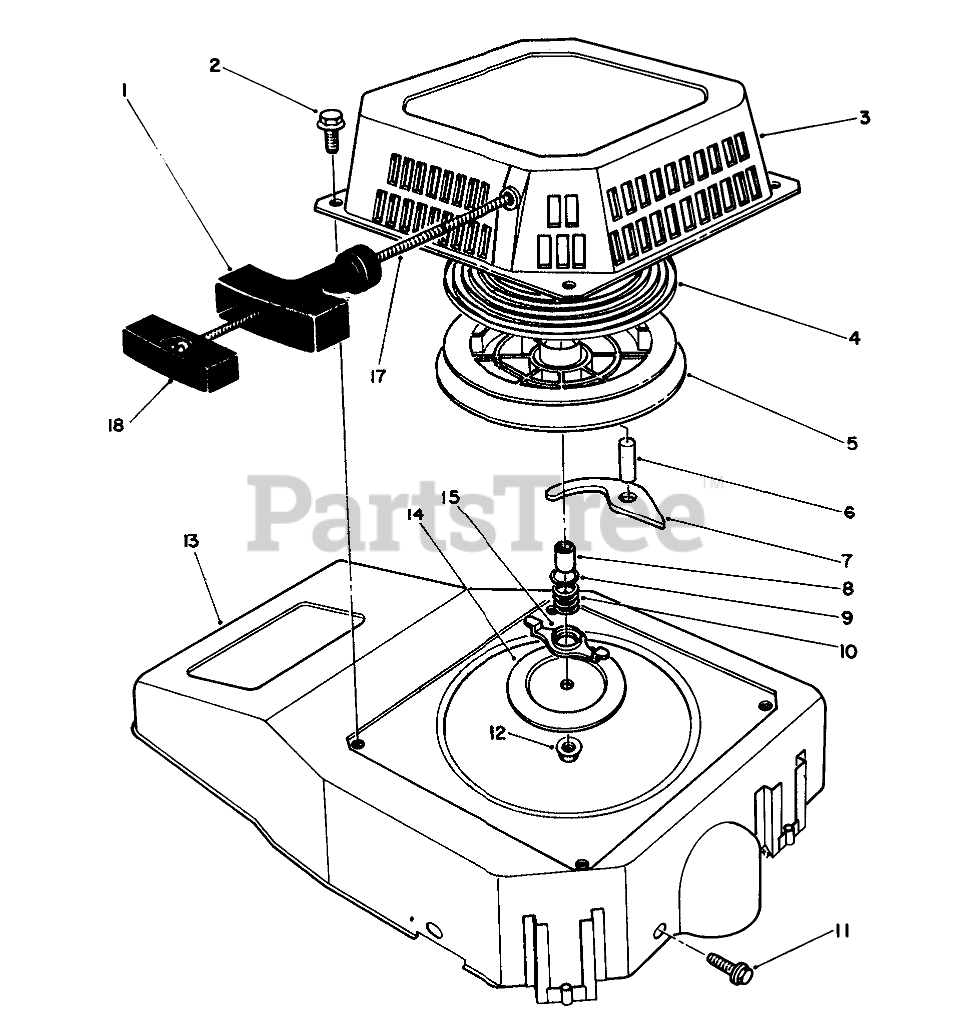

RECOIL ASSEMBLY (ENGINE MODEL NO. VMJ8) Parts Diagram

  • Title
1

Toro 81-4000

HANDLE

$28.99

$

Usually ships in 3-6 days

0

2

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, Qty 5

0

3

Toro 81-3970

Case-Recoil

$

$

Not available

4

Toro 81-4010

SPRING

$72.99

$

Usually ships in 3-6 days

0

5

$96.99

$

Usually ships in 3-6 days

0

6

$

$

Not available

7

$

$

Not available

8

Toro 81-4050

Spacer

$

$

Not available

9

Toro 81-4060

WASHER

$

$

Not available

10

Toro 81-4070

Spring-Friction

$

$

Not available

11

$

$

Not available

12

$

$

Not available

13

Toro 81-3960

SHROUD

$297.99

$

Usually ships in 3-6 days

0

14

Toro 81-4090

PLATE

$

$

Not available

15

Toro 81-4080

Guide-Paw

$

$

Not available

17

Toro 81-1270

ROPE-STARTER
(Superseded to 613773)

$34.99

$

Usually ships in 3-6 days

0

18

Toro 81-4960

RETAINER HANDLE

$

$

Not available

Toro 81-3270

Recoil Starter Assembly (Incl. Ref. #1, 3-10, 12 & 14-18)

$

$

Not available
