26622 C - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

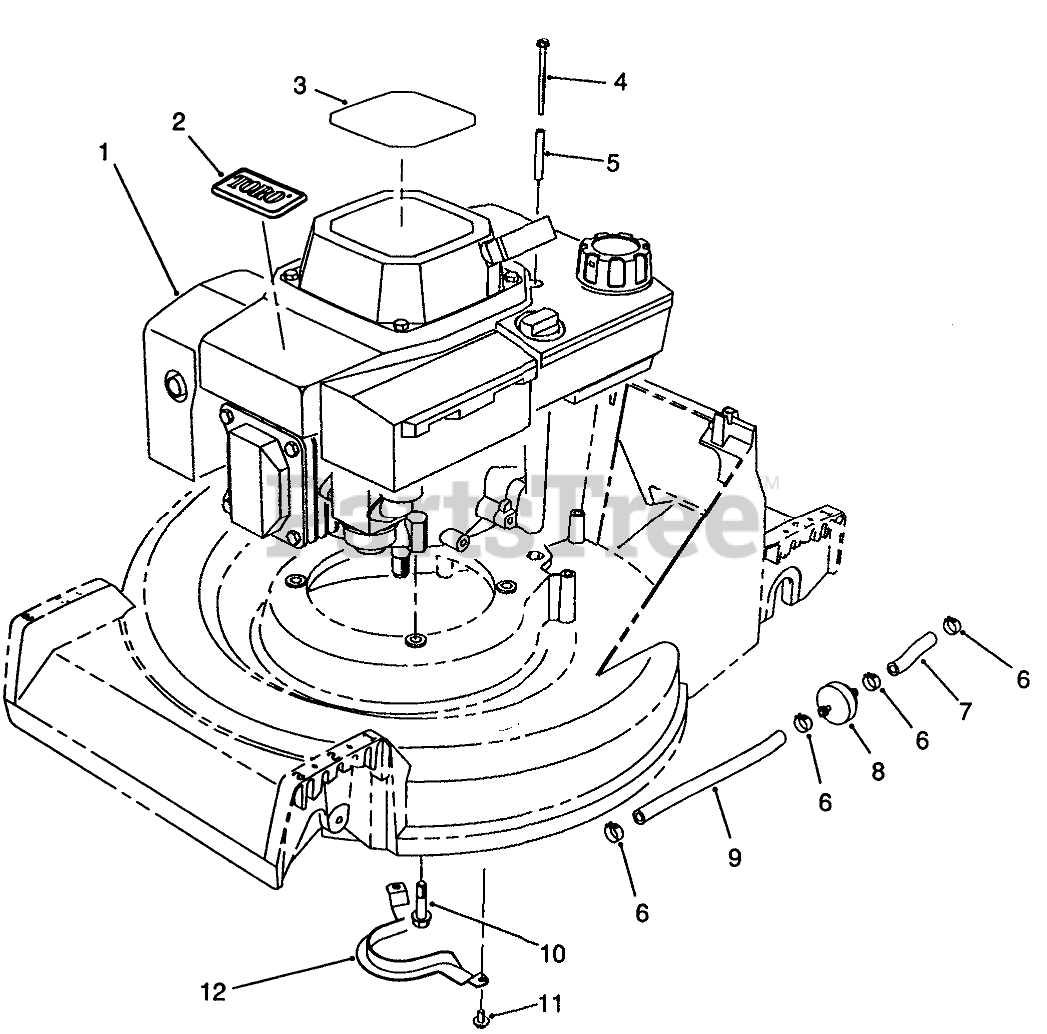

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 72-4141

ENGINE ASSY BBC OHV SU

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

3

Toro 57-3120

DECAL-HV INT'L

$

$

Not available

4

Toro 56-6610

THRD FORMING SCREW

$5.49

$

Usually ships in 3-6 days

0

5

Toro 57-3830

TUBULAR SPACER

$5.99

$

Usually ships in 3-6 days

0

6

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 8

0

7

Toro 51-3211

LINE-GAS

$7.49

$

In Stock, only 3 left!

0

8

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 6

0

9

Toro 51-3214

HOSE-FUEL

$5.49

$

In Stock, only 2 left!

0

10

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

11

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

12

Toro 66-0570

Guide-Belt
(Superseded to 66-0570-03)

$13.99

$

In Stock, only 2 left!

0

Toro 56-6680

Drain Tube
(Superseded to 75-9850)

$

$

Not available
