26620 B - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) BLADE ASSEMBLY Parts Diagram

Walk-Behind Mower

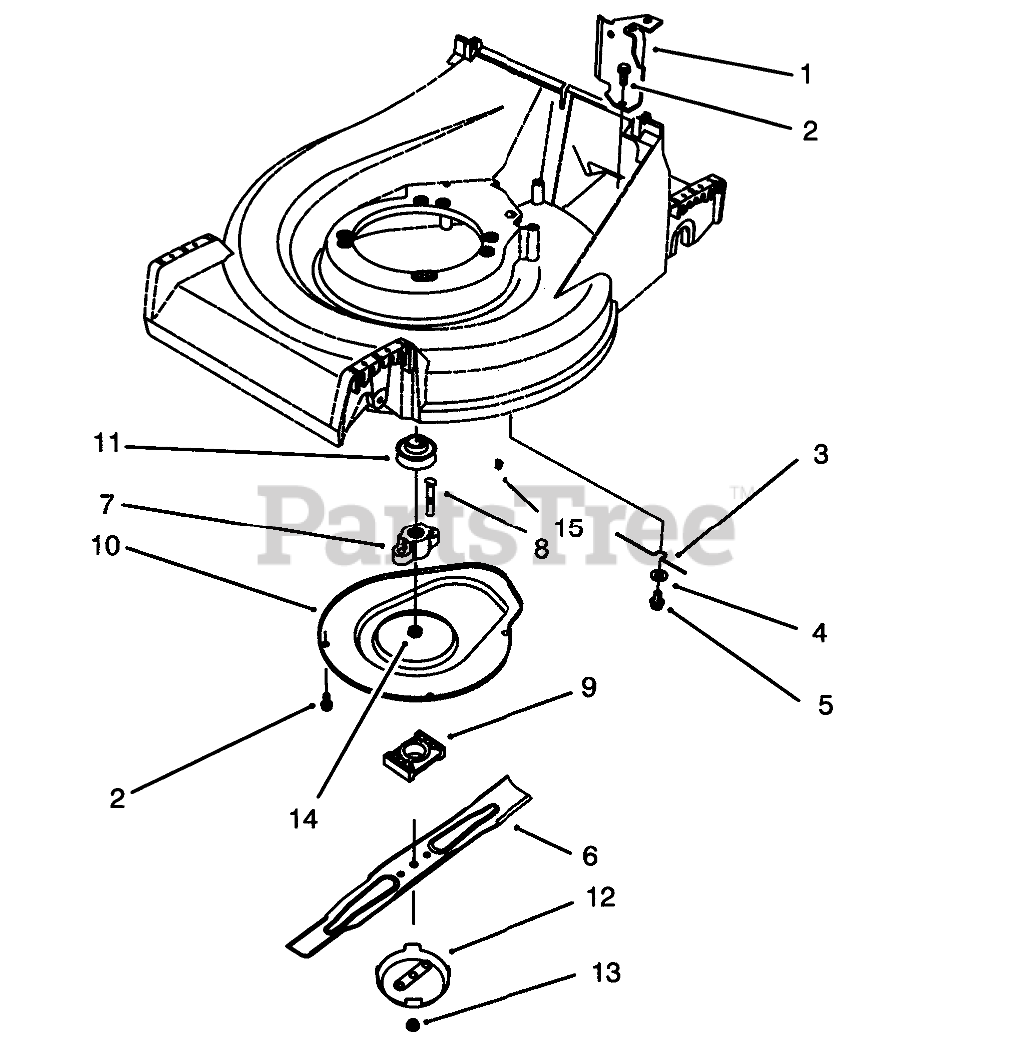

BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 66-0030

Bracket-Cable Support
(Superseded to 66-0030-03)

$

$

Not available

2

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

3

Toro 66-0620

RETAINER-BELT

$

$

Not available

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

6

Toro 62-7700

Key
(Superseded to 62-7700-03)

$38.99

$

In Stock, Qty 11

0

7

Toro 62-5920

HUB

$

$

Not available

8

Toro 42-3190

BOLT-BLADE

$12.99

$

In Stock, Qty 14

0

9

Toro 62-4280

SPACER-BLADE
(Superseded to 107-4275)

$23.99

$

Usually ships in 3-6 days

0

10

Toro 65-5200

Cover
(Superseded to 65-5200-03)

$

$

Not available

11

Toro 62-7560

PULLEY

$46.99

$

In Stock, only 1 left!

0

12

Toro 80-2770

CUP-SCALP, ANTI

$16.99

$

Usually ships in 3-6 days

0

13

Toro 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

14

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

15

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

Toro 66-0680

DECAL FRENCH REGUL.

Note: Not illustrated

$

$

Not available
