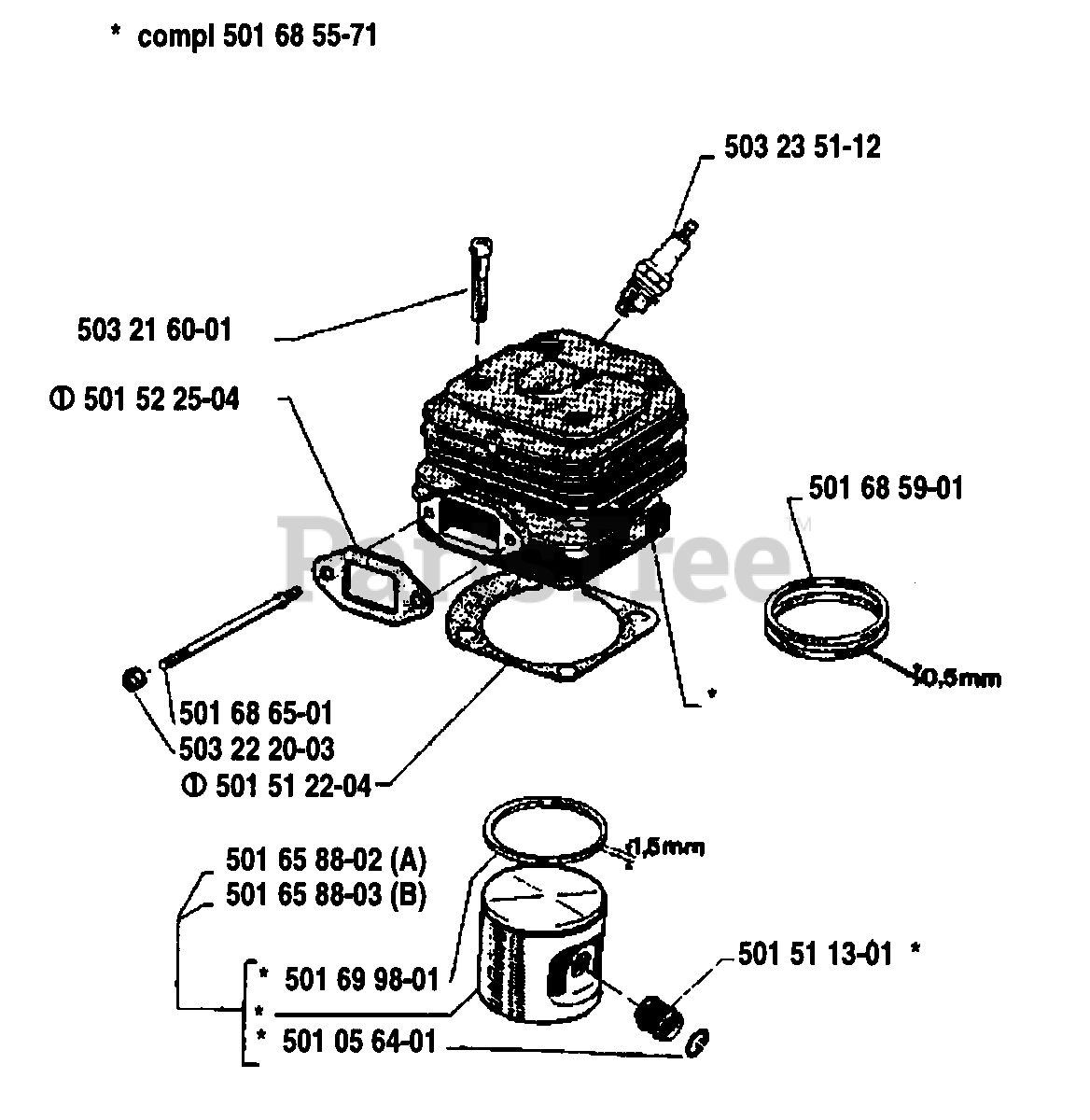

266 - Husqvarna Chainsaw (1989-02) Piston/Cylinder Parts Diagram

Chainsaw

Piston/Cylinder Parts Diagram

  • Title

501685571

Husqvarna 501685571

CYLINDER W/PISTON

$

$

Not available

503216001

Husqvarna 503216001

SCREW MC6S 1/4''UNCX25
(Superseded to 503216025)

$4.99

$

Usually ships in 3-10 days

0

501522504

Husqvarna 501522504

GASKET SILENCER

$5.99

$

In Stock, only 1 left!

0

503235112

Husqvarna 503235112

BPMR6A NGK SPARK PLUG

$3.99

$

In Stock, Qty 11

0

501685901

Husqvarna 501685901

PISTON RING

$

$

Not available

501686501

Husqvarna 501686501

STUD M5/M6

$

$

Not available

503222003

Husqvarna 503222003

STOVER NUT M5
(Superseded to 503222302)

$

$

Not available

501512204

Husqvarna 501512204

GASKET

$5.99

$

In Stock, Qty 9

0

501658802

Husqvarna 501658802

PISTON CPL A
(Superseded to 501659403)

$

$

Not available

501658803

Husqvarna 501658803

PISTON CPL B
(Superseded to 501659403)

$

$

Not available

501699801

Husqvarna 501699801

PISTON RING
(Superseded to 503289017)

$31.99

$

In Stock, only 1 left!

0

501056401

Husqvarna 501056401

RING
(Superseded to 737431200)

$7.49

$

Usually ships in 3-10 days

0

501511301

Husqvarna 501511301

NEEDLE BEARING
(Superseded to 577572401)

$21.99

$

In Stock, only 1 left!

0
