266 - Husqvarna Chainsaw (1984-08) Chain Brake Assembly Parts Diagram

Chainsaw

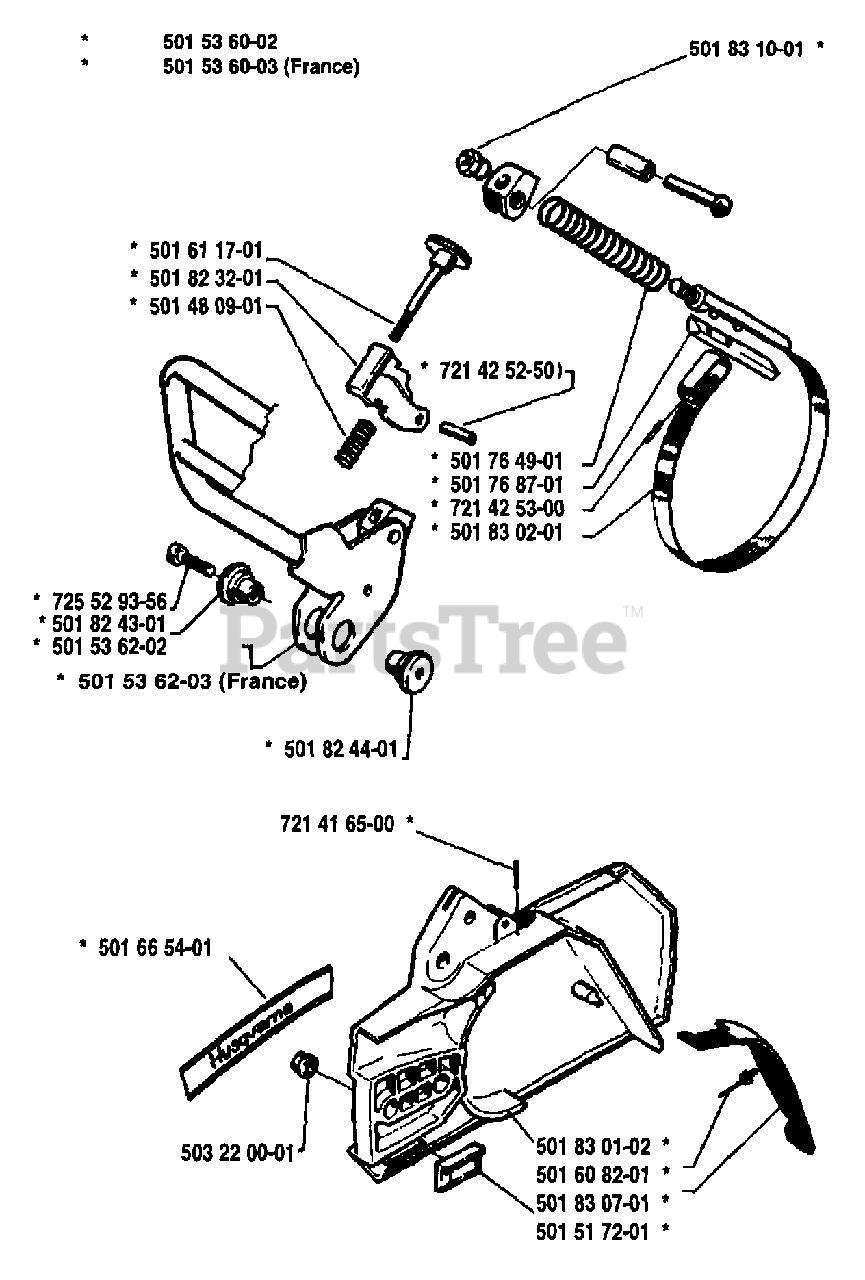

Chain Brake Assembly Parts Diagram

  • Title
501536002

Husqvarna 501536002

CHAINBRAKE
(Superseded to 503736601)

$136.99

$

Usually ships in 3-10 days

0

$

$

Currently unavailable

501611701

$

$

Not available

501823201

$

$

Not available

501480901

$

$

Not available

721425250

Husqvarna 721425250

SPIRAL PIN 4X12

$3.49

$

In Stock, only 1 left!

0

501764901

Husqvarna 501764901

BRAKE SPRING
(Superseded to 503151201)

$

$

Not available

501768701

Husqvarna 501768701

SPRING GUIDE NLA

$

$

Not available

721425300

Husqvarna 721425300

SPRING PIN 4X14 NLA

$

$

Not available

501830201

Husqvarna 501830201

BRAKE BAND NLA

$

$

Not available

725529356

Husqvarna 725529356

SCREW MC6S 4X16

$5.99

$

In Stock, only 2 left!

0

501824301

Husqvarna 501824301

PIVOT SLEEVE NLA

$

$

Not available

501536202

Husqvarna 501536202

HAND GUARD NLA

$

$

Not available

501536203

Husqvarna 501536203

HAND GUARD NLA

$

$

Not available

501824401

Husqvarna 501824401

PIVOT SLEEVE NLA

$

$

Not available

721416500

Husqvarna 721416500

SPRING PIN 2X10

$

$

Not available

$

$

Currently unavailable

503220001

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

501830102

Husqvarna 501830102

CLUTCH COVER
(Superseded to 501830103)

$

$

Not available

501608201

$2.49

$

Usually ships in 3-10 days

0

$

$

Currently unavailable

501517201

Husqvarna 501517201

CHAIN GUIDE

$8.99

$

In Stock, only 4 left!

0

501831001

$

$

Not available
