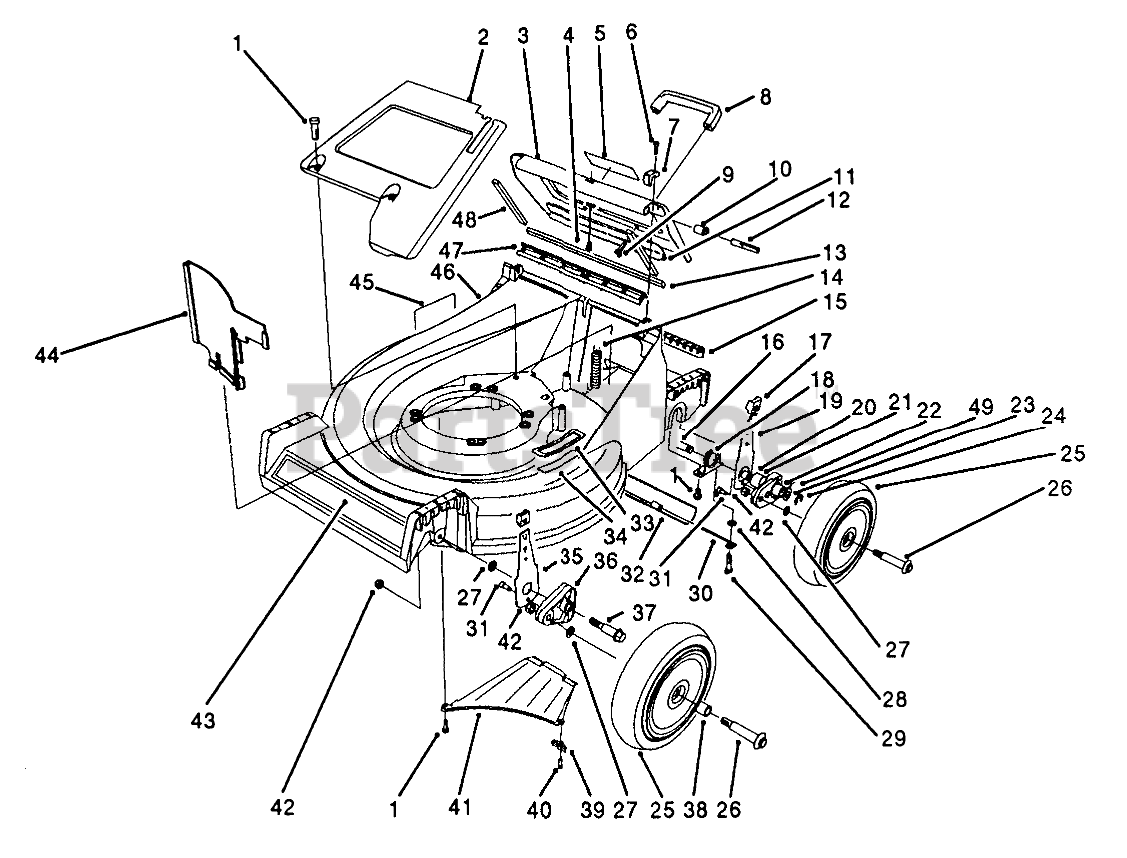

26562 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 65-5660

PaneI-Screen
(Superseded to 65-5660-03)

$54.99

$

Usually ships in 3-6 days

0

3

Toro 13-2189

Door-Discharge (Incl. Ref. #5, 11, 13, & 48)

$

$

Not available

4

Toro 65-5370

DOOR CABLE

$18.99

$

In Stock, only 2 left!

0

5

Toro 63-9050

DECAL - WARNING

$

$

Not available

6

Toro 65-5210

SCREW-HSH

$

$

Not available

7

Toro 65-5140

HINGE CLAMP

$

$

Not available

8

Toro 65-5100

HANDLE-DOOR

$9.99

$

In Stock, only 2 left!

0

9

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

10

Toro 65-5460

DOOR BUSHING

$3.49

$

Usually ships in 3-6 days

0

11

Toro 66-0610

DOOR - BRACE

$

$

Not available

12

Toro 65-5290

HINGE PIN

$

$

Not available

13

Toro 65-5490

DOOR END SEAL

$33.99

$

Usually ships in 3-6 days

0

14

Toro 65-5360

EXTENSION-SPRING

$27.99

$

Usually ships in 3-6 days

0

15

Toro 65-5150

ACCESS COVER

$

$

Not available

16

Toro 66-0530

SHAFT - AXLE

$62.99

$

Usually ships in 3-6 days

0

17

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

18

Toro 66-0360

CAP-END

$9.99

$

Usually ships in 3-6 days

0

19

Toro 65-5440

SPRING ARM ASM

$27.99

$

Usually ships in 3-6 days

0

20

Toro 70-9760

BUSHING

$4.99

$

In Stock, Qty 20+

0

21

Toro 65-5043

Pivot Arm Ass-y (Incl. Ref. #20, 22 & 49)

$

$

Not available

22

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

23

Toro 65-4730

WASHER-ARM, PIVOT

$2.49

$

In Stock, Qty 20+

0

24

Toro 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 20+

0

25

Toro 11-9509

Wheel & Tire Ass-y (Incl. Ref. #38)
(Superseded to 51-2751)

$34.99

$

In Stock, only 4 left!

0

26

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 7

0

27

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

28

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

30

Toro 76-1980

SHIELD HANGER

$

$

Not available

31

Toro 65-5220

SCREW-HSH, THREAD FORMING

$3.99

$

Usually ships in 3-6 days

0

32

Toro 66-0520

SHIELD - TRAILING

$

$

Not available

33

Toro 66-0110

STEP PAD

$

$

Not available

34

Toro 46-7370

STEP PAD DECAL

$27.99

$

Usually ships in 3-6 days

0

35

Toro 66-0540

FRONT SPRING ARM ASM

$19.99

$

Usually ships in 3-6 days

0

36

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, Qty 6

0

37

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 15

0

38

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

39

Toro 66-0640

Bracket-Discharge

$

$

Not available

40

Toro 65-5221

SCREW-HWHTF

$2.49

$

Usually ships in 3-6 days

0

41

Toro 65-5010

Ramp Discharge
(Superseded to 65-5010-03)

$

$

Not available

42

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

43

Toro 66-0470

DECAL - DECK

$

$

Not available

44

Toro 66-0020

PANEL-VERTICAL

$

$

Not available

45

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

46

Toro 13-4689

Housing Assembly (Incl. Ref. #29, 33, 34, & 45)

$

$

Not available

47

Toro 65-5160

DOOR SEAL

$

$

Not available

48

Toro 65-5480

DOOR SIDE SEAL

$

$

Not available

49

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!
