26562 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

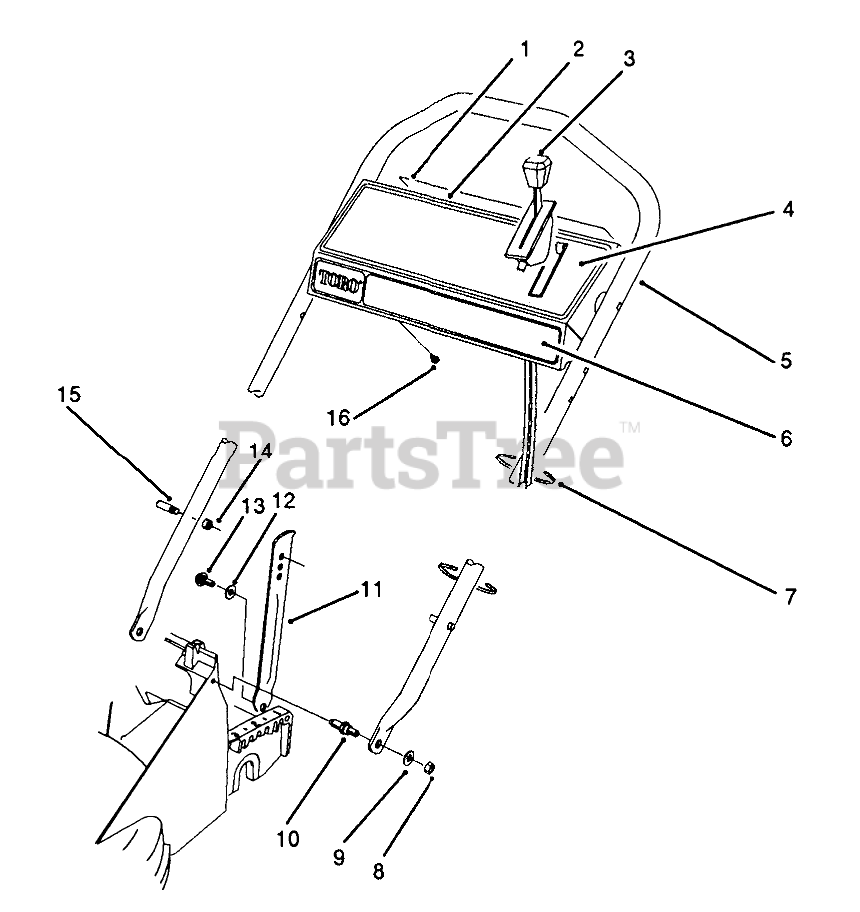

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 63-9060

DECAL-PANEL, DANGER

$

$

Not available

2

Toro 13-9809

Panel-Control (Incl. Ref. #1)

$

$

Not available

3

Toro 66-0236

THROTTLE CONTROL

$131.99

$

Usually ships in 3-6 days

0

4

Toro 76-0750

DECAL - INSTRUCTION

$

$

Not available

5

Toro 66-0320

HANDLE

$

$

Not available

6

Toro 66-1770

DECAL - TORO PANEL

$

$

Not available

7

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 66-0450

SCREW - SHOULDER STUD

$

$

Not available

11

Toro 65-5730

HANDLE LATCH

$

$

Not available

12

Toro 256-313

NYLON WASHER

$

$

Not available

13

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

14

Toro 49-2750

HANDLE PIN

$36.99

$

Usually ships in 3-6 days

0

15

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

16

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
