26562 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

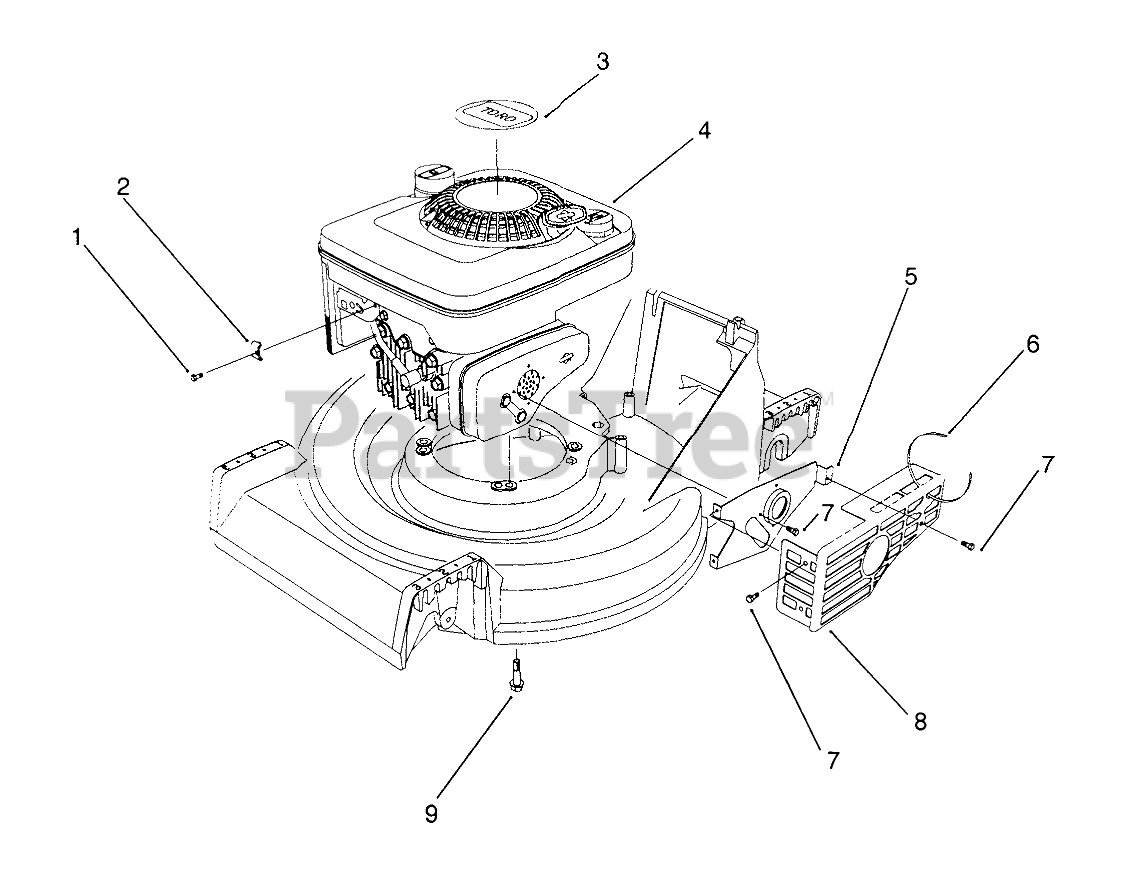

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 2210-313

Screw
(Superseded to 86-7990)

$3.49

$

Usually ships in 3-6 days

0

2

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

3

Toro 75-9400

DECAL - ENGINE

$

$

Not available

4

Engine-Briggs and Stratton, 125K02-0189-E1

$

$

Not available

5

Toro 2210-314

MUFFLER BRKT F/W

$

$

Not available

6

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

7

Toro 2210-173

SCREW W/ENGINE

$

$

Not available

8

Toro 2210-315

MUFFLER GUARD F/W

$

$

Not available

9

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0
