26551 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

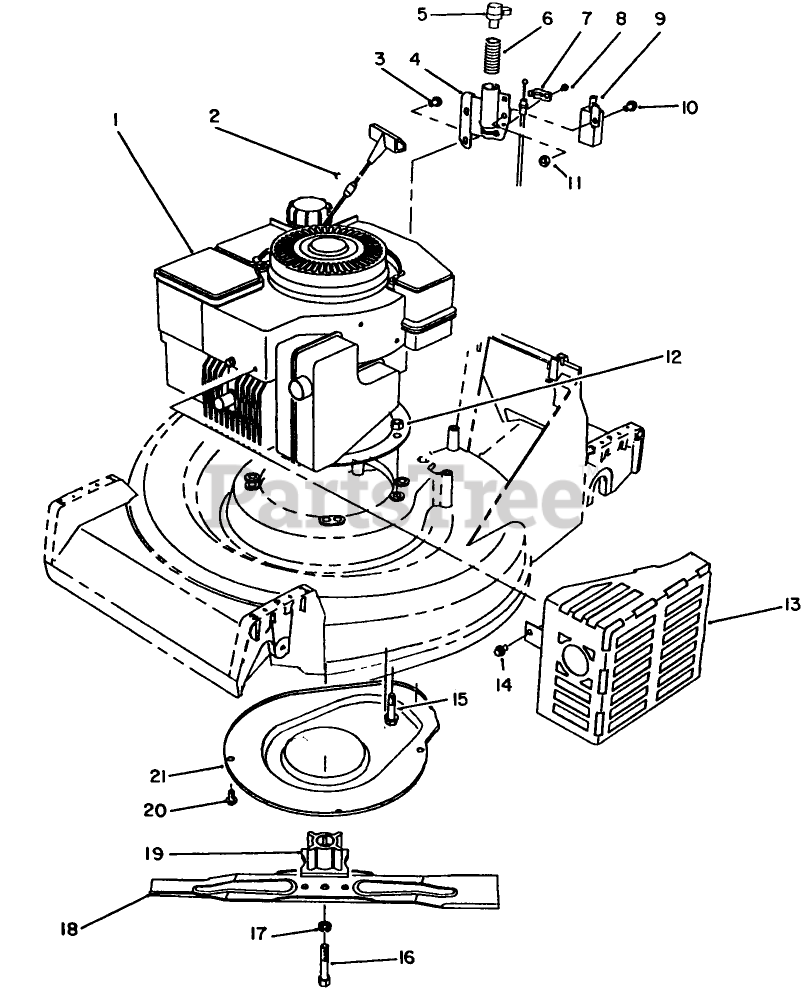

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Engine-Tecumseh Model No. TVS840-8014B

$

$

Not available

2

Toro 3290-443

STAPLE

$

$

Not available

3

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Toro 70-7740

TUBE WA

$

$

Not available

5

Toro 47-7350

BRAKE PAD/PLUNGER ASM

$

$

Not available

6

Toro 46-9130

COMP SPRING

$25.99

$

Usually ships in 3-6 days

0

7

Toro 46-6530

CABLE CLAMP

$

$

Not available

8

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

9

Toro 47-6520

PUSH BUTTON SWITCH

$

$

Not available

10

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

13

Toro 70-7710

HEAT SHIELD WA

$

$

Not available

14

Toro 2210-250

SCREW-HH

$

$

Not available

15

Toro 3211-5

SCREW-HH

$3.49

$

In Stock, Qty 5

0

16

Toro 26-0670

SCREW-BLADE

$

$

Not available

17

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

18

Toro 62-7700

Key
(Superseded to 62-7700-03)

$38.99

$

In Stock, Qty 11

0

19

Toro 62-7540

BLADE RETAINER

$98.99

$

In Stock, only 1 left!

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 65-5200

Cover
(Superseded to 65-5200-03)

$

$

Not available
