2651 (87485) - Snapper 26" Rear-Engine Riding Mower, 5hp Snow/Dozer Plow Accessory Parts Diagram

26" Rear-Engine Riding Mower, 5hp

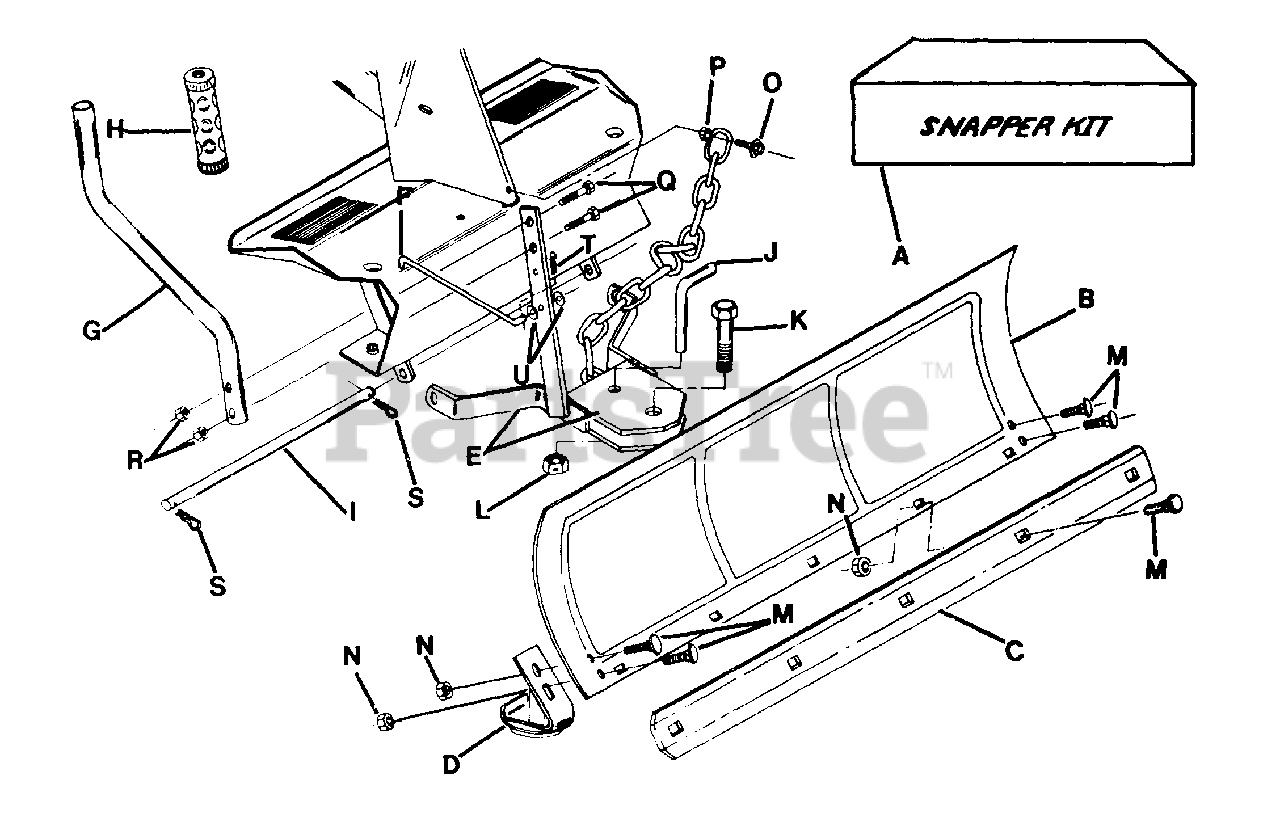

Snow/Dozer Plow Accessory Parts Diagram

  • Title
A

Snapper 7060959

KIT, RIDER SNOW PLOW

Note: Was 60294 (Includes B thru U)

$

$

Currently unavailable

B

Snapper 7047727

BLADE, SNOW

$

$

Currently unavailable

C

Snapper 7037733

SCRAPPER
(Superseded to 7037733YP)

$87.99

$

Usually ships in 2-12 days

0

D

Snapper 7040445

SLIDE, BLADE
(Superseded to 7040445YP)

$84.99

$

In Stock, only 2 left!

0

E

Snapper 7047351

BRACKET, BLADE LIFT (STRUCTURE)
(Superseded to 7047351YP)

$387.99

$

Usually ships in 2-12 days

0

F

$

$

Currently unavailable

G

Snapper 7057084

HANDLE
(Superseded to 7057084YP)

$136.99

$

Usually ships in 2-12 days

0

H

Snapper 7011870

GRIP, HANDLE
(Superseded to 1726317SM)

$8.49

$

In Stock, only 1 left!

0

I

Snapper 7021153

PIN, HOLDING
(Superseded to 7021153YP)

$21.99

$

Usually ships in 2-12 days

0

J

Snapper 7031002

PIN, 'L'
(Superseded to 7031002YP)

$20.99

$

Usually ships in 2-12 days

0

K

Snapper 7090017

SCREW, HEX HEAD CAP 1/2-20x2-3/4
(Superseded to 7090017YP)

$3.49

$

Usually ships in 2-12 days

0

L

Snapper 7090393

NUT, 1/2-20 HEX LOCK
(Superseded to 7090393YP)

$3.49

$

Usually ships in 2-12 days

0

M

Snapper 7091923

BOLT, CARRIAGE 3/8-16x3/4
(Superseded to 7091923SM)

Note: Was 90136

$3.49

$

Usually ships in 2-12 days

0

N

Snapper 7090499

NUT, 3/8-16 HEX LOCK
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

O

Snapper 7090369

SCREW, SELF-TAPPING 5/16-18x1
(Superseded to 7091841SM)

$3.49

$

Usually ships in 2-12 days

0

P

Snapper 7091511

NUT,, 5/16-18 HEX
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

Q

Snapper 7090161

SCREW, HEX HEAD CAP 3/8-24x1-3/4
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

R

Snapper 7090289

NUT, 3/8-24 HEX LOCK
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

S

Snapper 7011714

PIN, HAIR
(Superseded to 7011714YP)

$4.49

$

Usually ships in 2-12 days

0

T

Snapper 7091598

COTTER-PIN 1/8 x 3/4
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

U

Snapper 7090188

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

Usually ships in 2-12 days

0
