2650 - Lawn-Boy 26" Snow Thrower (SN: 100000001 - 199999999) (1971) MODELS 2680, 2650 SNOW BLOWER PARTS LIST Parts Diagram

26" Snow Thrower

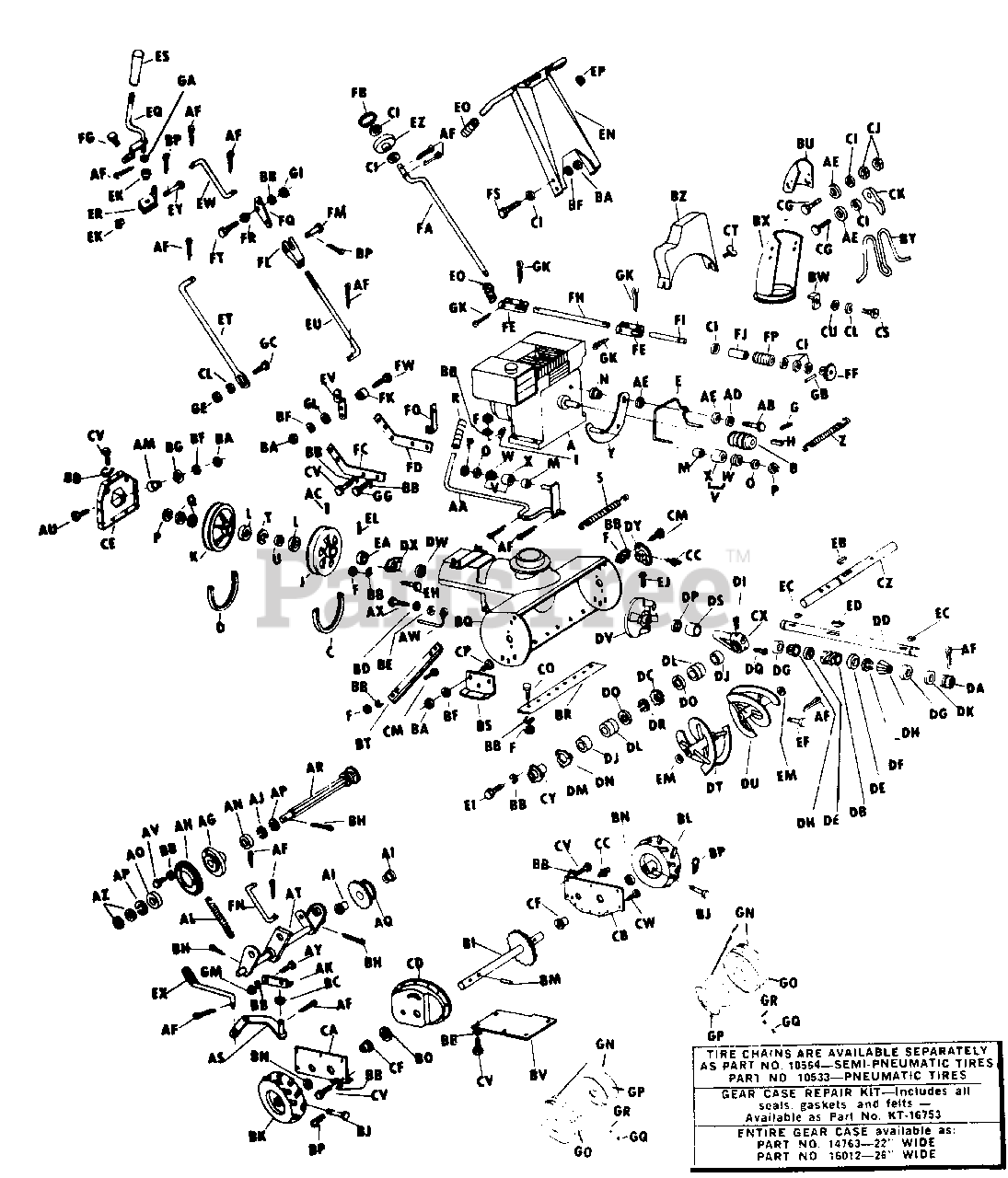

MODELS 2680, 2650 SNOW BLOWER PARTS LIST Parts Diagram

  • Title

A

Lawn-Boy 13082

Engine-5 H.P. B&S Model 130202, Type 0196-02

$

$

Currently unavailable

Lawn-Boy 17589

Engine-8 H.P. B&S Model 190402, Type 0171-01

$

$

Currently unavailable

B

Lawn-Boy 16014

Engine Pulley-6, 7, 8 H.P.

$

$

Currently unavailable

Lawn-Boy 14788

Engine Pulley-5 H.P.
(Superseded to 704385)

$261.99

$

Usually ships in 3-6 days

0

C

Lawn-Boy 14790

V-Belt Auger Drive-5 H.P.
(Superseded to 703621)

$18.99

$

Usually ships in 3-6 days

0

Lawn-Boy 16386

V-Belt Auger Drive, 6, 7, 8 H.P.
(Superseded to 703632)

$24.99

$

Usually ships in 3-6 days

0

D

Lawn-Boy 16366

V-Belt, Traction Drive, 5 H.P.
(Superseded to 704415)

$

$

Not available

Lawn-Boy 16146

V-Belt, Traction Drive, 6, 7, 8 H.P.
(Superseded to 703627)

$33.99

$

Usually ships in 3-6 days

0

E

Lawn-Boy 14791

Belt Finger-5 H.P.
(Superseded to 741289)

$

$

Not available

Lawn-Boy 16013

Belt Finger-6, 7, 8 H.P.
(Superseded to 741290)

$

$

Not available

F

5/16-18 Hex Nut-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

G

5/16-18 x 5/16 Setscrew

Note: Common Hardware. Purchase Locally

$

$

Not available

H

1/4 x 1/4 x 1 3/4 Key-6, 7, 8 H.P.

Note: Common Hardware. Purchase Locally

$

$

Not available

3/16 x 3/16 x 2 Key-5 H.P.

Note: Common Hardware. Purchase Locally

$

$

Not available

I

5/16 Flatwasher-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

J

Lawn-Boy 14733

Pulley-Impeller Drive

$

$

Not available

K

Lawn-Boy 14789

Pulley-Traction Drive

$

$

Not available

L

Lawn-Boy 11080

Bearing
(Superseded to 109842)

$31.99

$

In Stock, only 3 left!

0

M

Lawn-Boy 10471

Bushing
(Superseded to 703367)

$

$

Not available

N

Lawn-Boy 14792

Pivot Bushing
(Superseded to 704387)

$

$

Not available

O

Lawn-Boy 10474

Washer
(Superseded to 700812)

$

$

Not available

P

Lawn-Boy 1042

Snap Ring
(Superseded to 700097)

$1.49

$

In Stock, only 1 left!

0

Q

Lawn-Boy 1230

Washer

$

$

Not available

R

Lawn-Boy 10542

Grip
(Superseded to 704189)

$

$

Not available

S

Lawn-Boy 14952

Spring
(Superseded to 703624)

$98.99

$

Usually ships in 3-6 days

0

T

Lawn-Boy 4637

Snap Ring
(Superseded to 32120-62)

$4.99

$

In Stock, Qty 7

0

U

Lawn-Boy 14930

Spacer

$

$

Not available

V

Lawn-Boy 10532

Idler and Bearing Assembly
(Superseded to 742687)

$

$

Not available

W

Lawn-Boy 10473

Idler
(Superseded to 742687)

$

$

Not available

X

Lawn-Boy 10472

Bearing
(Superseded to 704179)

$

$

Not available

Y

Lawn-Boy 14744

Idler Arm Assembly

$

$

Not available

Z

Lawn-Boy 9087

Spring
(Superseded to 703329)

$

$

Not available

AA

Lawn-Boy 14888

Idler Arm Assembly

$

$

Not available

AB

1/2-20 x 1/2 Hex Hd. Capscrew-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

AC

3/8-16 Socket Setscrew

Note: Common Hardware. Purchase Locally

$

$

Not available

AD

1/2 Spring Lockwasher

Note: Common Hardware. Purchase Locally

$

$

Not available

AE

1/2 SAE Flatwasher-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

AF

1/8 x 3/4 Cotter Pin-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

AG

Lawn-Boy 14730

Friction Wheel Hub

$

$

Not available

AH

Lawn-Boy 14806

Friction Wheel Roller
(Superseded to 741316)

$

$

Not available

AI

Lawn-Boy 11547

Bushing
(Superseded to 703373)

$14.99

$

Usually ships in 3-6 days

0

AJ

Lawn-Boy 11143

Snap Ring

$

$

Not available

AK

Lawn-Boy 14752

Shifter Slide
(Superseded to 704377)

$

$

Not available

AL

Lawn-Boy 11707

Spring
(Superseded to 703377)

$31.99

$

In Stock, only 1 left!

0

AM

Lawn-Boy 6190

Pivot Bushing
(Superseded to 703312)

$

$

Not available

AN

Lawn-Boy 11081

Bearing
(Superseded to 703372)

$

$

Not available

AO

Lawn-Boy 1793

Bearing
(Superseded to 741022)

$

$

Not available

AP

Lawn-Boy 1764

Snap Ring
(Superseded to 32120-84)

$0.99

$

Usually ships in 3-6 days

0

AQ

Lawn-Boy 14741

Countershaft Gear Assembly-w/Bushings
(Superseded to 704375)

$

$

Not available

AR

Lawn-Boy 14807

Traction Drive Shaft Assembly
(Superseded to 742127)

$

$

Not available

AS

Lawn-Boy 14747

Bellcrank Assembly
(Superseded to 741268)

$

$

Not available

AT

Lawn-Boy 14809

Traction Drive Support Arm Assembly

$

$

Currently unavailable

AU

3/8-16 x 1 3/4 Hex Hd. Capscrew-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

AV

5/16-18 x 1/2 Hex Hd. Capscrew-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

AW

Lawn-Boy 12062

Belt Finger

$

$

Not available

AX

1/4-20 x 1/2 Hex Capscrew-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

AY

Lawn-Boy 7788

5/16-18 x 1 1/4 Wafer Hd. Bolt

$

$

Not available

AZ

Lawn-Boy 2551

Washer
(Superseded to 700317)

$6.49

$

In Stock, only 1 left!

0

BA

3/8 Hex Nut-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

BB

5/16 Spring Lockwasher-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

BC

5/16 SAE Flatwasher

Note: Common Hardware. Purchase Locally

$

$

Not available

BD

1/4 Spring Lockwasher-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

BE

1/4 Flatwasher

Note: Common Hardware. Purchase Locally

$

$

Not available

BF

3/8 Spring Lockwasher-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

BG

Lawn-Boy 6694

Washer
(Superseded to 700852)

$

$

Not available

BH

1/8 x 1 Cotter Pin-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

BI

Lawn-Boy 14742

Axle Assembly

$

$

Currently unavailable

BJ

Lawn-Boy 17616

Clevis Pin

$

$

Not available

BK

Lawn-Boy 14945

Tire & Wheel Ass'y.-R.H.-Semi-pneumatic

$

$

Currently unavailable

BL

Lawn-Boy 14946

Tire & Wheel Ass'y.-L.H.-Semi-pneumatic

$

$

Not available

BM

1/8 x 1-1/4 Roll Pin

Note: Common Hardware. Purchase Locally

$

$

Not available

BN

Lawn-Boy 1230

Washer

$

$

Not available

BO

Lawn-Boy 1020

Washer
(Superseded to 700495)

$

$

Not available

BP

Lawn-Boy 9678

Spring Clip
(Superseded to 700257)

$

$

Not available

BQ

Lawn-Boy 14786

Main Frame Assembly-5 H.P., 22"

$

$

Currently unavailable

Lawn-Boy 16011

Main Frame Assembly-6, 7, 8 H.P., 26"

$

$

Currently unavailable

Lawn-Boy 17660

Main Frame Assembly-5 H.P., 26"

$

$

Currently unavailable

BR

Lawn-Boy 11584

Scraper Blade-22"

$

$

Not available

Lawn-Boy 10380

Scraper Blade-26"
(Superseded to 700282)

$

$

Not available

BS

Lawn-Boy 13888

Skid
(Superseded to 700285-03)

$69.99

$

Usually ships in 3-6 days

0

BT

Lawn-Boy 10382

Drift Cutter
(Superseded to 700284)

$

$

Not available

BU

Lawn-Boy 10388

Deflector

$

$

Currently unavailable

BV

Lawn-Boy 14916

Inspection Cover
(Superseded to 704391)

$

$

Not available

BW

Lawn-Boy 14726

Chute Clip

$

$

Not available

BX

Lawn-Boy 14735

Chute & Ring Assembly

$

$

Currently unavailable

BY

Lawn-Boy 13008

Chute Guard
(Superseded to 702894)

$

$

Not available

BZ

Lawn-Boy 14921

Belt Guard Assembly
(Superseded to 742132)

$

$

Not available

CA

Lawn-Boy 14714

Frame Assy.-Lower Half-R.H.
(Superseded to 742122)

$

$

Not available

CB

Lawn-Boy 14714

Frame Ass'y.-Lower Half-L.H.
(Superseded to 742122)

$

$

Not available

CC

Lawn-Boy 1102

Grease Fitting
(Superseded to 700119)

$

$

Not available

CD

Lawn-Boy 14899

Gear Case Cover
(Superseded to 704390)

$

$

Not available

CE

Lawn-Boy 14779

Backing Plate Ass'y.

$

$

Not available

CF

Lawn-Boy 14725

Axle Bearing
(Superseded to 703613)

$

$

Not available

CG

Lawn-Boy 10389

3/8-16 x 1 Short Neck Carriage Bolt-Pl.
(Superseded to 703361)

$

$

Not available

CI

3/8 Flatwasher-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

CJ

3/8-16 Hex Jam Nut-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

CK

Lawn-Boy 11668

Wing Nut
(Superseded to 702895)

$

$

Not available

CL

1/4 Spring Lockwasher

Note: Common Hardware. Purchase Locally

$

$

Not available

CM

5/16-18 x 3/4 Hex Hd. Capscrew Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

CO

Lawn-Boy 10888

5/16-18 x 3/4 Wafer Hd. Bolt
(Superseded to 146511)

$

$

Not available

CP

3/8 Carriage Bolt-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

CS

1/4 Hex-20 x 3/4

Note: Common Hardware. Purchase Locally

$

$

Not available

CT

Lawn-Boy 6891

1/4-20 x 1/2 Shoulder Thumb Screw
(Superseded to 703324)

$

$

Not available

CU

1/4 Flatwasher-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

CV

5/16-18 x 3/4 Hex Capscrew-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

CW

Lawn-Boy 10531

#10 x 1/2 Hex Hd. Sheet Metal Screw
(Superseded to 146278)

$

$

Not available

CX

Lawn-Boy 10394

Gear Case

$

$

Currently unavailable

CY

Lawn-Boy 10395

Cover-Gear Case

$

$

Not available

CZ

Lawn-Boy 13100

Shaft-Output-22"
(Superseded to 704325)

$

$

Not available

Lawn-Boy 10396

Shaft-Output-26"
(Superseded to 700431)

$

$

Not available

DA

Lawn-Boy 1014

Adjustment Plug

$

$

Not available

DB

Lawn-Boy 10397

Worm
(Superseded to 700420)

$

$

Not available

DC

Lawn-Boy 10398

Worm Wheel
(Superseded to 700421)

$

$

Not available

DD

Lawn-Boy 14764

Shaft-Auger Input
(Superseded to 704383)

$

$

Not available

DE

Lawn-Boy 6824

Spacer-Worm
(Superseded to 700416)

$

$

Not available

DF

Lawn-Boy 1042

Retaining Ring
(Superseded to 700097)

$1.49

$

In Stock, only 1 left!

0

DG

Lawn-Boy 1044

Bearing Cup
(Superseded to 254-79)

$7.49

$

In Stock, Qty 12

0

DH

Lawn-Boy 1140

Bearing Cone
(Superseded to 254-78)

$13.99

$

In Stock, Qty 17

0

DI

Lawn-Boy 1034

Vent Plug Ass'y.
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

DJ

Lawn-Boy 1054

Seal
(Superseded to 700414)

$11.99

$

In Stock, only 3 left!

0

DK

Lawn-Boy 1057

O-Ring

$

$

Not available

DL

Lawn-Boy 3452

Bearing
(Superseded to 704691)

$36.99

$

Usually ships in 3-6 days

0

DM

Lawn-Boy 6113

Gasket

$

$

Not available

DN

Lawn-Boy 6112

Gsket

$

$

Not available

DO

Lawn-Boy 3453

Washer
(Superseded to 700415)

$5.49

$

Usually ships in 3-6 days

0

DP

Lawn-Boy 1117

Seal
(Superseded to 253-44)

$29.99

$

In Stock, only 1 left!

0

DQ

Lawn-Boy 1104

Pipe Plug
(Superseded to 700412)

$

$

Not available

DR

Lawn-Boy 1043

Snap Ring
(Superseded to 700410)

$

$

Not available

DS

Lawn-Boy 1024

Bearing
(Superseded to 703207)

$

$

Not available

DT

Lawn-Boy 14846

Auger Ass'y.-R.H.-22"

$

$

Currently unavailable

Lawn-Boy 16005

Auger Ass'y.-R.H.-26"
(Superseded to 740061)

$1690.99

$

Usually ships in 3-6 days

0

DU

Lawn-Boy 14847

Auger Assty.-L.H.-22"

$

$

Currently unavailable

Lawn-Boy 16006

Auger Ass'y.-L.H.-26"
(Superseded to 740062)

$1690.99

$

Usually ships in 3-6 days

0

DV

Lawn-Boy 14849

Impeller Assembly
(Superseded to 740011-03)

$

$

Not available

DW

Lawn-Boy 12539

Bearing
(Superseded to 700542)

$

$

Not available

DX

Lawn-Boy 12538

Stamping
(Superseded to 700083)

$5.49

$

Usually ships in 3-6 days

0

DY

Lawn-Boy 14845

Bearing
(Superseded to 700283)

$

$

Not available

EA

Lawn-Boy 1426

Collar-Bearing w/Setscrews
(Superseded to 701658)

$37.99

$

In Stock, only 1 left!

0

EB

1/4 x 7/8 Woodruff Key-H.T

Note: Common Hardware. Purchase Locally

$

$

Not available

EC

3/16 x 5/8 Hypro Key

Note: Common Hardware. Purchase Locally

$

$

Not available

ED

Lawn-Boy 3886

Hypro Key
(Superseded to 703267)

$

$

Not available

EF

Lawn-Boy 10417

Shear Pin
(Superseded to 700280)

$5.49

$

Usually ships in 3-6 days

0

EH

5/16-18 x 3/4 Carriage Bolt-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

EI

5/10-18 x 1 Hex Hd. Capscrew-H.T.

Note: Common Hardware. Purchase Locally

$

$

Not available

EJ

3/8-16 x 1/2 Sq. Hd. Cup Pt. Setscrew-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

EK

Lawn-Boy 16066

Bushing
(Superseded to 702547)

$

$

Not available

EL

1/4-20 x 1/4 Setscrew

Note: Common Hardware. Purchase Locally

$

$

Not available

EM

Lawn-Boy 1088

Washer

$

$

Not available

EN

Lawn-Boy 14813

Handle Bar Assembly

$

$

Currently unavailable

EO

Lawn-Boy 1183

Grip
(Superseded to 701446)

$

$

Not available

EP

Lawn-Boy 12275

Plug Button

$

$

Not available

EQ

Lawn-Boy 14755

Control Lever Assembly

$

$

Not available

ER

Lawn-Boy 14785

Bracket Assembly-w/Bushing

$

$

Not available

ES

Lawn-Boy 16002

Control Knob
(Superseded to 703625)

$

$

Not available

ET

Lawn-Boy 14759

Shifter Rod

$

$

Not available

EU

Lawn-Boy 14758

Control Rod

$

$

Not available

EV

Lawn-Boy 14750

Bell Crank
(Superseded to 704376)

$

$

Not available

EW

Lawn-Boy 14757

Link

$

$

Currently unavailable

EX

Lawn-Boy 14965

Shifter Rod End
(Superseded to 704395)

$

$

Not available

EY

Lawn-Boy 16057

Clevis Pin

$

$

Not available

EZ

Lawn-Boy 11528

Knob
(Superseded to 700189)

$34.99

$

Usually ships in 3-6 days

0

FA

Lawn-Boy 10453

Crank
(Superseded to 703366)

$63.99

$

Usually ships in 3-6 days

0

FB

Lawn-Boy 11529

Plug
(Superseded to 700169)

$

$

Not available

FC

Lawn-Boy 14761

Handle Bracket-R.H.
(Superseded to 704381)

$

$

Not available

FD

Lawn-Boy 14702

Handle Bracket-L.H.

$

$

Currently unavailable

FE

Lawn-Boy 13000

Universal
(Superseded to 700061)

$

$

Not available

FF

Lawn-Boy 11628

Sprocket Assembly

$

$

Currently unavailable

FG

Lawn-Boy 17744

Pivot Pin Ass'y
(Superseded to 742165)

$

$

Not available

FH

Lawn-Boy 14925

Chute Shaft

$

$

Currently unavailable

FI

Lawn-Boy 14926

Sprocket Shaft
(Superseded to 704392)

$

$

Not available

FJ

Lawn-Boy 11139

Spacer
(Superseded to 704219)

$

$

Not available

FK

Lawn-Boy 2044

Pivot Bushing

$

$

Not available

FL

Lawn-Boy 2490

Clevis
(Superseded to 704038)

$

$

Not available

FM

Lawn-Boy 3441

Clevis Pin
(Superseded to 702012)

$

$

Not available

FN

Lawn-Boy 14756

Link

$

$

Not available

FO

Lawn-Boy 14776

Chute Shaft Support
(Superseded to 704384)

$

$

Not available

FP

Lawn-Boy 10445

Spring
(Superseded to 704171)

$

$

Not available

FQ

Lawn-Boy 14955

Bellcrank
(Superseded to 704394)

$

$

Not available

FR

Lawn-Boy 14273

Pivot Bushing
(Superseded to 702546)

$

$

Not available

FS

Lawn-Boy 1144

3/8-16 x 1 Acorn Hd. Bolt-Pl.
(Superseded to 703213)

$

$

Not available

FT

5/16-18 x 1 Hex Hd. Capscrew-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

FW

3/8-16 x 2 1/4 Hex Hd. Capscrew- Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

GA

7/16 SAE Flatwasher-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

GB

Lawn-Boy 16797

1/8 x 1 1/2 Cotter Pin
(Superseded to 704422)

$

$

Not available

GC

1/4-20 x 3/4 Carriage Bolt-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

GE

1/4-20 Hex Nut-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

GG

5/16-18 x 1 Hex Capscrew-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

GI

5/16-18 Hex Nut-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

GK

Lawn-Boy 14895

Special Stainless Steel Cotter Pin
(Superseded to 700170)

$3.49

$

Usually ships in 3-6 days

0

GL

5/16 Flatwasher-Pl.

Note: Common Hardware. Purchase Locally

$

$

Not available

GM

5/16-18 Hex Locknut

Note: Common Hardware. Purchase Locally

$

$

Not available

GN

Lawn-Boy 17735

Wheel & Tire Ass'y.-Pneumatic

$

$

Currently unavailable

GO

Lawn-Boy 10527

Tire-Pneumatic

$

$

Currently unavailable

GP

Lawn-Boy 17734

Wheel-Pneumatic

$

$

Currently unavailable

GQ

Lawn-Boy 3823

Valve Cap
(Superseded to 704061)

$

$

Not available

GR

Lawn-Boy 10631

Valve Stem
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0
