2650 (5900705) - Simplicity Champion 50" Zero-Turn Mower, 26hp Lift Group Parts Diagram

Champion 50" Zero-Turn Mower, 26hp

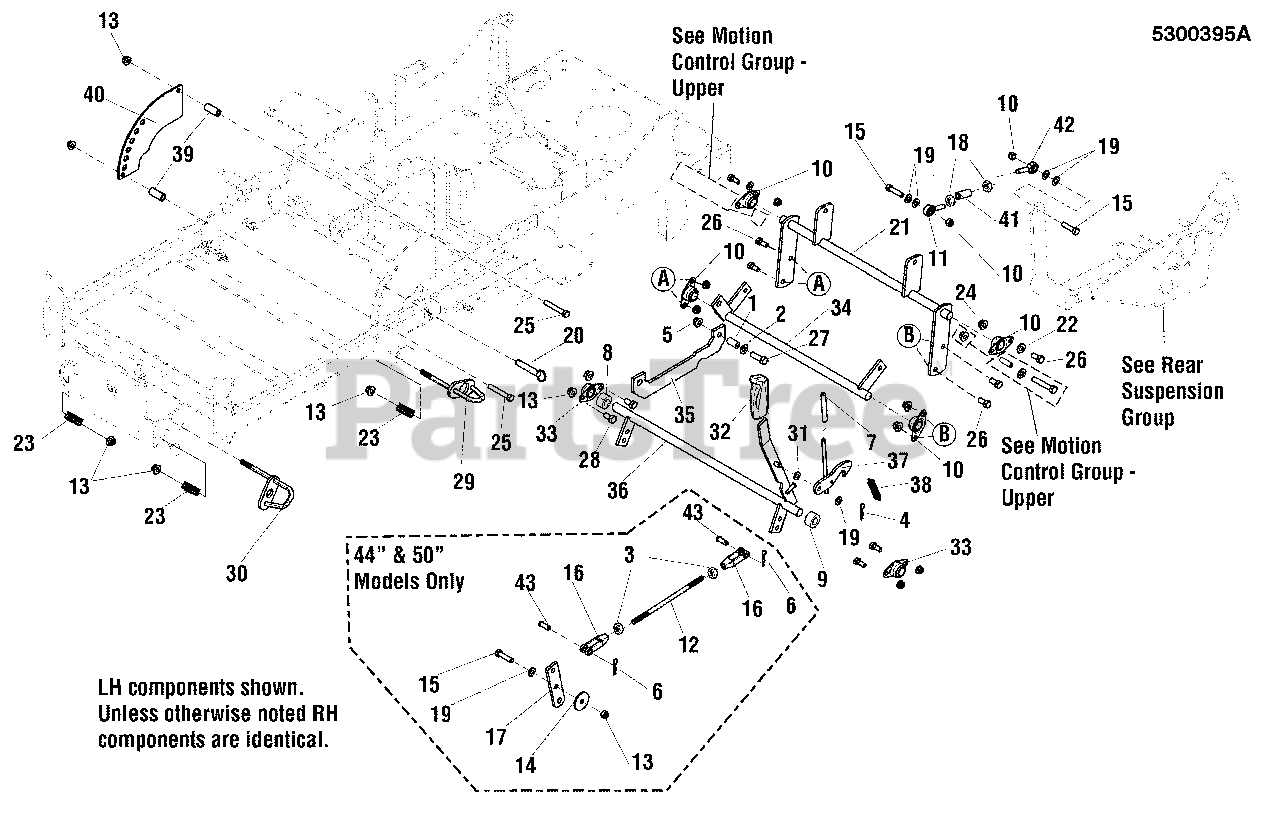

Lift Group Parts Diagram

  • Title

1

Simplicity 5101448

SPACER, .38 X .50 X .38, CZ
(Superseded to 5101448YP)

$7.49

$

Usually ships in 2-12 days

0

2

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

Note: (44" & 50" Models Only)

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 5025203X6

PIN, COTTER, 1/8 X 3/4
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 2 left!

0

5

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 5025201X6

PIN, COTTER, 3/32" X 3/4
(Superseded to 80002736)

Note: (44" & 50" Models Only)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 5023198

COVER, VINYL HANDLE
(Superseded to 5023198SM)

$4.49

$

In Stock, only 2 left!

0

8

Simplicity 5048335

SPACER, .76 X 1.00 X 1.00
(Superseded to 5048335SM)

$7.99

$

Usually ships in 2-12 days

0

9

Simplicity 5046092

SPACER, .76 X 1.00 X .50, CZ
(Superseded to 5046092SM)

$5.99

$

In Stock, only 1 left!

0

10

Simplicity 5100561

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5100561SM)

$14.99

$

In Stock, only 2 left!

0

11

Simplicity 5043500

BALL JOINT
(Superseded to 5043500SM)

$33.99

$

Usually ships in 2-12 days

0

12

Simplicity 5048707

ROD, LEVER CONNECTING, CZ
(Superseded to 5048707SM)

Note: (44" & 50" Models Only)

$16.99

$

In Stock, only 1 left!

0

13

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 5025305

WASHER, .41 X 1.75 X .14
(Superseded to 5025305SM)

$3.99

$

In Stock, only 2 left!

0

15

Simplicity 5025013X12

BOLT, 3/8-16 X 1-1/2 GD5 YZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 5021171

CLEVIS 3/8-24, PLASTIC
(Superseded to 5021171SM)

Note: (44" & 50" Models Only)

$15.99

$

Usually ships in 2-12 days

0

17

Simplicity 5049482C

LINK, ROLLER REVERSE
(Superseded to 5049482CSM)

Note: (44" & 50" Models Only)

$8.49

$

Usually ships in 2-12 days

0

18

Simplicity 5025309

NUT, 3/8-24 HEX JAM
(Superseded to 5025309SM)

$2.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 5100179

HITCH PIN ASSEMBLY, 1/2" X 2.50"
(Superseded to 5100179SM)

$29.99

$

Usually ships in 2-12 days

0

21

Simplicity 5401052C

WELD, COMPENSATOR ASSM. - ORG
(Superseded to 5401052CSM)

$139.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Simplicity 5021102

SPRING-COMP, .594ID X 2.68LG X .080WR
(Superseded to 5021102SM)

$7.49

$

Usually ships in 2-12 days

0

24

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

25

Simplicity 5025013X18

BOLT, 3/8-16 X 2-1/4 GD5 YZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 2 left!

0

26

Simplicity 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

27

Simplicity 5025013X10

BOLT, 3/8-16 X 1-1/4 GD5
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

28

Simplicity 5025013X6

BOLT, 3/8-16 X 3/4 GD5 YZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

29

Simplicity 5400839C

WELD, QUICK RELEASE HANDLE, REAR - ORG.
(Superseded to 5400839CSM)

$17.99

$

Usually ships in 2-12 days

0

30

Simplicity 5400401C

WELD, QUICK RELEASE HANDLE - ORG
(Superseded to 5400401CSM)

$16.99

$

Usually ships in 2-12 days

0

31

Simplicity 5023202

WASHER,WAVE,M10
(Superseded to 5023202SM)

$5.49

$

Usually ships in 2-12 days

0

32

Simplicity 5100171

GRIP, BLACK FLEXIBLE
(Superseded to 5100171SM)

$13.99

$

In Stock, only 2 left!

0

33

Simplicity 5021098

BEARING, BRONZE FLANGE, 3/4
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

34

Simplicity 5401031C

WELD, DECK LIFT HANGER REAR - ORG
(Superseded to 5401031CSM)

$76.99

$

Usually ships in 2-12 days

0

35

Simplicity 5401054C

LINK, DECK LIFT - ORG
(Superseded to 5401054CSM)

$12.99

$

Usually ships in 2-12 days

0

36

Simplicity 5401055C

WELD, DECK HEIGHT SHAFT - ORANGE
(Superseded to 5401055CSM)

$74.99

$

In Stock, only 1 left!

0

37

Simplicity 5048884C

WELD, DECK LOCK
(Superseded to 5048884CSM)

$

$

Not available

38

Simplicity 5020639

SPRING-EXT, .500 OD X 3.50 LG X .058 WR
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

39

Simplicity 5048264

SPACER, .39 X .63 X 1.50, CZ
(Superseded to 5048264SM)

$5.99

$

Usually ships in 2-12 days

0

40

Simplicity 5400370C

PLATE, DECK HEIGHT- INNER -ORG
(Superseded to 5400370CSM)

$15.99

$

Usually ships in 2-12 days

0

41

Simplicity 5100323

SLEEVE, .32 X .63 X 1.50, TAPPED 3/8-24
(Superseded to 5100323SM)

$12.99

$

Usually ships in 2-12 days

0

42

Simplicity 5021124

BALL JOINT, 3/8-24 MALE
(Superseded to 5021124SM)

$37.99

$

Usually ships in 2-12 days

0

43

Simplicity 5025214X8

PIN, CLEVIS, 3/8 X 1, CZ
(Superseded to 5025214X8FS)

Note: (44" & 50" Models Only)

$6.99

$

Usually ships in 2-12 days

0
