2650 (5900705) - Simplicity Champion 50" Zero-Turn Mower, 26hp Control Group Upper Parts Diagram

Champion 50" Zero-Turn Mower, 26hp

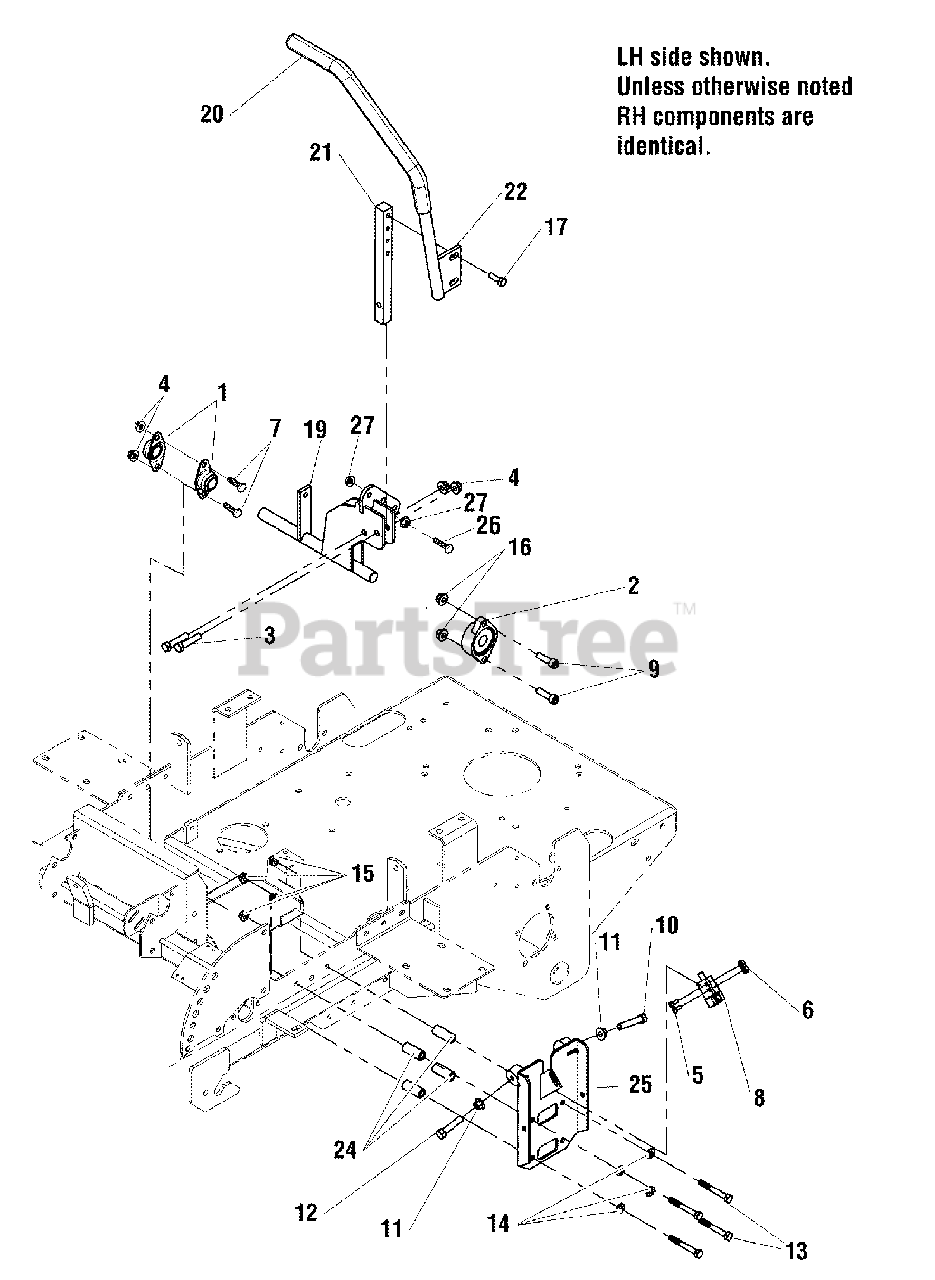

Control Group Upper Parts Diagram

  • Title

1

Simplicity 5021098SM

BEARING, BRONZE FLANGE, 3/4

$13.99

$

In Stock, Qty 5

0

2

Simplicity 5021499SM

BEARING, FLANGE

$55.99

$

In Stock, only 2 left!

0

3

Simplicity 5025013X14SM

BOLT, 3/8-16 X 1-3/4" GD5

$3.99

$

In Stock, only 2 left!

0

4

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 5025179X4SM

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025029SM

NUT, #10-24 HEX

$2.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1" GD5 YZ

$3.99

$

In Stock, only 1 left!

0

8

Simplicity 1717050SM

SWITCH, PLUNGER, N.O./N.C.

$17.99

$

In Stock, Qty 20+

0

9

Simplicity 5025327SM

BOLT, 3/8-16 X 1-1/4 SHCS (SOCKET HEAD)

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025055X16SM

BOLT, 5/16-18 X 2" GD5 TFL

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, Qty 12

0

12

Simplicity 5025055X14SM

BOLT, 5/16-18 X 1-3/4" GD5 TFL

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 5025011X20SM

BOLT, 5/16-18 X 2-1/2" GD5 YZ
(Superseded to 703868)

$4.99

$

In Stock, only 4 left!

0

14

Simplicity 5025155SM

WASHER, 5/16" SAE
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

15

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 5025096SM

NUT, 3/8-16 HEX NYLON LOCK

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1930591SM

SCREW-HEX WZ LOCK FLNG 5/16-18X0.750BLK
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

18

Simplicity 5401020CSM

WELD, CONTROL SHAFT - RH - ORG

Note: (Not Shown)

$65.99

$

Usually ships in 2-12 days

0

19

Simplicity 5401017CSM

WELD, CONTROL SHAFT - LH - ORG

$60.99

$

Usually ships in 2-12 days

0

20

Simplicity 5022068SM

GRIP, FOAM, 3/4" ID, 16" LONG

$11.99

$

Usually ships in 2-12 days

0

21

Simplicity 5047004A

MOUNT, CONTROL ARM - BLK
(Superseded to 5047004SM)

$62.99

$

Usually ships in 2-12 days

0

22

Simplicity 5401096CSM

WELD, HANDLE MOTION CONTROL-LH

$45.99

$

Usually ships in 2-12 days

0

23

Simplicity 5401097CSM

WELD, HANDLE MOTION CONTROL-RH

Note: (Not Shown)

$43.99

$

Usually ships in 2-12 days

0

24

Simplicity 5048264SM

SPACER, .39 X .63 X 1.50

$5.99

$

Usually ships in 2-12 days

0

25

Simplicity 5048169CSM

WELD,PLATE,NEUTRAL

$

$

Not available

26

Simplicity 5023157SM

BOLT, 5/16-18 X 1 1/2" FLANGE

$3.99

$

Usually ships in 2-12 days

0

27

Simplicity 5025139SM

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, Qty 12

0
