2650 (5900705) - Simplicity Champion 50" Zero-Turn Mower, 26hp Control Group Panel Parts Diagram

Champion 50" Zero-Turn Mower, 26hp

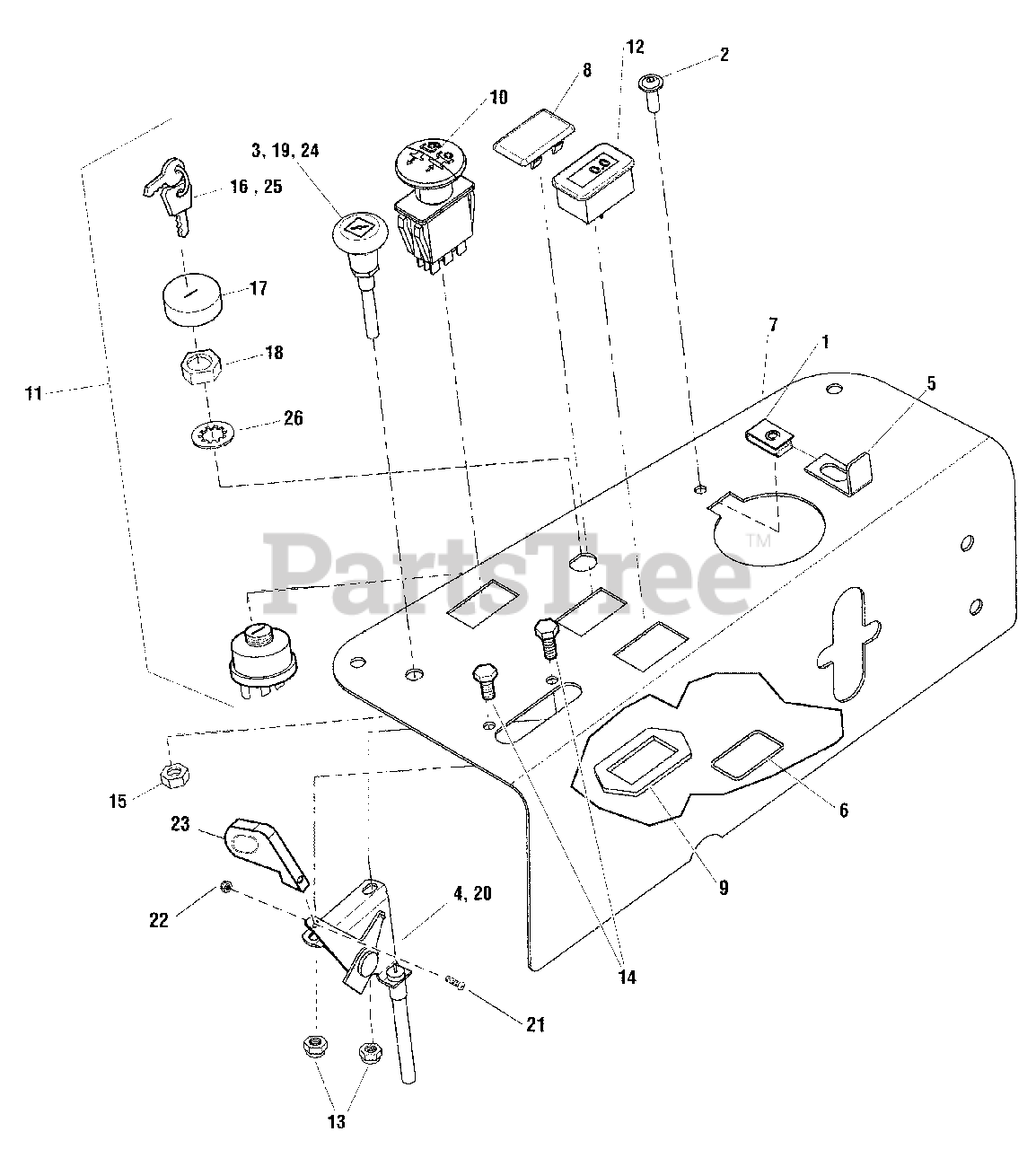

Control Group Panel Parts Diagram

  • Title

1

Simplicity 5022665SM

BODY CLIP, 1/4-20 X 1/2" DEEP

$3.49

$

Usually ships in 2-12 days

0

2

Simplicity 5025299X6SM

SCREW, 1/4-20 X 3/4" ALLEN BH

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 5100184SM

CABLE, CHOKE CONTROL, 43.5"

Note: (Briggs & Stratton Vanguard Models)

$40.99

$

In Stock, Qty 5

0

4

Simplicity 5100182SM

CABLE, THROTTLE CONTROL, 36"

Note: (Briggs & Stratton Models)

$76.99

$

Usually ships in 2-12 days

0

5

Simplicity 5049022ASM

BRACKET, LOCK

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5022269SM

O-RING, 7/8" ID X 1/16" W

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 5400717ASM

PLATE, CONTROL PANEL

$38.99

$

Usually ships in 2-12 days

0

8

Simplicity 1709188SM

PLUG, .820X1.44 HOLE, BLACK PLASTIC

$4.99

$

In Stock, only 1 left!

0

9

Simplicity 5022222SM

RING, SWITCH RETAINER

$4.49

$

In Stock, only 1 left!

0

10

Simplicity 5022180SM

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

11

Simplicity 1737853SM

SWITCH, IGNITION, 6 POST
(Superseded to 1737853YP)

$35.99

$

In Stock, Qty 20+

0

12a

* HOUR METER, ASSEMBLY (5409263)

Note: (S/N: 2015551938 & Above)

$

$

Not available

12b

Simplicity 5100978SM

METER-HOUR DIGITAL
(Superseded to 5102417YP)

Note: (S/N: 2015551937 & Below)

$65.99

$

In Stock, only 1 left!

0

13

Simplicity 5025095SM

NUT, 1/4-20 HEX NYLON LOCK

$3.49

$

In Stock, Qty 5

0

14

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4" GD5 YZ

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 5025035SM

NUT, 3/8-24 HEX

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 1737836SM

KEYS. BLISTER PK KIDS+MWRS DON'T MIX
(Superseded to 1737836YP)

Note: (Domestic Models)

$20.99

$

In Stock, only 1 left!

0

17

Simplicity 1717550SM

COVER, SWITCH
(Superseded to 847150)

$8.49

$

In Stock, Qty 16

0

18

Simplicity 1717549SM

NUT-HEX FLANGE 5/8-32 IGN SW DIE CAST
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

19

Simplicity 5100185SM

CABLE, CHOKE CONTROL, 30.5"\

Note: (Kohler Models)

$42.99

$

Usually ships in 2-12 days

0

20

Simplicity 5100181SM

CABLE, THROTTLE CONTROL, 27.5"

Note: (Kohler Models)

$51.99

$

In Stock, only 1 left!

0

21

Simplicity 5025270SM

SCREW, #10-24 X 1" RS

$3.49

$

Usually ships in 2-12 days

0

22

Simplicity 703412

NUT, #10-24 HEX NYLON LOCK

Note: (5025271)

$4.49

$

In Stock, only 1 left!

0

23

Simplicity 1725337SM

KNOB, THROTTLE

$12.99

$

In Stock, only 1 left!

0

24

Simplicity 5047779SM

CABLE, CHOKE CONTROL, 51"

Note: (Briggs & Stratton ELS Models)

$52.99

$

In Stock, Qty 5

0

25

Simplicity 1737837SM

KEYS, BLISTER PK KIDS+MWRS DON'T MIX
(Superseded to 1737837YP)

Note: (CE MODELS)

$21.99

$

In Stock, only 1 left!

0

26

Simplicity 1960547SM

LOCKWASHER, INTERNAL TOOTH .625 THIN BLK

$4.49

$

In Stock, only 4 left!

0
