265-SU-11 - Cub Cadet Engine 265-SU-11 Muffler & Engine Shroud Parts Diagram

Engine

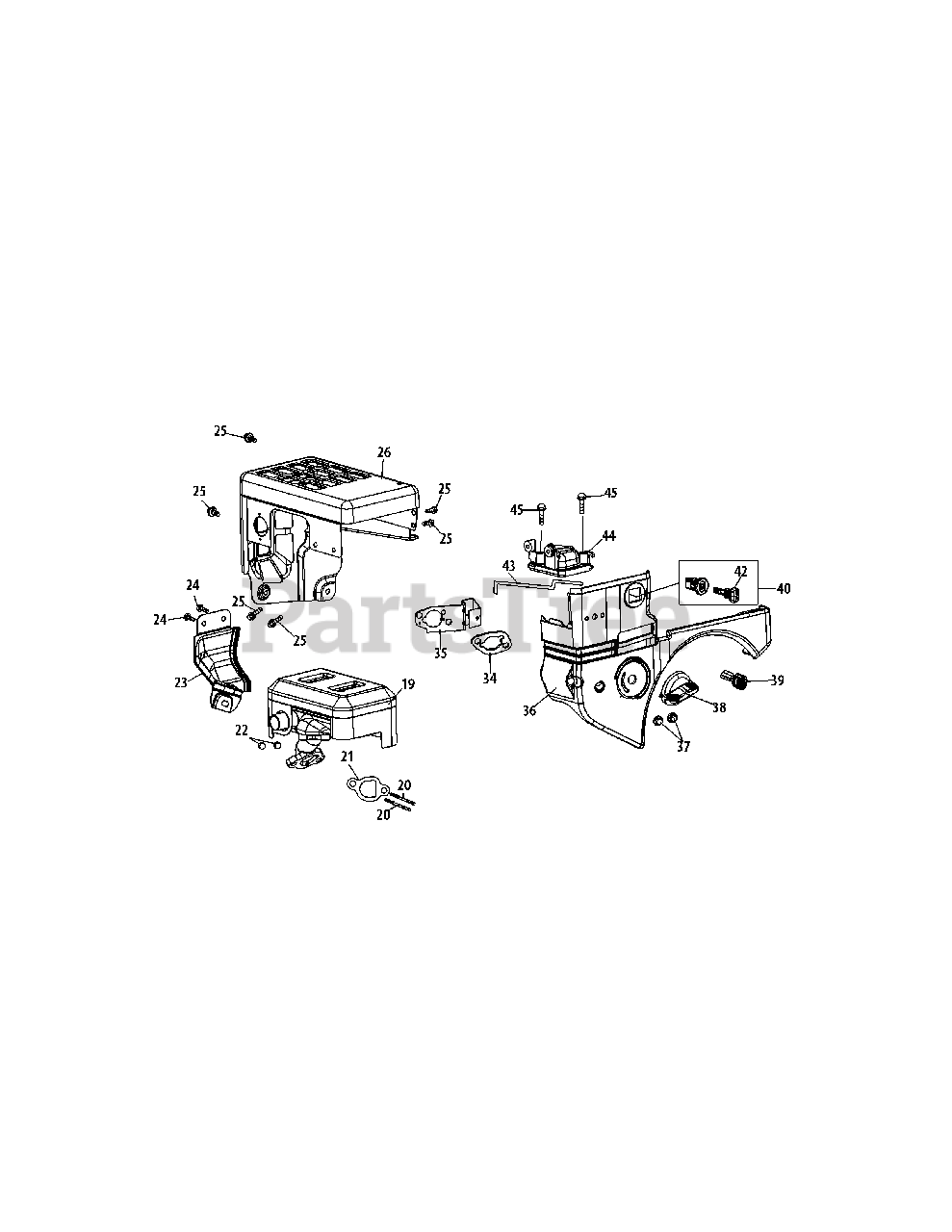

265-SU-11 Muffler & Engine Shroud Parts Diagram

  • Title

19

Cub Cadet 951-11282

Muffler Assembly

$

$

Not available

20

Cub Cadet 710-04911

Muffler Stud M8×36

$4.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 951-10657

Muffler Stud Assembly

$10.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 951-11285

Muffler Gasket
(Superseded to 951-11289)

$2.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04214

Nut, M8

$4.49

$

In Stock, Qty 5

0

23

Cub Cadet 951-11111

Exhaust Pipe Shield

$12.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-04914

Bolt M6×10

$4.49

$

In Stock, only 3 left!

0

25

Cub Cadet 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 951-10642A

Muffler Shield
(Superseded to 951-10642B)

$

$

Not available

34

Cub Cadet 951-11897

Carburetor Gasket Plate
(Superseded to 751P11897B)

$1.99

$

In Stock, Qty 20+

0

35

Cub Cadet 951-11112

Choke Control

$25.99

$

In Stock, only 4 left!

0

36

Cub Cadet 951-10634

Air Cleaner Housing
(Superseded to 951-10634A)

$32.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 712-04213

Nut

$6.99

$

In Stock, only 4 left!

0

38

Cub Cadet 951-11284

Choke Knob

$7.49

$

In Stock, only 3 left!

0

39

Cub Cadet 951-10757

Throttle Control Knob
(Superseded to 951-11224)

$7.99

$

In Stock, only 3 left!

0

40

Cub Cadet 951-10637

Key Switch

$14.99

$

In Stock, Qty 8

0

42

Cub Cadet 731-05632

Key
(Superseded to 951-10630)

$6.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 951-10640

Choke Push Rod

$10.99

$

In Stock, Qty 5

0

44

Cub Cadet 951-10635

Heater Box

$16.99

$

In Stock, only 1 left!

0

45

Cub Cadet 710-04919

Bolt M6×25

$4.49

$

Usually ships in 3-6 days

0
