265-SU-11 - Cub Cadet Engine 265-SU-11 Carburetor Parts Diagram

Engine

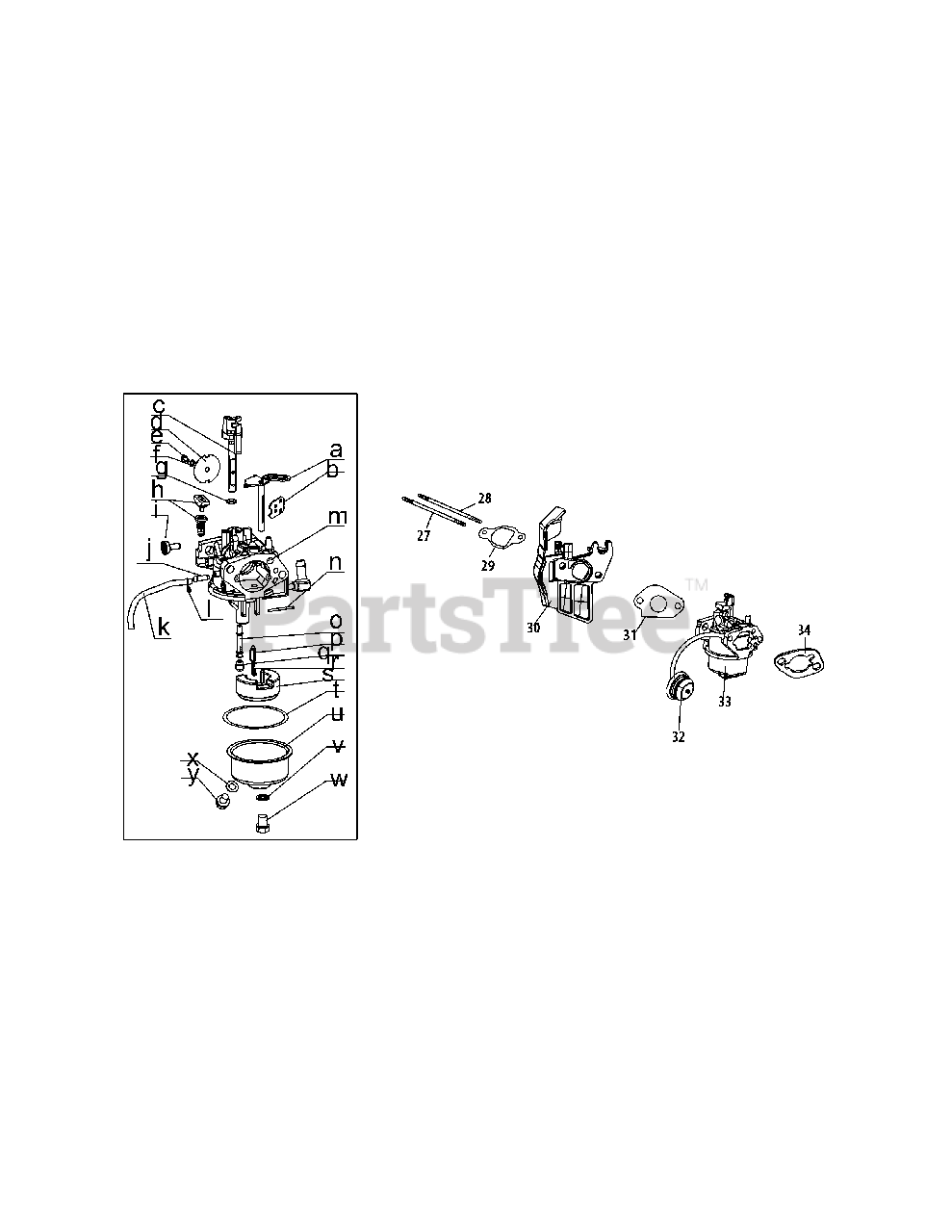

265-SU-11 Carburetor Parts Diagram

  • Title
27

Cub Cadet 710-04939

Stud M6×117

$6.99

$

In Stock, only 2 left!

0

28

Cub Cadet 710-04910

Stud M6×105

$6.49

$

In Stock, Qty 6

0

29

Cub Cadet 951-11567

Carburetor Insulator Gasket
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

30

Cub Cadet 951-11896

Carburetor Insulator
(Superseded to 951-11896A)

$11.99

$

In Stock, Qty 6

0

31

Cub Cadet 951-11569A

Carburetor Gasket
(Superseded to 751P12005A)

$5.99

$

In Stock, Qty 20+

0

32

Cub Cadet 951-10639A

Primer Assembly

$15.99

$

In Stock, Qty 17

0

32

Cub Cadet 951-11824

Primer Bulb

$11.99

$

In Stock, only 2 left!

0

33

Cub Cadet 951-10974A

Carburetor Assembly
(Superseded to 951-12705)

$100.99

$

In Stock, Qty 12

0

34

Cub Cadet 951-11897

Carburetor Gasket Plate
(Superseded to 751P11897B)

$1.99

$

In Stock, Qty 20+

0

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Throttle Shaft

$

$

Not available

d

Throttle Plate

$

$

Not available

e

Screw M3×5

$

$

Not available

f

Lock Washer

$

$

Not available

g

Gasket, Throttle Plate

$

$

Not available

h

Idle Jet Assembly

$

$

Not available

i

Idle Speed Adjusting Screw

$

$

Not available

j

Mixture Screw

$

$

Not available

k

Cub Cadet 951-11699

Primer Hose
(Superseded to 951-11699A)

$6.99

$

In Stock, only 1 left!

0

l

Cub Cadet 951-11906

Hose Clamp

$3.99

$

In Stock, Qty 6

0

m

Carburetor Body

$

$

Not available

n

Float Pin

$

$

Not available

o

Emulsion Tube

$

$

Not available

p

Needle Valve

$

$

Not available

q

Main Jet

$

$

Not available

r

Needle Valve Spring

$

$

Not available

s

Float

$

$

Not available

t

Cub Cadet 951-11589

Fuel Bowl Gasket
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

u

Fuel Bowl

$

$

Not available

v

Cub Cadet 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, only 1 left!

0

w

Cub Cadet 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, only 4 left!

0

x

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 11

0

y

Cub Cadet 710-04938

Fuel Drain Plug

$4.49

$

In Stock, only 1 left!

0

Cub Cadet 951-14050

Carburetor Repair Kit - HAUYI

Note: (Incl.g,h,I,n,o,p,q,r,s,t,v,x) (not shown)

$58.99

$

In Stock, Qty 7

0

Cub Cadet 951-12712

Carburetor Repair Kit - DENI

Note: (Incl.g,h,I,n,o,p,q,r,s,t,v,x) (not shown)

$58.99

$

In Stock, only 1 left!

0
