265 RX - Husqvarna String Trimmer (SN: 19954500001 - 19991000000) STARTER Parts Diagram

String Trimmer

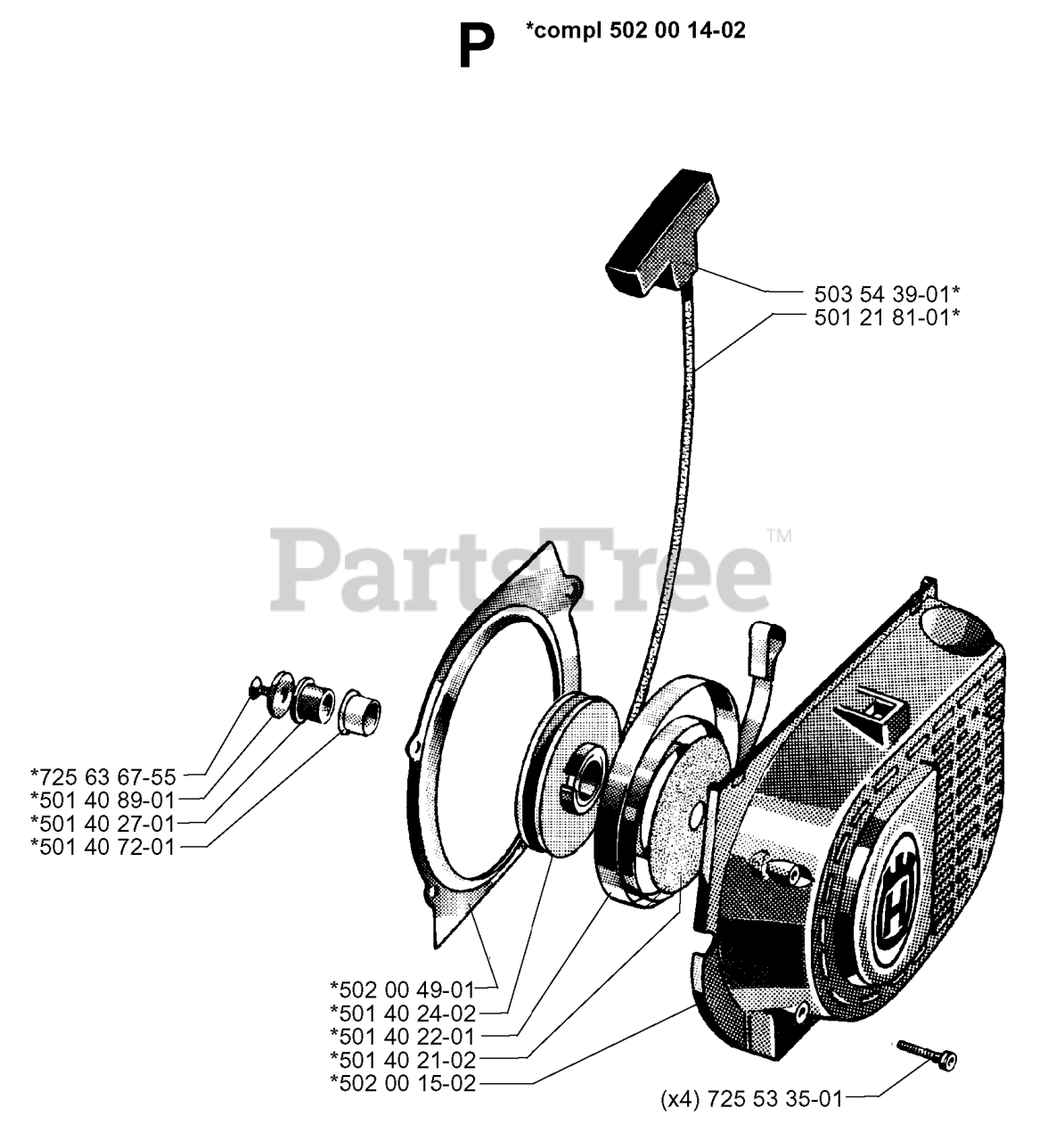

STARTER Parts Diagram

  • Title
501 40 27-01

Husqvarna 501402701

SHAFT
(Superseded to 537226101)

$56.99

$

Usually ships in 3-10 days

0

501 40 24-02

Husqvarna 501402402

STARTER PULLEY

$

$

Not available

725 63 67-55

Husqvarna 725636755

SCREW MF6S 6X14

$4.99

$

Usually ships in 3-10 days

0

501 40 21-02

Husqvarna 501402102

DAMPING DISC

$20.11

$

Usually ships in 3-10 days

0

502 00 15-02

Husqvarna 502001502

Starter Cover

$

$

Not available

501 21 81-01

Husqvarna 501218101

STARTER ROPE

$

$

Not available

725 53 35-01

Husqvarna 725533501

SCREW MCS 5X30
(Superseded to 725533555)

$3.49

$

In Stock, only 1 left!

0

503 54 39-01

Husqvarna 503543901

STARTER HANDLE

$11.99

$

In Stock, only 3 left!

0

501 40 72-01

Husqvarna 501407201

BUSHING
(Superseded to 537226101)

$56.99

$

Usually ships in 3-10 days

0

501 40 22-01

Husqvarna 501402201

RECOIL SPRING

$

$

Not available

501 40 89-01

$

$

Not available

502 00 14-02

Husqvarna 502001402

STARTER ASSEMBLY

$

$

Not available

502 00 49-01

Husqvarna 502004901

AIR CONDUCTOR

$6.91

$

Usually ships in 3-10 days

0
