265 RX - Husqvarna String Trimmer (SN: 19921800001 - 19954500000) SHAFT & HANDLE Parts Diagram

String Trimmer

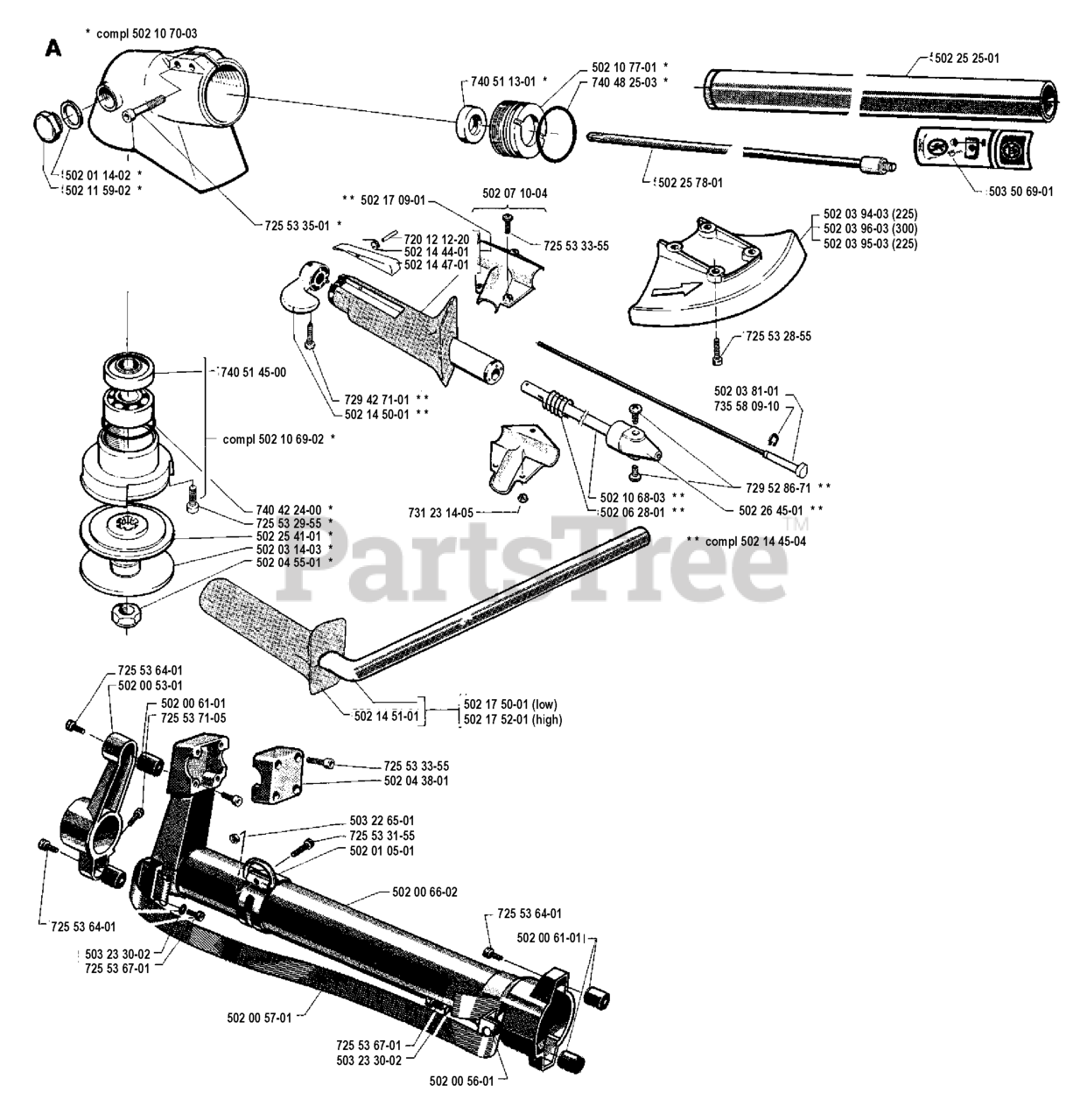

SHAFT & HANDLE Parts Diagram

  • Title
729 42 71-01

Husqvarna 729427101

NEEDS DESCRIPTION

$

$

Currently unavailable

502 10 69-02

Husqvarna 502106902

GEAR HOUSING COVER

$

$

Not available

502 10 77-01

$

$

Not available

502 01 14-02

Husqvarna 502011402

GASKET
(Superseded to 502286201)

$

$

Not available

502 03 14-03

$

$

Not available

502 00 61-01

Husqvarna 502006101

ANTIVIBE ELEMENT

$16.76

$

Usually ships in 3-10 days

0

502 00 56-01

$

$

Not available

502 14 44-01

$4.99

$

In Stock, only 1 left!

0

725 53 67-01

Husqvarna 725536701

Screw Mc6s 6x14

$

$

Not available

725 53 71-05

Husqvarna 725537105

SCREW MC6S 6X22

$

$

Not available

725 53 64-01

Husqvarna 725536401

SCREW MC6S 6X10

$5.99

$

Usually ships in 3-10 days

0

502 06 28-01

$6.49

$

In Stock, only 1 left!

0

740 51 13-01

Husqvarna 740511301

SEALING RING

$

$

Not available

725 53 28-55

Husqvarna 725532855

SCREW MC6S 5X14

$

$

Not available

502 10 70-03

Husqvarna 502107003

BEVEL GEAR COMPLETE
(Superseded to 502107007)

$

$

Not available

502 14 51-01

Husqvarna 502145101

HANDLE
(Superseded to 502145103)

$17.99

$

Usually ships in 3-10 days

0

740 51 45-00

Husqvarna 740514500

SEALING RING

$

$

Not available

740 48 25-03

$

$

Not available

503 22 65-01

Husqvarna 503226501

SQUARE NUT M5
(Superseded to 503226504)

$6.49

$

In Stock, Qty 13

0

502 04 55-01

Husqvarna 502045501

LOCKNUT 12X1.75
(Superseded to 732252201)

$1.99

$

In Stock, only 2 left!

0

502 07 10-04

Husqvarna 502071004

HOLDER RIGHT
(Superseded to 502071005)

$

$

Not available

725 53 31-55

Husqvarna 725533155

SCREW MC6S 5X20
(Superseded to 525824902)

$6.49

$

In Stock, only 2 left!

0

502 10 68-03

$51.92

$

Usually ships in 3-10 days

0

502 14 47-01

$

$

Not available

502 25 41-01

Husqvarna 502254101

DRIVER
(Superseded to 502254102)

$74.99

$

Usually ships in 3-10 days

0

502 11 59-02

$21.99

$

Usually ships in 3-10 days

0

502 14 45-04

Husqvarna 502144504

HANDLEBAR RH COMPL

$122.97

$

Usually ships in 3-10 days

0

502 01 05-01

Husqvarna 502010501

EYELET
(Superseded to 502266001)

$

$

Not available

503 23 30-02

Husqvarna 503233002

SPRING WASHER 6.4X10

$2.23

$

Usually ships in 3-10 days

0

502 04 38-01

$30.18

$

Usually ships in 3-10 days

0

502 25 78-01

Husqvarna 502257801

SHAFT
(Superseded to 537014005)

$130.39

$

Usually ships in 3-10 days

0

502 00 53-01

$

$

Not available

502 17 52-01

Husqvarna 502175201

HANDLE LEFT
(Superseded to 502175203)

Note: HIGH

$76.15

$

Usually ships in 3-10 days

0

502 03 81-01

$

$

Not available

502 17 50-01

Husqvarna 502175001

HANDLE LEFT CPL.
(Superseded to 502175005)

Note: LOW

$56.99

$

Usually ships in 3-10 days

0

502 00 57-01

$

$

Not available

502 00 66-02

Husqvarna 502006602

SUPPORTING TUBE

$198.99

$

Usually ships in 3-10 days

0

735 58 09-10

Husqvarna 735580910

LOCK WASHER
(Superseded to 735585200)

$5.99

$

In Stock, only 1 left!

0

502 17 09-01

Husqvarna 502170901

HANDLE RIGHT
(Superseded to 502170904)

$

$

Not available

720 12 12-20

$

$

Not available

502 25 25-01

Husqvarna 502252501

TUBE ASSY
(Superseded to 502252502)

$

$

Not available

740 42 24-00

$3.49

$

In Stock, Qty 11

0

725 53 29-55

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

502 14 50-01

$

$

Not available

502 03 94-03

Husqvarna 502039403

BLADE GUARD 225 MM
(Superseded to 574506702)

Note: 225

$48.99

$

In Stock, only 1 left!

0

502 03 95-03

Husqvarna 502039503

BLADE GUARD 255MM

Note: 225

$

$

Not available

502 03 96-03

Husqvarna 502039603

BLADE GUARD

Note: 300

$

$

Not available

725 53 33-55

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 19

0

729 52 86-71

$

$

Not available

503 50 69-01

Husqvarna 503506901

DECAL
(Superseded to 503901301)

$

$

Not available

502 26 45-01

Husqvarna 502264501

LOCKING SLEEVE
(Superseded to 537104301)

$11.53

$

Usually ships in 3-10 days

0

725 53 35-01

Husqvarna 725533501

SCREW MCS 5X30
(Superseded to 725533555)

$3.49

$

In Stock, only 1 left!

0

731 23 14-05

Husqvarna 731231405

NUT M6M M5

$3.49

$

Usually ships in 3-10 days

0
