265 RX - Husqvarna String Trimmer (1995-11) Gear Housing Parts Diagram

String Trimmer

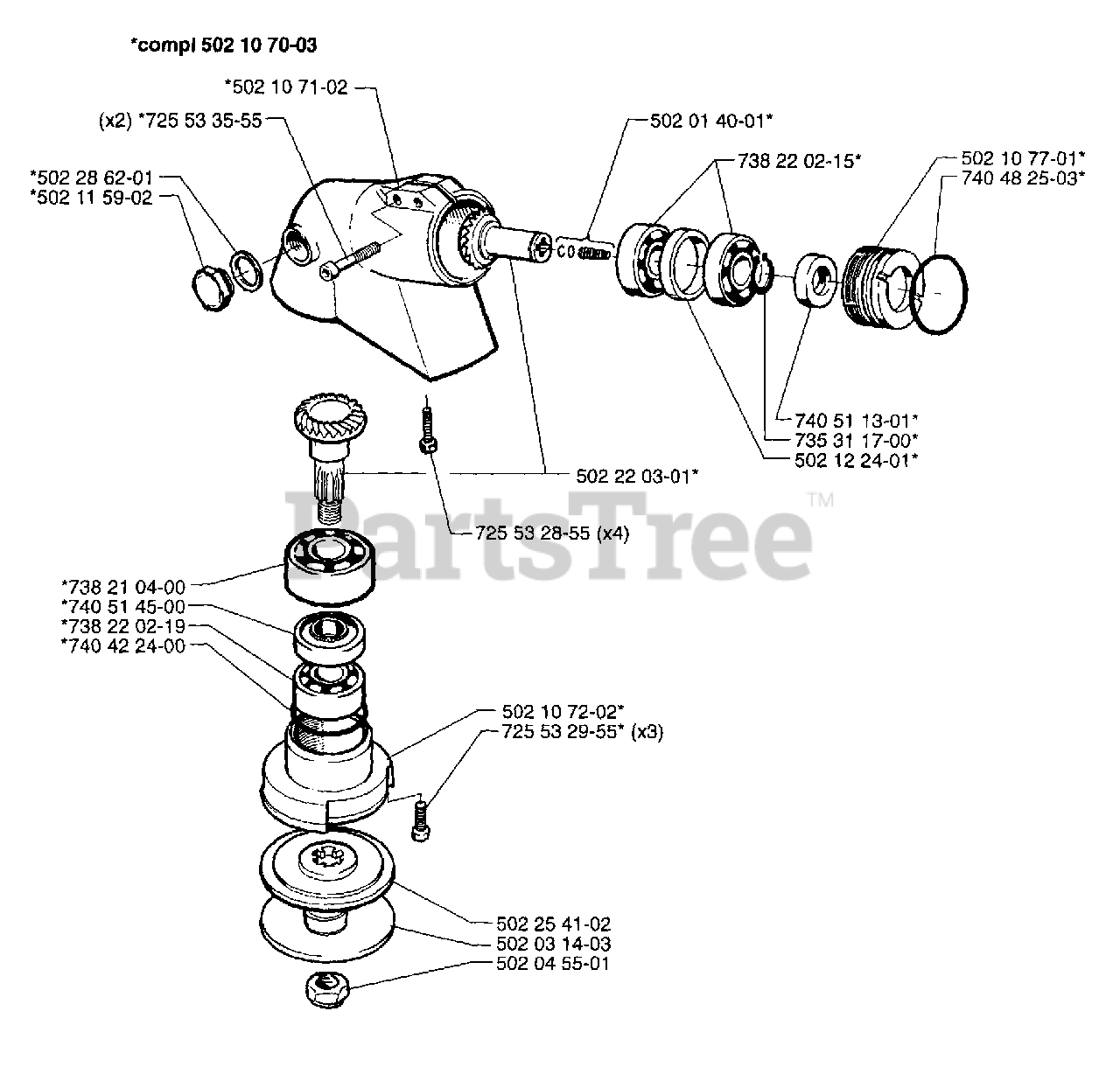

Gear Housing Parts Diagram

  • Title

502014001

Husqvarna 502014001

SPRING SET NLA

$

$

Not available

738220215

Husqvarna 738220215

BALL BEARING 6202-QE6
(Superseded to 738220225)

$

$

Not available

502107701

Husqvarna 502107701

SLEEVE

$

$

Not available

740482503

Husqvarna 740482503

O-RING

$

$

Not available

740511301

Husqvarna 740511301

SEALING RING

$

$

Not available

735311700

Husqvarna 735311700

RETAINING RING SGA 15

$3.49

$

In Stock, Qty 7

0

502122401

Husqvarna 502122401

SPACER

$

$

Not available

502220301

Husqvarna 502220301

GEAR-WHEEL SPARE PART KIT
(Superseded to 502220302)

$

$

Not available

725532855

Husqvarna 725532855

SCREW MC6S 5X14

$

$

Not available

502107202

Husqvarna 502107202

GEAR HOUSING COVER

$

$

Not available

725532955

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

502254102

Husqvarna 502254102

DRIVER

$74.99

$

Usually ships in 3-10 days

0

502031403

Husqvarna 502031403

FLANGE

$

$

Not available

502045501

Husqvarna 502045501

LOCKNUT 12X1.75
(Superseded to 732252201)

$1.99

$

In Stock, only 3 left!

0

740422400

Husqvarna 740422400

O-RING

$3.49

$

In Stock, Qty 11

0

738220219

Husqvarna 738220219

BALL BEARING 6202-2RS1

$35.99

$

Usually ships in 3-10 days

0

740514500

Husqvarna 740514500

SEALING RING

$

$

Not available

738210400

Husqvarna 738210400

BALL BEARING

$

$

Not available

502115902

Husqvarna 502115902

PLUG

$21.99

$

Usually ships in 3-10 days

0

502286201

Husqvarna 502286201

OIL PLUG WASHER

$

$

Not available

725533555

Husqvarna 725533555

SCREW MC6S 5X30

$3.49

$

In Stock, only 1 left!

0

502107102

Husqvarna 502107102

GEAR HOUSING

$

$

Not available

502107003

Husqvarna 502107003

BEVEL GEAR COMPLETE
(Superseded to 502107007)

$

$

Not available
