265 - International Harvester Snow Blower (1971 - 1981) Shift Control Lever Parts Diagram

Snow Blower

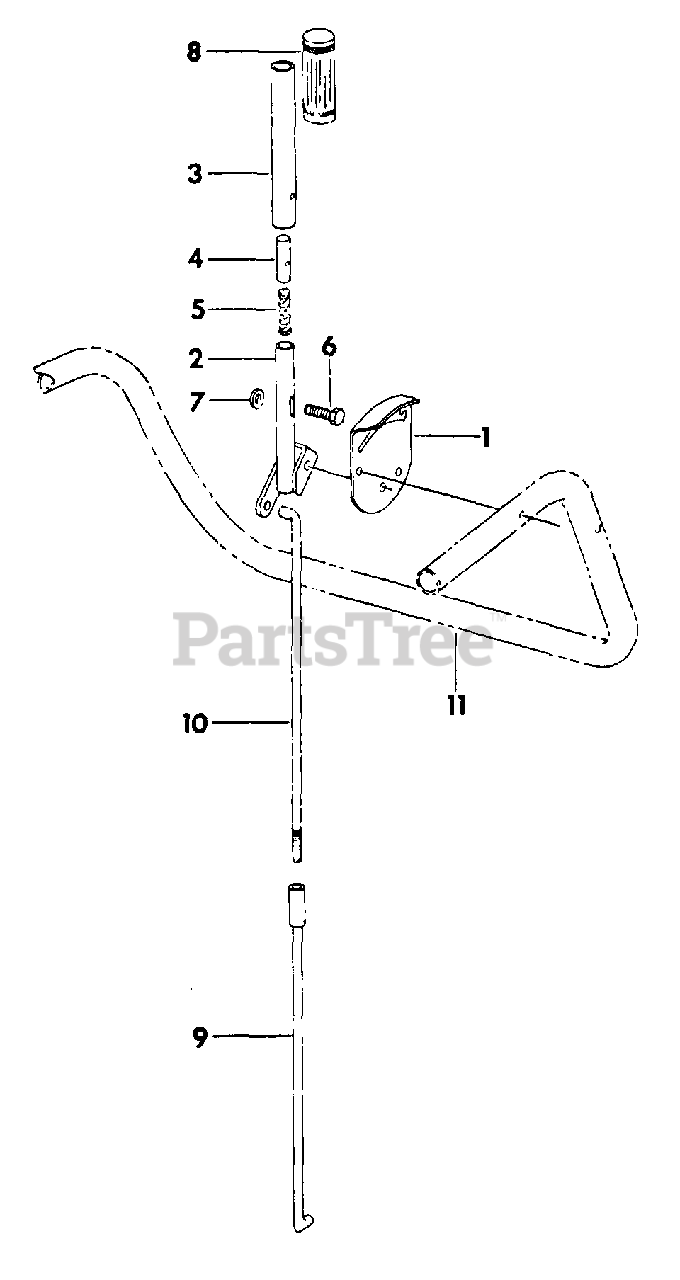

Shift Control Lever Parts Diagram

  • Title

1

Cub Cadet IH-549050-R1

BRACKET, CONTROL SUPPORT

$

$

Currently unavailable

Cub Cadet IH-179801

SCREW, 1/4-20 X 1-1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-378531-R1

NUT, 1/4-20 CDP HEX. LOCK

$

$

Currently unavailable

2

Cub Cadet IH-549051-R1

LEVER SHIFT

$

$

Currently unavailable

Cub Cadet IH-179824

SCREW, 5/16-18 X 1-3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-Q399

WASHER, 11/32 X 1 X 16 GA

$

$

Currently unavailable

Cub Cadet IH-472146-R1

NUT, 5/16-18 CDP HEX. LOCK

$

$

Not available

3

Cub Cadet IH-549052-R1

HANDLE, SHIFT LEVER

$

$

Currently unavailable

4

Cub Cadet IH-549053-R1

SLIDE

$

$

Currently unavailable

5

Cub Cadet IH-493631-R2

SPRING

Note: (REPLACES IH-549659-R1)

$

$

Currently unavailable

6

Cub Cadet IH-179801

SCREW, 1/4-20 X 1-1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-378531-R1

NUT, 1/4-20 CAD HEX. LOCK

$

$

Currently unavailable

7

Cub Cadet IH-549054-R1

WASHER

$

$

Currently unavailable

8

Cub Cadet IH-549660-R1

GRIP, HANDLE

$

$

Currently unavailable

9

Cub Cadet IH-549055-R1

ROD, CONTROL ADJUSTING LOWER

$

$

Currently unavailable

Cub Cadet IH-Q1505

WASHER, 13/32 X 1 X 16 GA

$

$

Currently unavailable

Cub Cadet IH-148145

SPRING, 3/32 RETAINING

$

$

Currently unavailable

10

Cub Cadet IH-549056-R1

ROD, CONTROL ADJUSTING UPPER

$

$

Currently unavailable

Cub Cadet IH-Q1505

WASHER, 13/32 X 1 X 16 GA

$

$

Currently unavailable

Cub Cadet IH-148145

SPRING, 3/32 RETAINING

$

$

Currently unavailable

11

BAR, HANDLE

Note: (REFER TO CLUTCH CONTROLS, HANDLE BAR & EXTENSION LISTING)

$

$

Not available
