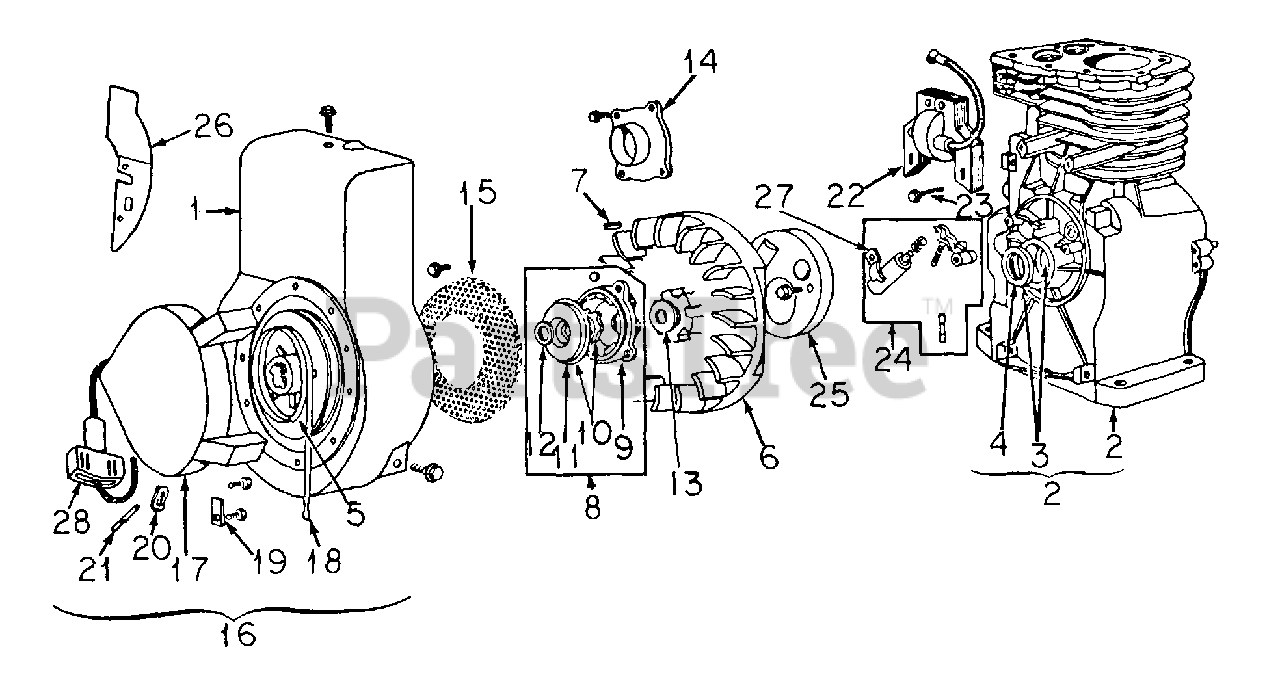

265 - International Harvester Snow Blower (1971 - 1981) Engine Electrical And Starting Parts Diagram

Snow Blower

Engine Electrical And Starting Parts Diagram

  • Title

1

Cub Cadet IH-549372-R1

HOUSING, BLOWER

$

$

Currently unavailable

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 ZND HEX-HD

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

2

Cub Cadet IH-549383-R91

CYLINDER ASSY. ENGINE

$

$

Currently unavailable

3

BUSHING AND SEAL

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

4

Cub Cadet IH-549386-R1

SEAL, OIL
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 17

0

5

PULLEY, REWIND STARTER

Note: (NOT SERVICED SEPARATELY. ORDER IH-549438-R91)

$

$

Not available

6

Cub Cadet IH-549424-R1

FLYWHEEL

$

$

Not available

7

Cub Cadet IH-549434-R1

KEY, FLYWHEEL
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

8

Cub Cadet IH-549425-R91

CLUTCH ASSY, REWIND STARTER
(Superseded to BS-399671)

$34.99

$

In Stock, Qty 20+

0

9

HOUSING, REWIND STARTER CLUTCH

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

10

RATCHET, STARTER

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

11

RETAINER, WASHER

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

12

SEAL, RATCHET

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

13

Cub Cadet IH-549431-R1

WASHER, SPRING

$

$

Currently unavailable

14

Cub Cadet IH-549435-R1

SHIELD, CLUTCH

$

$

Not available

Cub Cadet IH-20832-R1

SCREW, 8-32 X 1/2 ZND HEX HD MACH W/SPRING LOCKWASHER

$

$

Currently unavailable

15

Cub Cadet IH-549436-R1

SCREEN, REWIND STARTER

$

$

Not available

Cub Cadet IH-450644

SCREW, 8-32 X 3/8 ZND HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-138530

WASHER, NO. 8 ZND INT-TOOTH LOCK

$

$

Currently unavailable

16

Cub Cadet IH-549438-R91

STARTER ASSY, REWIND
(Superseded to BS-390463)

$

$

Not available

Cub Cadet IH-26090-R1

SCREW, 10-32 X 3/8 ZND SLT-HEX-HD W/SPLIT RING LOCKWASHER

$

$

Currently unavailable

17

Cub Cadet IH-549439-R1

HOUSING, REWIND STARTER

$

$

Currently unavailable

18

Cub Cadet IH-549441-R1

SPRING, REWIND STARTER
(Superseded to BS-490179)

$

$

Not available

19

Cub Cadet IH-549442-R1

BUMPER, REWIND PULLEY

$

$

Not available

Cub Cadet IH-172300

SCREW, 8-32 X 1/2 ZND HEX-HD TAP.

$

$

Currently unavailable

20

Cub Cadet IH-549443-R1

SPRING, ANCHOR INSERT

$

$

Currently unavailable

21

PIN, STARTER GRIP PIN

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

22

Cub Cadet IH-549458-R1

ARMATURE ASSY, MAGNETO
(Superseded to BS-397358)

$53.99

$

In Stock, Qty 20+

0

23

Cub Cadet IH-549459-R1

SCREW, ARMATURE MOUNTING

$

$

Currently unavailable

24

Cub Cadet IH-549471-R91

KIT, IGNITION SERVICE
(Superseded to BS-294628)

Note: (CONSISTS OF FOLLOWING 2 ITEMS)

$

$

Not available

BREAKER POINTS AND CONDENSER

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

PLUNGER

Note: (NOT AVAILABLE FOR SERVICE)

$

$

Not available

Cub Cadet IH-549434-R1

FLYWHEEL KEY
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

Cub Cadet IH-549461-R1

SCREW, BREAKER ARM MOUNTING

$

$

Currently unavailable

25

Cub Cadet IH-549468-R1

COVER, BREAKER POINT

$

$

Currently unavailable

Cub Cadet IH-26000-R1

SCREW, NO. 8 X 3/8 H/WHD TAP

$

$

Not available

26

Cub Cadet IH-61723-C1

GUARD, FLYWHEEL

$

$

Currently unavailable

27

Cub Cadet IH-549466-R1

CLAMP, CONDENSER

$

$

Currently unavailable

Cub Cadet IH-450644

SCREW, 8-32 X 3/8 ZND HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-138530

WASHER, NO. 8 ZND INT-TOOTH LOCK

$

$

Currently unavailable

28

Cub Cadet IH-405563-R91

PACKAGE, REWIND STARTER HANDLE AND INSERT

$

$

Not available
