265 - International Harvester Snow Blower (1971 - 1981) Clutch Parts Diagram

Snow Blower

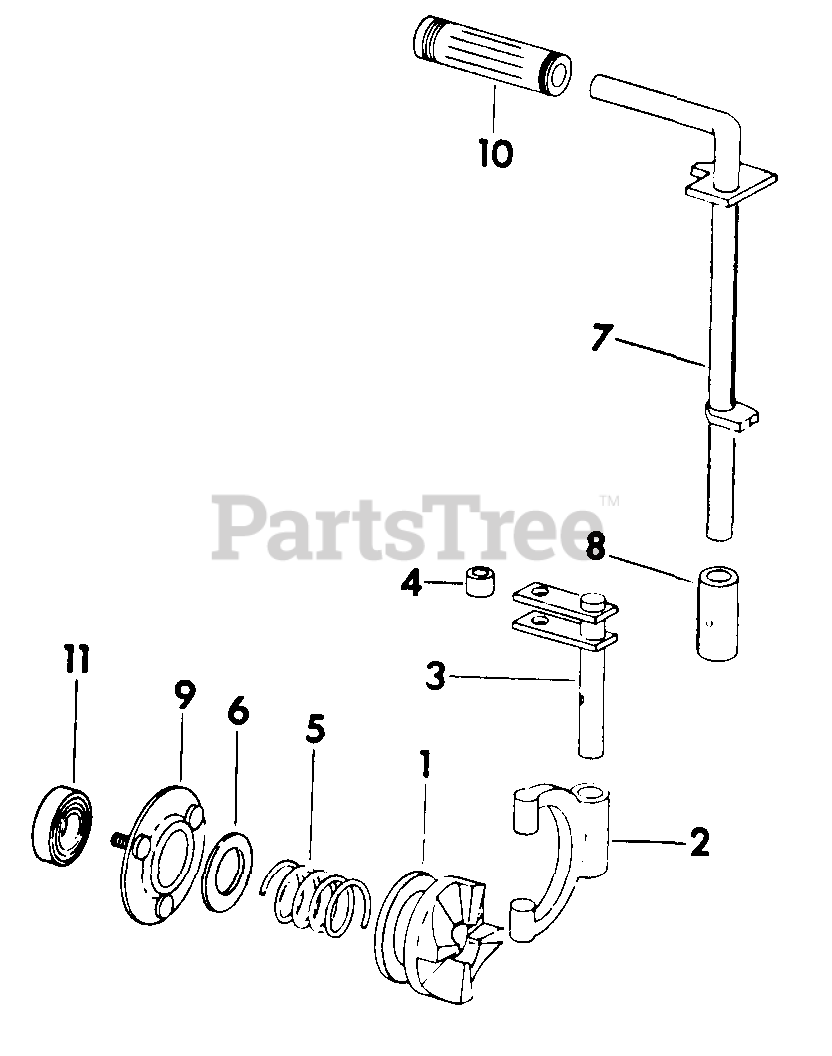

Clutch Parts Diagram

  • Title
1

Cub Cadet IH-548991-R1

CLUTCH, DRIVEN

$

$

Currently unavailable

2

Cub Cadet IH-548992-R1

FORK, CLUTCH

$

$

Currently unavailable

3

Cub Cadet IH-548993-R1

SHAFT, CLUTCH FORK

$

$

Currently unavailable

Cub Cadet IH-20895-R1

PIN, 1/4 X 1 MED COILED SPRING

$

$

Currently unavailable

Cub Cadet IH-21000-R1

PIN, 3/16 X 1-1/4 MED COILED SPRING

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Cub Cadet IH-548995-R1

SPRING, CLUTCH RETAINING

$

$

Not available

$

$

Currently unavailable

7

Cub Cadet IH-548996-R1

SHAFT, CLUTCH CAM

$

$

Currently unavailable

8

Cub Cadet IH-548997-R1

SPACER, BUSHING

$

$

Currently unavailable

Cub Cadet IH-103397

PIN, 5/32 X 1-1/4 COT.

$

$

Currently unavailable

Cub Cadet IH-179837

SCREW, 3/8-16 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 REG LOCK

$

$

Currently unavailable

9

Cub Cadet IH-548977-R1

PLATE, BRG RET BACK

$

$

Currently unavailable

Cub Cadet IH-378531-R1

NUT, 1/4-20 HEX LOCK

$

$

Currently unavailable

10

Cub Cadet IH-549654-R1

GRIP, HANDLE

$

$

Currently unavailable

11

Cub Cadet IH-475627-R91

BEARING, BALL

$

$

Not available
