265 - International Harvester Snow Blower (1971 - 1981) Chute Cntrl & Connect. (1972 & Since W/Product ID No. 3080001U1111) Parts Diagram

Snow Blower

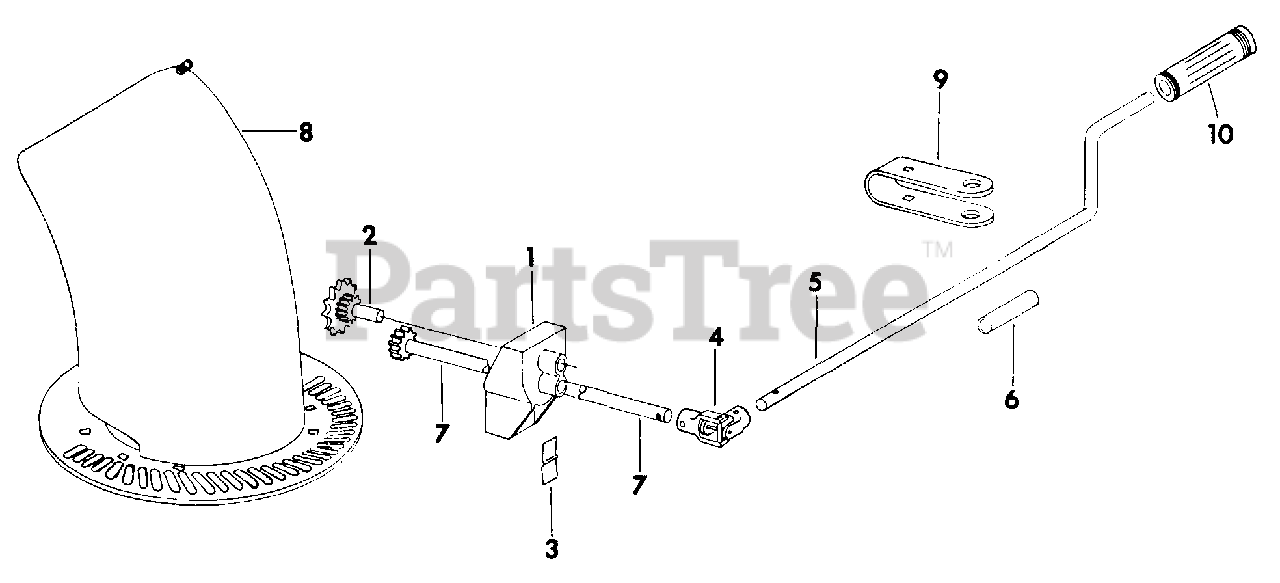

Chute Cntrl & Connect. (1972 & Since W/Product ID No. 3080001U1111) Parts Diagram

  • Title

1

Cub Cadet IH-58485-C1

SUPPORT, SPROCKET BEARING

$

$

Not available

Cub Cadet IH-14994-R1

BOLT, 5/16 X 3/4 SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 REG LOCK

$

$

Currently unavailable

Cub Cadet IH-102634

NUT, 5/16-18 HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet IH-58486-C1

SPROCKET ASSY

$

$

Currently unavailable

3

Cub Cadet IH-58487-C1

SPRING

$

$

Not available

4

Cub Cadet IH-397043-R1

UNIVERSAL JOINT
(Superseded to 684-04350)

$29.99

$

In Stock, only 4 left!

0

Cub Cadet IH-103396

PIN, 5/32 X 1 COT.

$

$

Currently unavailable

5

Cub Cadet IH-548988-R1

HANDLE, CHUTE CONTROL

$

$

Currently unavailable

6

Cub Cadet IH-549653-R1

SLEEVE, CONTROL HANDLE

$

$

Currently unavailable

7

Cub Cadet IH-58488-C2

GEAR ASSY, DRIVE

$

$

Not available

8

CHUTE, SNOW

Note: (REFER TO BLOWER HOUSING & ROTOR LISTING)

$

$

Not available

9

Cub Cadet IH-549057-R1

BRACKET, CHUTE CONTROL

$

$

Currently unavailable

Cub Cadet IH-15038-R1

BOLT, 5/16-18 X 1-1/2 SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-472146-R1

NUT, 5/16-18 HEX. LOCK

$

$

Not available

10

Cub Cadet IH-549290-R1

GRIP, CHUTE CONTROL HANDLE

$

$

Not available
