2623 (2691302-00) - Massey Ferguson 50" Lawn Tractor, 23hp Steering Group - Manual Parts Diagram

50" Lawn Tractor, 23hp

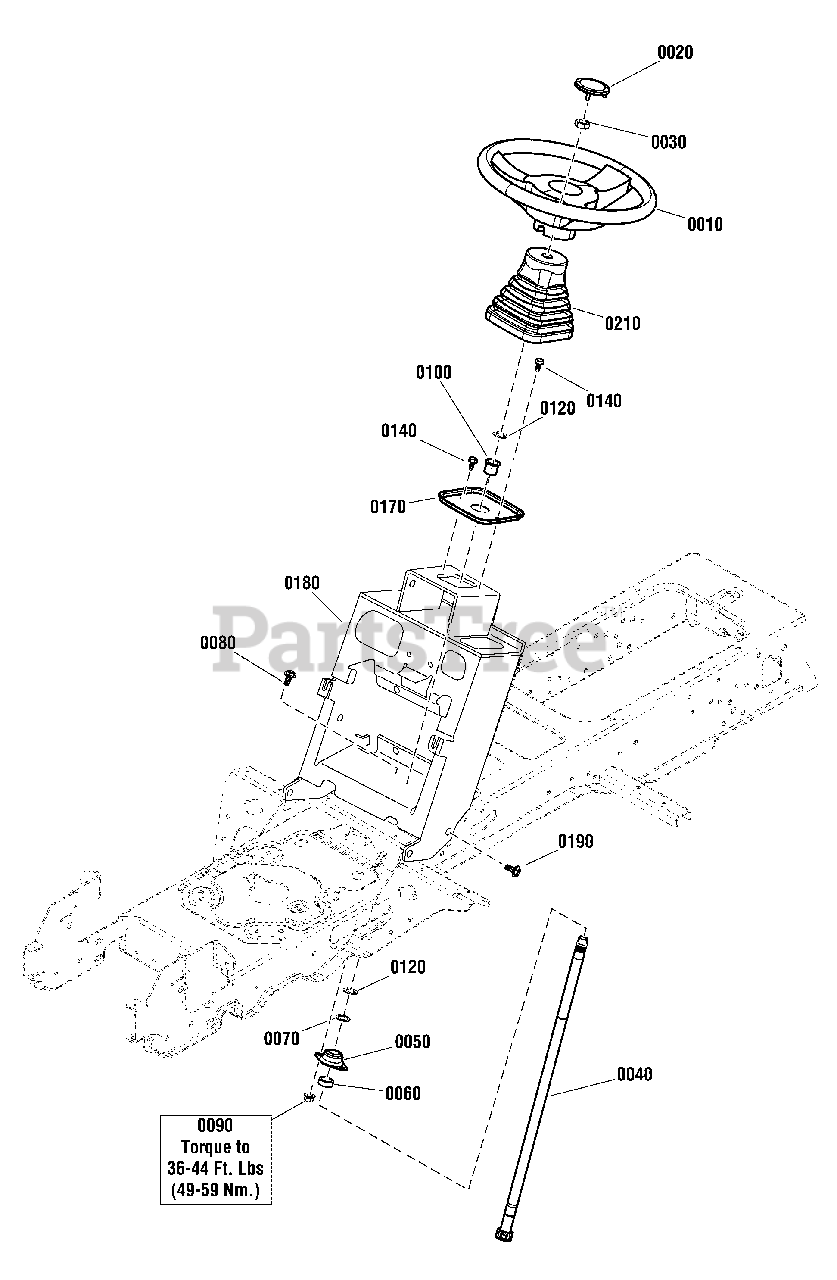

Steering Group - Manual Parts Diagram

  • Title

0010

Simplicity 7078088YP

STEERING WHEEL, UV-2

$131.99

$

In Stock, only 1 left!

0

0020

Simplicity 1725024SM

CAP, Steering Wheel

$7.49

$

In Stock, only 1 left!

0

0030

Simplicity 1960576SM

NUT, Hex Lock, ESNA Light, 5/8-18

$5.99

$

In Stock, Qty 9

0

0040

Simplicity 1755488YP

SHAFT, Steering
(Superseded to 1756846YP)

$63.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1722459SM

BEARING, Flanged

$11.99

$

In Stock, Qty 20+

0

0060

Simplicity 1722461SM

SPACER

$26.99

$

In Stock, Qty 14

0

0070

Simplicity 706388

SPACER, .766 x 1.06 x 1/8

$7.99

$

Usually ships in 2-12 days

0

0080

Simplicity 7091588SM

BOLT, Serrated Flange, 3/8-16 x 3/4, GR5
(Superseded to 703955)

$4.49

$

In Stock, Qty 6

0

0090

Simplicity 1931211SM

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0100

Simplicity 2176440SM

BUSHING, Nylon, 3/4 ID x 7/8 OD x 7/8"

$4.99

$

In Stock, Qty 20+

0

0120

Simplicity 1611710SM

RING, Klipring, 3/4

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0170

Simplicity 1754945AYP

PLATE, Steering Mount

$13.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1754945AYP

TOWER, Steering

$13.99

$

Usually ships in 2-12 days

0

0190

Simplicity 703950

SCREW, Washer, 3/8-16 x 3/4

$5.49

$

In Stock, only 1 left!

0

0210

Simplicity 1755550YP

BELLOWS, Steering Cover

$28.99

$

Usually ships in 2-12 days

0
