2622 (2690971-02) - Massey Ferguson 44" Lawn Tractor, 22hp Wheels & Tires Group Parts Diagram

44" Lawn Tractor, 22hp

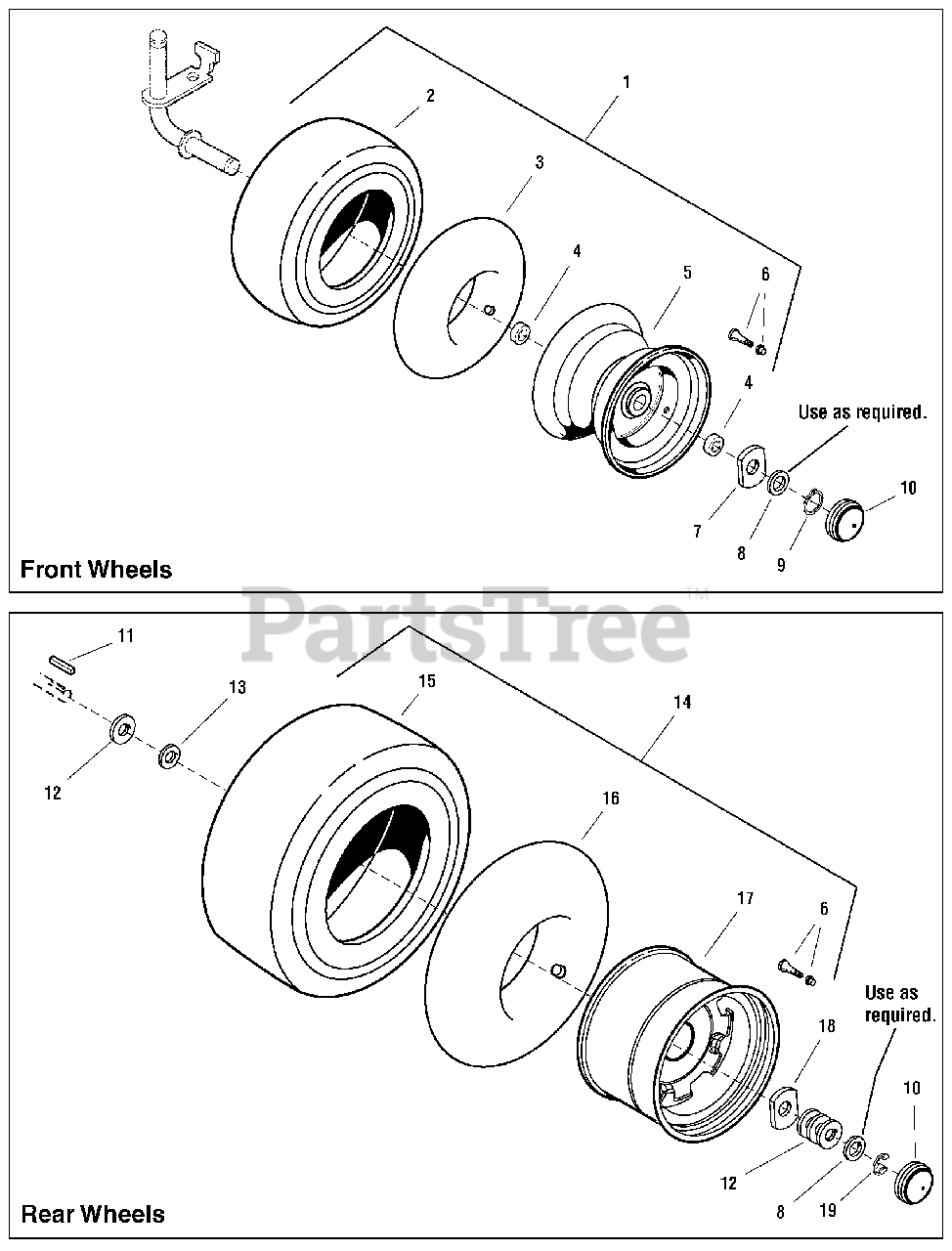

Wheels & Tires Group Parts Diagram

  • Title

1

Simplicity 1732202SM

WHEEL & TIRE ASSEMBLY, Front, (Includes Ref. Nos. 2, 3, 4, 5, & 6)

$213.99

$

In Stock, only 1 left!

0

2

Simplicity 1733882SM

TIRE, 15 x 6, Super Turf

$104.99

$

In Stock, only 1 left!

0

3

Simplicity 1664090SM

TUBE, Tire, Front, 4.10/3.50

$26.99

$

In Stock, only 3 left!

0

4

Simplicity 1717056SM

BEARING, Ball

$

$

Not available

5

Simplicity 1722837SM

WHEEL, 4-1/2" x 6"

$

$

Not available

6

Simplicity 2172353SM

VALVE STEM & CAP ASSEMBLY
(Superseded to 024373MA)

$

$

Not available

7

Simplicity 1722726SM

WASHER, Flat 1 (Double D)

$5.49

$

In Stock, only 1 left!

0

8

Simplicity 1919394SM

WASHER, 1, (As Required for All Front)
(Superseded to 703149)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1722676SM

CAP, Hub, Gray

$5.49

$

In Stock, Qty 20+

0

11

Simplicity 1729279SM

KEY, Parellel, 3/16 x 3/16 x 1-1/2
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

12

Simplicity 2860202SM

WASHER, 3/4

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 1960114SM

WASHER
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1726491SM

WHEEL & TIRE ASSEMBLY, (Includes Ref. Nos. 6, 15, 16 & 17)
(Superseded to 1755553YP)

$396.99

$

In Stock, only 2 left!

0

15

Simplicity 1727136SM

TIRE, 22 x 10, 10 Super Turf

$179.99

$

Usually ships in 2-12 days

0

16

Simplicity 2173477SM

TUBE, Tire, 20 x 8, Rear

$85.99

$

Usually ships in 2-12 days

0

17

Simplicity 1726492SM

WHEEL, 7 x 9.97, W/ 3/4 OD Shaft

$

$

Not available

18

Simplicity 1722717SM

WASHER, Special

$7.99

$

In Stock, Qty 20+

0

19

Simplicity 2827794SM

RING, "E" External

$3.49

$

In Stock, Qty 16

0
