2622 (2690971-02) - Massey Ferguson 44" Lawn Tractor, 22hp Seat Group Parts Diagram

44" Lawn Tractor, 22hp

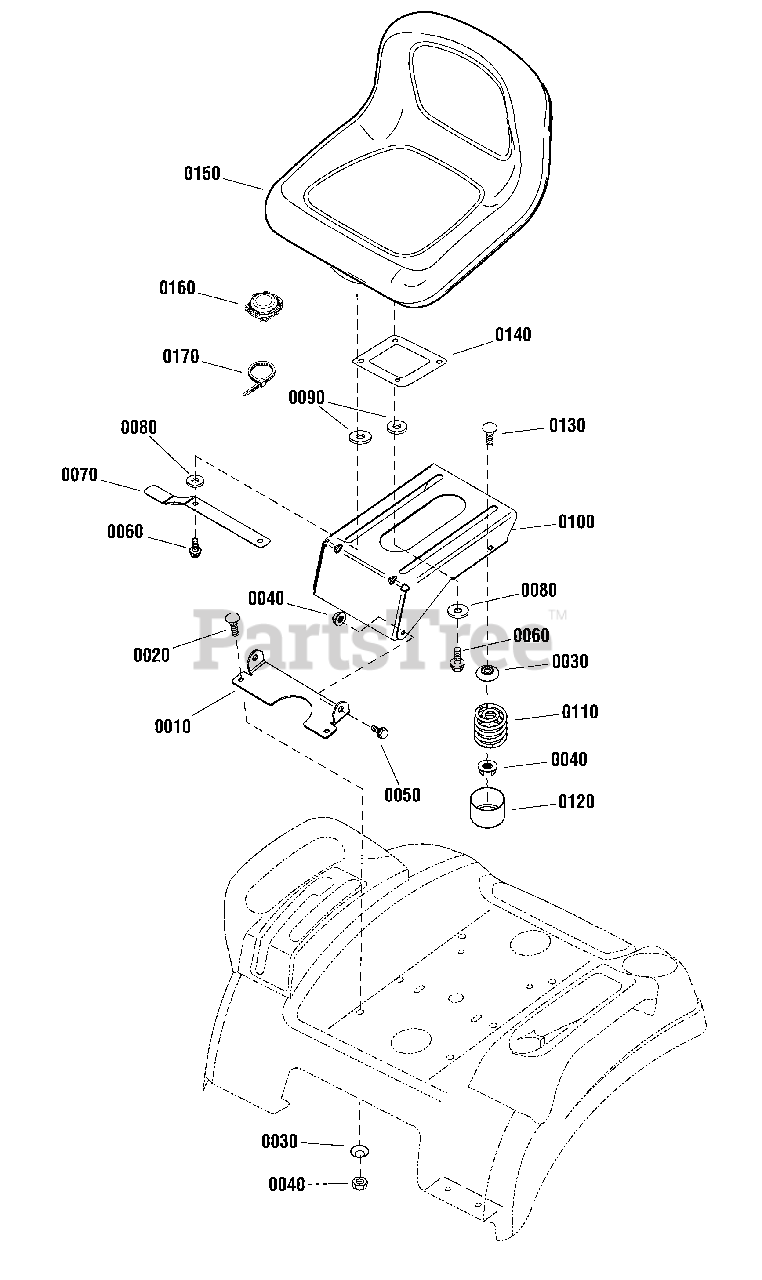

Seat Group Parts Diagram

  • Title

0010

Simplicity 1738233AYP

SUPPORT, Seat Pivot

$16.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1931334SM

BOLT, Carriage, 5/16-18 x 7/8, G5
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

0030

Simplicity 1709256SM

WASHER, Spring, 5/16 x 1-1/4

$5.99

$

In Stock, only 2 left!

0

0040

Simplicity 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0050

Simplicity 1729576SM

BOLT, Shoulder, 5/16-18 x 1-1/8
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0060

Simplicity 1930595SM

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 5

0

0070

Simplicity 1727268SM

LATCH, Seat

$8.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1919381SM

WASHER, 5/16 x 1
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

0090

Simplicity 1731300SM

SPACER, 5/16 x 1-1/4

$5.49

$

Usually ships in 2-12 days

0

0100

Simplicity 1755767BMYP

SEAT PAN

$152.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1704728SM

SPRING, Compression, 2" Long

$9.99

$

In Stock, only 2 left!

0

0120

Simplicity 1704724SM

COVER, Spring, 1-1/2 Long

$7.99

$

In Stock, only 4 left!

0

0130

Simplicity 1960282SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

0140

Simplicity 1739571AYP

SPACER, Plate

$13.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1752062YP

SEAT, 15" Back
(Superseded to 1761589YP)

$213.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1718981SM

SWITCH, Operator Present

$21.99

$

In Stock, only 1 left!

0

0170

Simplicity 703586

TIE, Self Locking

$4.99

$

Usually ships in 2-12 days

0
