2622 (2690971-02) - Massey Ferguson 44" Lawn Tractor, 22hp Seat Deck Group Parts Diagram

44" Lawn Tractor, 22hp

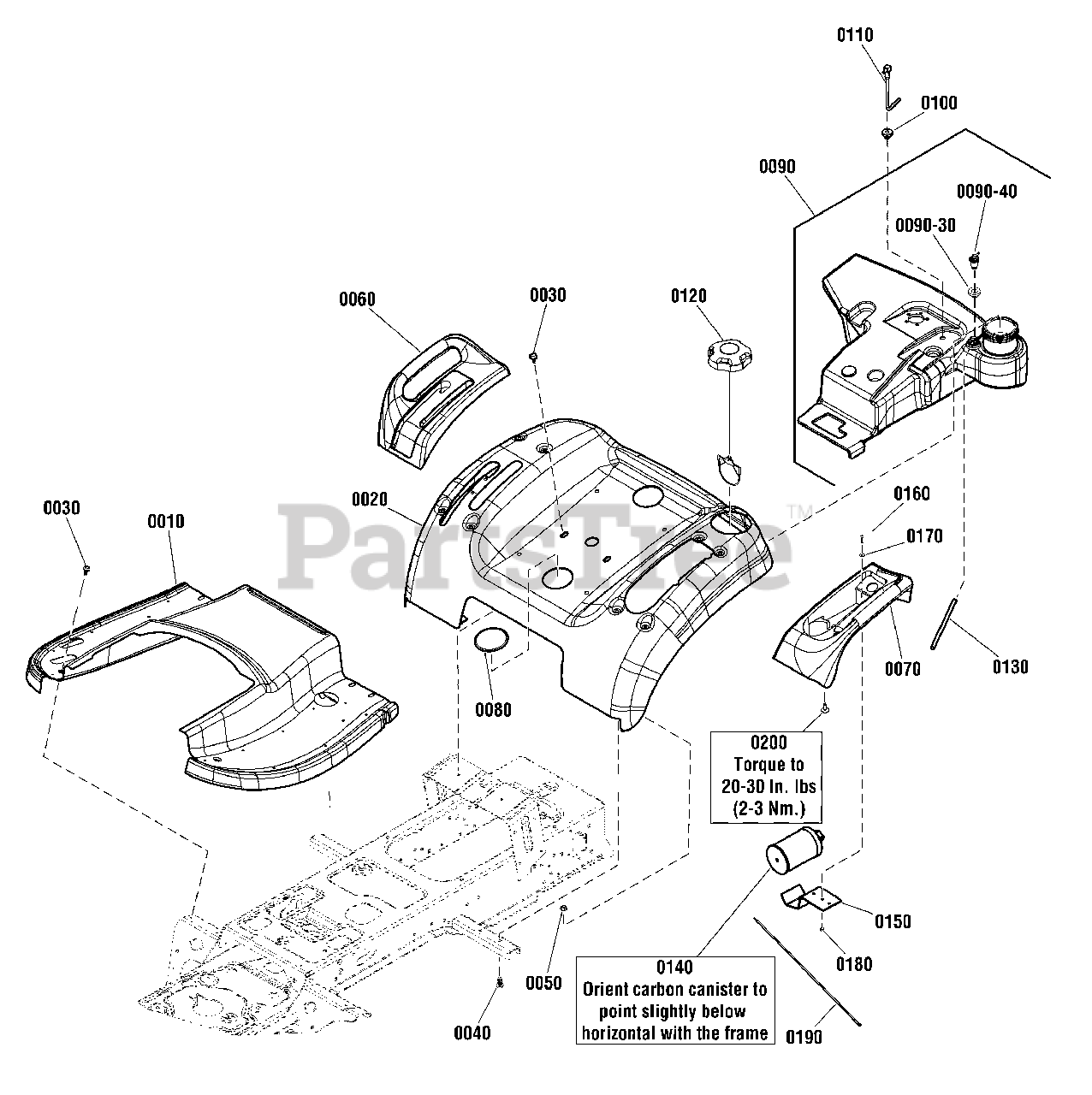

Seat Deck Group Parts Diagram

  • Title

0010

Simplicity 1722105DSM

TUNNEL

$201.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1722106DSM

DECK, Seat

$512.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1930601SM

SCREW, Hex Washer Head, Taptite,5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0040

Simplicity 770697

SCREW, Hex Flange, Whiz Lock, Dog Point, 5/16-18 x 1

$

$

Not available

0050

Simplicity 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0060

Simplicity 1722108SM

POD, RH
(Superseded to 1687790YP)

$103.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1729711SM

POD, With Cup Holder, LH
(Superseded to 1687789YP)

$103.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1722309SM

PLUG, Hole

$5.99

$

In Stock, Qty 12

0

0090

Simplicity 1751622YP

TANK, Fuel

$365.99

$

Usually ships in 2-12 days

0

0090-30

Simplicity 799624

GROMMET

$8.99

$

In Stock, Qty 18

0

0090-40

Simplicity 7104638YP

REMOTE VENT ASSEMBLY

$

$

Not available

0100

Simplicity 1654930SM

BUSHING, Fuel Tank

$7.99

$

In Stock, Qty 20+

0

0110

Simplicity 1726902SM

TUBE & ELBOW ASMY, Fuel Line w/Screen
(Superseded to 1757609YP)

$19.99

$

Usually ships in 2-12 days

0

0120

Simplicity 5103005YP

FUEL CAP
(Superseded to 1761224YP)

$48.99

$

In Stock, Qty 7

0

0130

Simplicity 7700552X4YP

VAPOR HOSE
(Superseded to 7700552X12YP)

$5.49

$

In Stock, only 2 left!

0

0140

Simplicity 1751599YP

CARBON CANISTER

$59.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1752099AYP

BRACKET, Canister Mounting

$20.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1960589SM

SCREW, Round Head Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0170

Simplicity 5023499SM

WASHER, #10 SAE

$3.49

$

Usually ships in 2-12 days

0

0180

Simplicity 1960591SM

NUT, Hex KEPS, #10-24

$3.49

$

In Stock, Qty 8

0

0190

Simplicity 1701011SM

TIE, Self Lock

$5.49

$

In Stock, only 2 left!

0

0200

Simplicity 2860664SM

SCREW, Hex SEMS Washer, Dog Point, 1/4-20 x.88

$5.99

$

In Stock, only 2 left!

0
