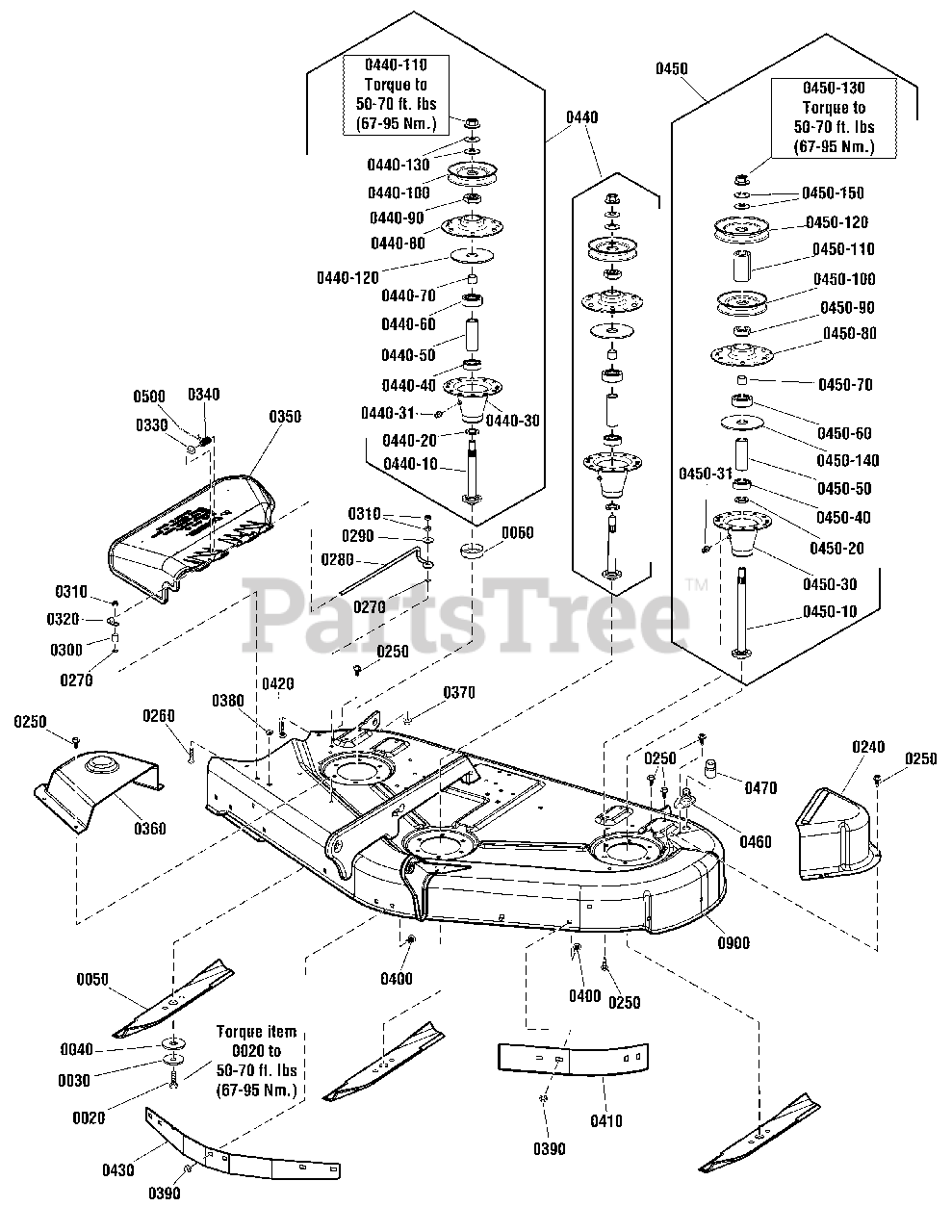

2622 (2690971-02) - Massey Ferguson 44" Lawn Tractor, 22hp 44" Mower Deck - Housing, Arbors & Blades Parts Diagram

44" Lawn Tractor, 22hp

44" Mower Deck - Housing, Arbors & Blades Parts Diagram

  • Title

0020

Simplicity 2823471SM

CAPSCREW, Hex Head, 7/16-14 x 1-1/4, GR8
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

0030

Simplicity 1656916SM

WASHER, Spring, 1/2 ID x 1-3/4 OD

$7.49

$

In Stock, Qty 20+

0

0040

Simplicity 1713089SM

WASHER, Hex

$4.99

$

In Stock, Qty 20+

0

0050

Simplicity 1727774ASM

BLADE, Mower
(Superseded to 1716696ASM)

$25.99

$

In Stock, Qty 20+

0

0060

Simplicity 1713196SM

SHIELD, Grass

$9.49

$

In Stock, Qty 20+

0

0240

Simplicity 1720560ASM

COVER, Arbor
(Superseded to 84002518)

$90.99

$

In Stock, only 1 left!

0

0250

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0260

Simplicity 1960633SM

BOLT, Carriage, 1/4-20 x 1-1/2, GR5
(Superseded to 704214)

$3.99

$

Usually ships in 2-12 days

0

0270

Simplicity 1960674SM

NUT, Push, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

0280

Simplicity 1706709SM

ROD, Deflector

$8.49

$

In Stock, Qty 20+

0

0290

Simplicity 703229

WASHER, 1/4

$4.49

$

In Stock, Qty 7

0

0300

Simplicity 1710703SM

SPACER, 5/16 x 1/2 x 5/8"

$6.49

$

In Stock, Qty 20+

0

0310

Simplicity 1920397SM

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0320

Simplicity 1704873SM

CLAMP, Wire

$4.49

$

In Stock, Qty 20+

0

0330

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 5

0

0340

Simplicity 7101082SM

SPRING, Torsion
(Superseded to 1759750YP)

$8.49

$

In Stock, Qty 20+

0

0350

Simplicity 1705449SM

DEFLECTOR

$122.99

$

In Stock, only 1 left!

0

0360

Simplicity 1715673SM

COVER, Arbor

$38.99

$

In Stock, only 1 left!

0

0370

Simplicity 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0380

Simplicity 1705115SM

PLUG, Button

$4.49

$

In Stock, only 1 left!

0

0390

Simplicity 1927557SM

NUT, Hex Flange, Whiz Lock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

0400

Simplicity 703125

BOLT, Carriage, 5/16-18 X 5/8, GR5

$3.99

$

In Stock, only 2 left!

0

0410

Simplicity 1724538ASM

BAFFLE, Blowout

$45.99

$

In Stock, only 1 left!

0

0420

Simplicity 1960633SM

BOLT, Carriage, 1/4-20 x 1-1/2, GR5
(Superseded to 704214)

$3.99

$

Usually ships in 2-12 days

0

0430

Simplicity 1734181ASM

BAFFLE, Front

$43.99

$

Usually ships in 2-12 days

0

0440

Simplicity 1751282YP

ARBOR SHAFT, Short

$131.99

$

Usually ships in 2-12 days

0

0440-10

Simplicity 1713195SM

SHAFT, Arbor

$31.99

$

In Stock, Qty 8

0

0440-20

Simplicity 1713619SM

WASHER, Cupped

$4.49

$

In Stock, Qty 20+

0

0440-30

Simplicity 1713338ASM

ARBOR HOUSING ASSEMBLY, Bottom

$41.99

$

In Stock, Qty 20+

0

0440-31

Simplicity 1704314SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0440-40

Simplicity 1705897SM

BEARING, Ball, 11/16 x 1-9/16 x 15/32

$8.49

$

In Stock, Qty 20+

0

0440-50

Simplicity 1732544SM

SPACER, 5/8 x 1 x 2-5/8"

$5.49

$

In Stock, Qty 20+

0

0440-60

Simplicity 2108202SM

BEARING, Ball, 3/4 ID x 1-3/4 OD

$11.99

$

In Stock, Qty 20+

0

0440-70

Simplicity 1715724SM

SPACER, 21/32 x 3/4 x 5/8

$9.49

$

In Stock, Qty 20+

0

0440-80

Simplicity 1655729ASM

HOUSING, Arbor, Top

$14.99

$

Usually ships in 2-12 days

0

0440-90

Simplicity 1713197SM

HUB, Pulley, Center & RH

$6.99

$

In Stock, Qty 20+

0

0440-100

Simplicity 1713098SM

PULLEY, 4.25 OD x 1 ID

$19.99

$

In Stock, Qty 20+

0

0440-110

Simplicity 1714419SM

NUT, Hex Flange, 9/16-18

$5.99

$

In Stock, Qty 20+

0

0440-120

Simplicity 1707335SM

GASKET, Foam

$5.99

$

In Stock, Qty 20+

0

0440-130

Simplicity 1713675SM

WASHER, Belleville, 1/2

$4.49

$

In Stock, Qty 20+

0

0450

Simplicity 1751283YP

ARBOR SHAFT, Long

$

$

Not available

0450-10

Simplicity 1713612SM

SHAFT, Arbor

$

$

Not available

0450-20

Simplicity 1713619SM

WASHER, Cupped

$4.49

$

In Stock, Qty 20+

0

0450-30

Simplicity 1713338ASM

ARBOR HOUSING ASSEMBLY, Bottom

$41.99

$

In Stock, Qty 20+

0

0450-31

Simplicity 1704314SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0450-40

Simplicity 1705897SM

BEARING, Ball, 11/16 x 1-9/16 x 15/32

$8.49

$

In Stock, Qty 20+

0

0450-50

Simplicity 1732544SM

SPACER, 5/8 x 1 x 2-5/8"

$5.49

$

In Stock, Qty 20+

0

0450-60

Simplicity 2108202SM

BEARING, Ball, 3/4 ID x 1-3/4 OD

$11.99

$

In Stock, Qty 20+

0

0450-70

Simplicity 1715724SM

SPACER, 21/32 x 3/4 x 5/8

$9.49

$

In Stock, Qty 20+

0

0450-80

Simplicity 1655729ASM

HOUSING, Arbor, Top

$14.99

$

Usually ships in 2-12 days

0

0450-90

Simplicity 1713533SM

HUB, 0.681 ID x 1.50 OD x 1/2"

$9.99

$

In Stock, Qty 20+

0

0450-100

Simplicity 1713098SM

PULLEY, 4.25 OD x 1 ID

$19.99

$

In Stock, Qty 20+

0

0450-110

Simplicity 1713158SM

HUB, 0.65 ID x 1.50 OD x 2.4"

$18.99

$

In Stock, Qty 20+

0

0450-120

Simplicity 1732951SM

PULLEY, 1 ID x 4.60 OD

$19.99

$

In Stock, Qty 20+

0

0450-130

Simplicity 1714419SM

NUT, Hex Flange, 9/16-18

$5.99

$

In Stock, Qty 20+

0

0450-140

Simplicity 1707335SM

GASKET, Foam

$5.99

$

In Stock, Qty 20+

0

0450-150

Simplicity 1713675SM

WASHER, Belleville, 1/2

$4.49

$

In Stock, Qty 20+

0

0460

Simplicity 1735716YP

ADAPTER, Washout Port
(Superseded to 1687721YP)

$13.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1756246YP

CONNECTOR, Washout Port

$15.99

$

In Stock, only 1 left!

0

0500

Simplicity 1723323SM

CAP, Spring End

$4.99

$

In Stock, only 1 left!

0

0900

Simplicity 1687717YP

MOWER DECK, 44

$1624.99

$

Usually ships in 2-12 days

0
