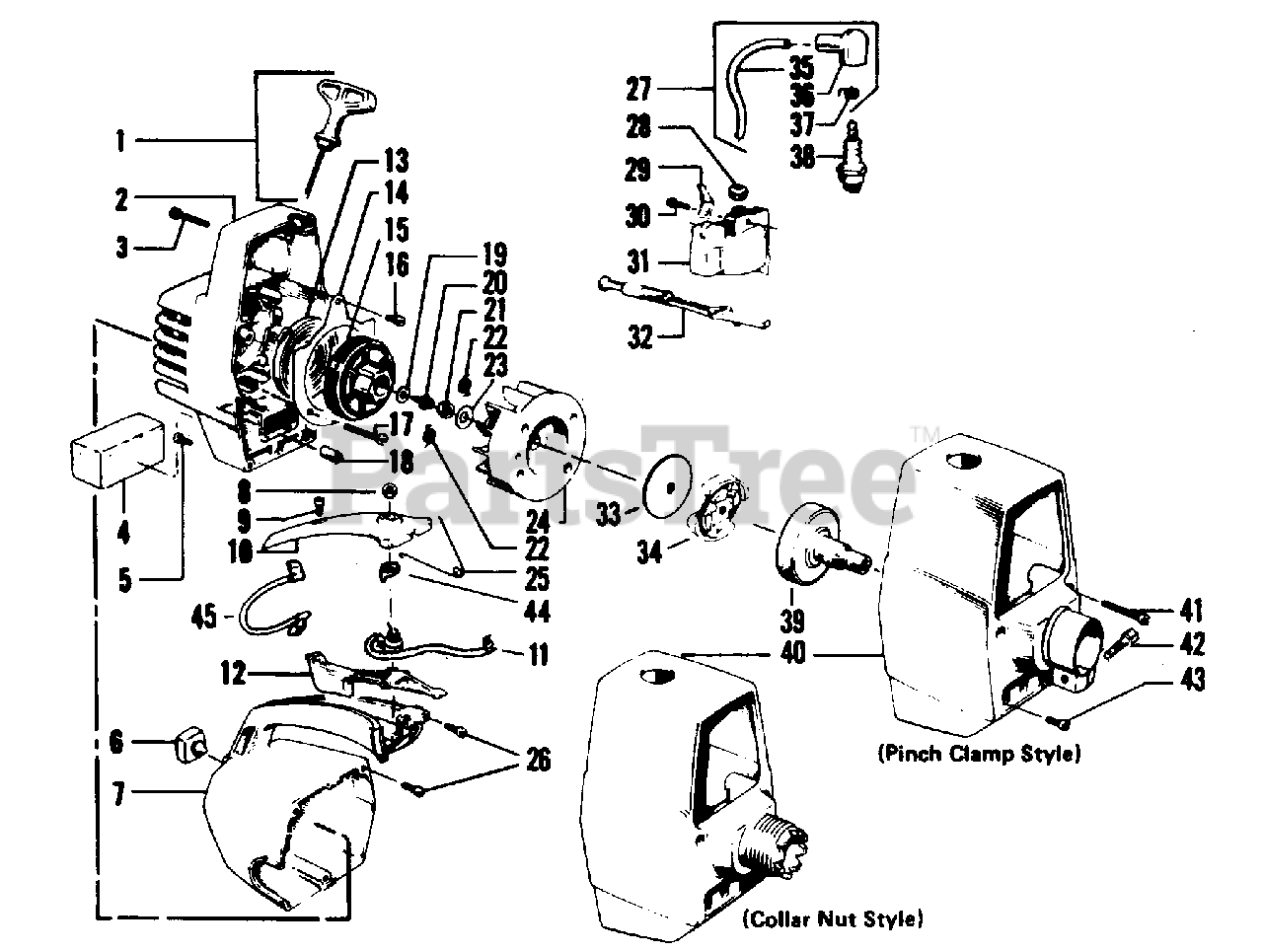

2620 - Weed Eater String Trimmer STARTER & SHROUDS Parts Diagram

String Trimmer

STARTER & SHROUDS Parts Diagram

  • Title

1

Rope & Handle, Starter See Service Ref. 4,7

$

$

Not available

2

Poulan 530069178

Fan Housing Kit (Incl. 14, 16, 17, 18)

$46.99

$

Usually ships in 3-10 days

0

3

Poulan 530015376

Screw - #10-24 x 1-1/2" - Fil. Hd.- Fan Housing Top

$

$

Not available

4

Poulan 530024371

Air Filter

$7.49

$

Usually ships in 3-10 days

0

5

Poulan 530015168

Screw - #10 - 24 x 5/8" - Fil. Hd.- Fan Housing Bottom

$

$

Not available

6

Poulan 530024436

Bumper - Fuel Tank Housing

$

$

Not available

7

Poulan 530024656

Handle and Fuel Tank Housing

$

$

Not available

8

Poulan 530023575

Nut - Grounding Switch
(Superseded to 530002582)

$

$

Not available

9

Poulan 530015247

Screw - #8 - 16 x 3/4" - Pan Hd. - Handle Cover

$

$

Not available

10

Poulan 530024665

Handle Cover

$

$

Not available

11

Poulan 530069182

Kit Grounding Switch (Incl. #8, 29, 44, 45)

$

$

Not available

12

Poulan 530024365

Trigger - Throttle

$

$

Not available

13

Starter Recoil Spring - See Service Ref. 4

$

$

Not available

14

Poulan 530026035

Air Baffle

$

$

Not available

15

Starter Pulley (Inc. 19) See Service Ref. 4

$

$

Not available

16

Poulan 530015373

Screw - #10 - 24 x 1/4" - Fil. Hd. Air Baffle

$

$

Not available

17

Poulan 530015305

Screw - #10 - 24 x 1-3/16" Fil. Hd.

$1.99

$

Usually ships in 3-10 days

0

18

Poulan 530026122

Spacer

$2.49

$

Usually ships in 3-10 days

0

19

Poulan 530015123

Washer - #10 - Starter Pulley Screw

$4.99

$

In Stock, only 4 left!

0

20

Poulan 530015036

Screw - #10 - 24 x 1/2" - Starter Pulley
(Superseded to 530016141)

$5.99

$

Usually ships in 3-10 days

0

21

Poulan 530626605

Nut - Flywheel

$5.99

$

Usually ships in 3-10 days

0

22

Poulan 530042059

Spring - Starter Dog
(Superseded to 530023817)

$6.49

$

In Stock, Qty 5

0

23

Poulan 530015127

Washer - Flywheel

$6.49

$

Usually ships in 3-10 days

0

24

Poulan 530039114

Flywheel Assembly (Incl. # 22)

$

$

Not available

25

Poulan 530024461

Spring - Trigger

$3.99

$

Usually ships in 3-10 days

0

26

Poulan 530015367

Screw - #10 - 14 x 3/4" - Fan Housing to Handle and Fuel Tank
(Superseded to 530015872)

$6.49

$

In Stock, Qty 17

0

27

Poulan 502039103

High Tension Lead Assembly (Inc. 35,36,37)
(Superseded to 502271102)

$364.99

$

Usually ships in 3-10 days

0

28

Poulan 530024435

Grommet - Plug Wire

$3.99

$

Usually ships in 3-10 days

0

29

Poulan 530025995

Electrical Tab - 45ø

$0.99

$

Usually ships in 3-10 days

0

30

Poulan 530015128

Screw - #8 - 32 x 3/4" - Fil. Hd. - Ignition Module
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

31

Poulan 530069181

Kit - Ignition Module

$

$

Not available

32

Poulan 530024303

Choke Knob

$

$

Not available

33

Poulan 530069196

Kit - Clutch Washer - See Serv. Ref. 6.

$

$

Not available

34

Poulan 530069195

Kit - Clutch Assembly (Incl. Washer) - See Service Ref. 2 & 6.

$

$

Not available

35

Poulan 530039082

High Tension Lead Wire

$

$

Not available

36

Poulan 530003934

Boot - Spark Plug

$

$

Not available

37

Poulan 530003933

Connector - Spark Plug Lead
(Superseded to 507475326)

$

$

Not available

38

Poulan 530030077

Spark Plug (Champion CJ-14)

$

$

Not available

39

Poulan 530010797

Drum & Coupling Assembly

$

$

Not available

40

Shroud

$

$

Not available

40

Poulan 530011695

Collar Nut Style

$

$

Not available

40

Poulan 530011799

Pinch Clamp Style

$

$

Not available

41

Poulan 530015376

Screw - #10 - 24 x 1-1/2" - Shroud Top

$

$

Not available

42

Poulan 530093802

BOLT

$

$

Not available

Poulan 506093802

HAND GUARD

$

$

Not available

43

Poulan 530015168

Screw - 10 - 24 x 5/8" - Shroud Bottom

$

$

Not available

44

Poulan 530024569

Washer - Grounding Switch

$

$

Not available

45

Poulan 530039122

Wire - Lead Grounding Switch

$3.99

$

Usually ships in 3-10 days

0
