2620 - Weed Eater String Trimmer POWER UNIT Parts Diagram

String Trimmer

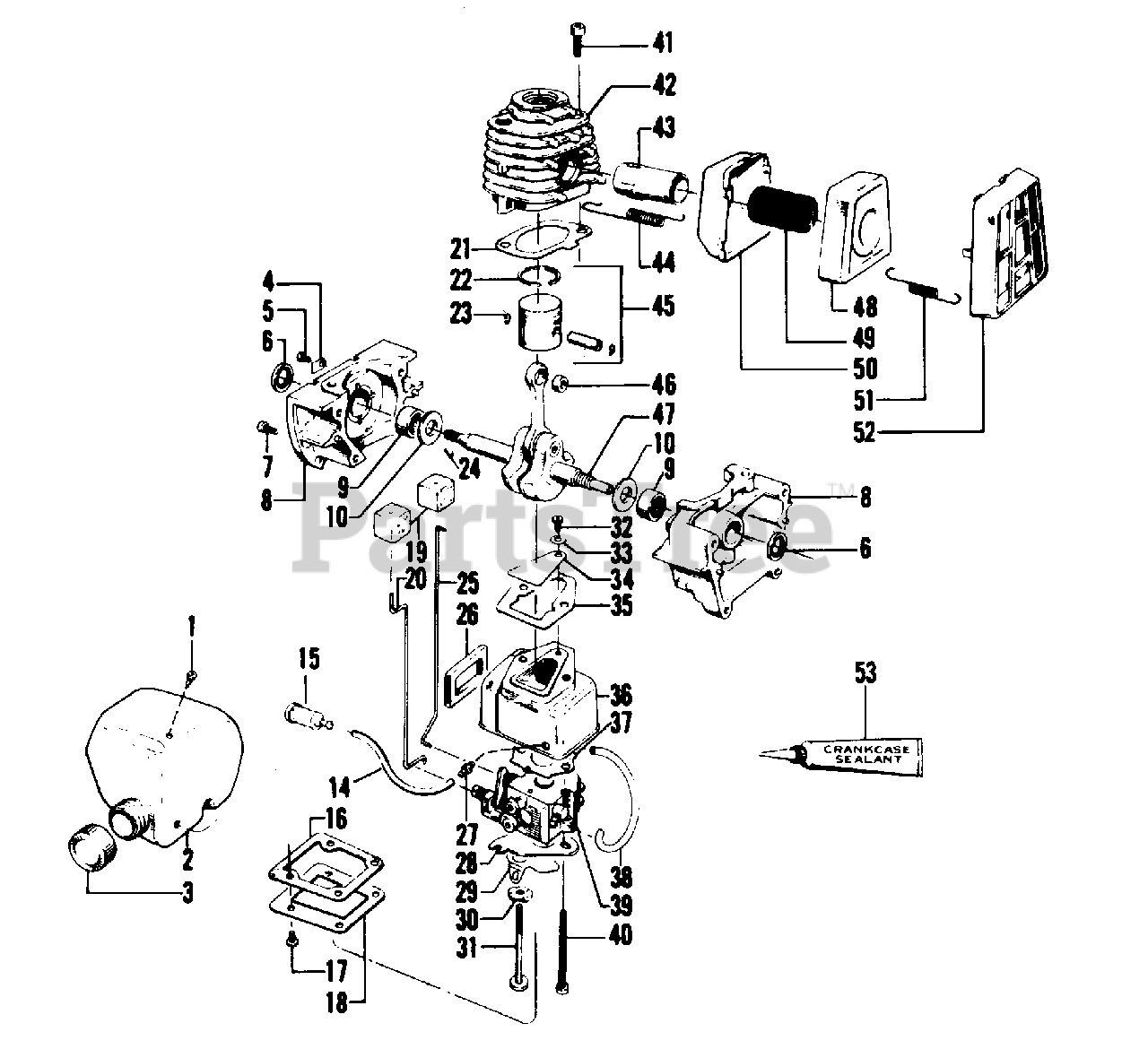

POWER UNIT Parts Diagram

  • Title

1

Poulan 530026119

Duck Bill Valve

$5.99

$

In Stock, only 4 left!

0

2

Poulan 530010776

Fuel Tank Ass'y (Incl. #1, 3, 14 & 15)

$

$

Not available

3

Poulan 530010729

Fuel Cap (Incl. O-Ring)
(Superseded to 530014347)

$9.49

$

In Stock, Qty 15

0

4

Poulan 530024651

Clamp - Choke Wire

$

$

Not available

5

Poulan 530015004

Screw - #8 - 32 x 5/16" - Choke Wire Clamp

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 530019059

Seal - Crankcase

$

$

Not available

7

Poulan 530015168

Screw - #10 - 24 x 5/8" - Crankcase

$

$

Not available

8

Poulan 530010316

Crankcase Assembly (Inc.6, 9 & Qty 4 of 7)

$

$

Not available

9

Poulan 530032058

Bearing - Crankshaft
(Superseded to 530032029)

$10.99

$

In Stock, only 2 left!

0

10

Poulan 530015351

Washer - Crankshaft Thrust

$6.49

$

Usually ships in 3-10 days

0

14

Poulan 530021042

Fuel Line

$

$

Not available

15

Poulan 530091878

Fuel Pick-Up Assembly

$

$

Not available

16

Poulan 530019112

Gasket - Carburetor Case Cover

$

$

Not available

17

Poulan 530015235

Screw - #8 - 18 x 9/16" - Carburetor Case Cover

$

$

Not available

18

Cover - Carburetor Case -See Service Ref. 5

$

$

Not available

19

Poulan 530023373

Boot - Throttle - Choke Wire

$

$

Not available

20

Choke Wire - See Service Ref. 5

$

$

Not available

21

Poulan 530019111

Gasket - Cylinder
(Superseded to 530069219)

$

$

Not available

22

Poulan 530024929

Piston Ring

$

$

Not available

23

Poulan 530015162

Retainer - Wrist Pin

$6.49

$

In Stock, only 1 left!

0

24

Poulan 530015126

Key - Flywheel

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 530024902

Throttle Wire

$

$

Not available

26

Poulan 530019105

Seal - Carburetor Case

$

$

Not available

27

Poulan 530025472

Fuel Line Fitting

$3.49

$

Usually ships in 3-10 days

0

28

Choke Wire Guide Plate See Service Ref. 5

$

$

Not available

29

Poulan 530024558

Choke Shutter

$3.99

$

Usually ships in 3-10 days

0

30

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

31

Poulan 530015404

Screw - #10 - 24 x 2-1/8" - Fil. Hd. - Carburetor Shoulder

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 530015241

Screw - #6 - 19 x 5/16" - Pan Hd. Reed Valve

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530023367

Washer - #6 - Reed Valve Screw

$

$

Not available

34

Poulan 530024438

Reed Valve

$

$

Not available

35

Poulan 530019108

Gasket - Carburetor Housing to Crankcase

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 530024409

Carburetor Housing

$

$

Not available

37

Poulan 530019115

Carburetor Gasket

$

$

Not available

38

Poulan 530021043

Fuel Line - Carburetor

$

$

Not available

39

Poulan 530035183

Carburetor - See Service Ref. 3

$

$

Not available

40

Poulan 530015379

Screw - #10 - 24 x 1-7/8" - Carburetor

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530015239

Screw - #1/4 - 20 x 3/4" - Cylinder

$2.49

$

Usually ships in 3-10 days

0

42

Poulan 530012071

Cylinder

$

$

Not available

43

Poulan 530024363

Diffuser - Muffler

$

$

Not available

44

Poulan 530024903

Spring - Muffler Attachment
(Superseded to 530036409)

$

$

Not available

45

Poulan 530022238

Piston Assembly (Inc. 22, 23, & Pin)

$

$

Not available

46

Poulan 530032057

Bearing - Wrist Pin

$

$

Not available

47

Poulan 530022202

Crankshaft & Rod Assembly

$

$

Not available

48

Poulan 530024361

Cover - Muffler

$

$

Not available

49

Poulan 530024364

Screen - Spark Arresting

$

$

Not available

50

Poulan 530024362

Body - Muffler

$

$

Not available

51

Poulan 530024932

Spring - Muffler Guard

$

$

Not available

52

Poulan 530024855

Guard - Muffler

$7.49

$

Usually ships in 3-10 days

0

53

Poulan 530030054

Crankcase Sealant - 3 oz. Tube (Optional)

$

$

Not available
