2620 (31BM63P3711) - Troy-Bilt Storm 26" Snow Thrower (2015) Extended Chute Parts Diagram

Storm 26" Snow Thrower

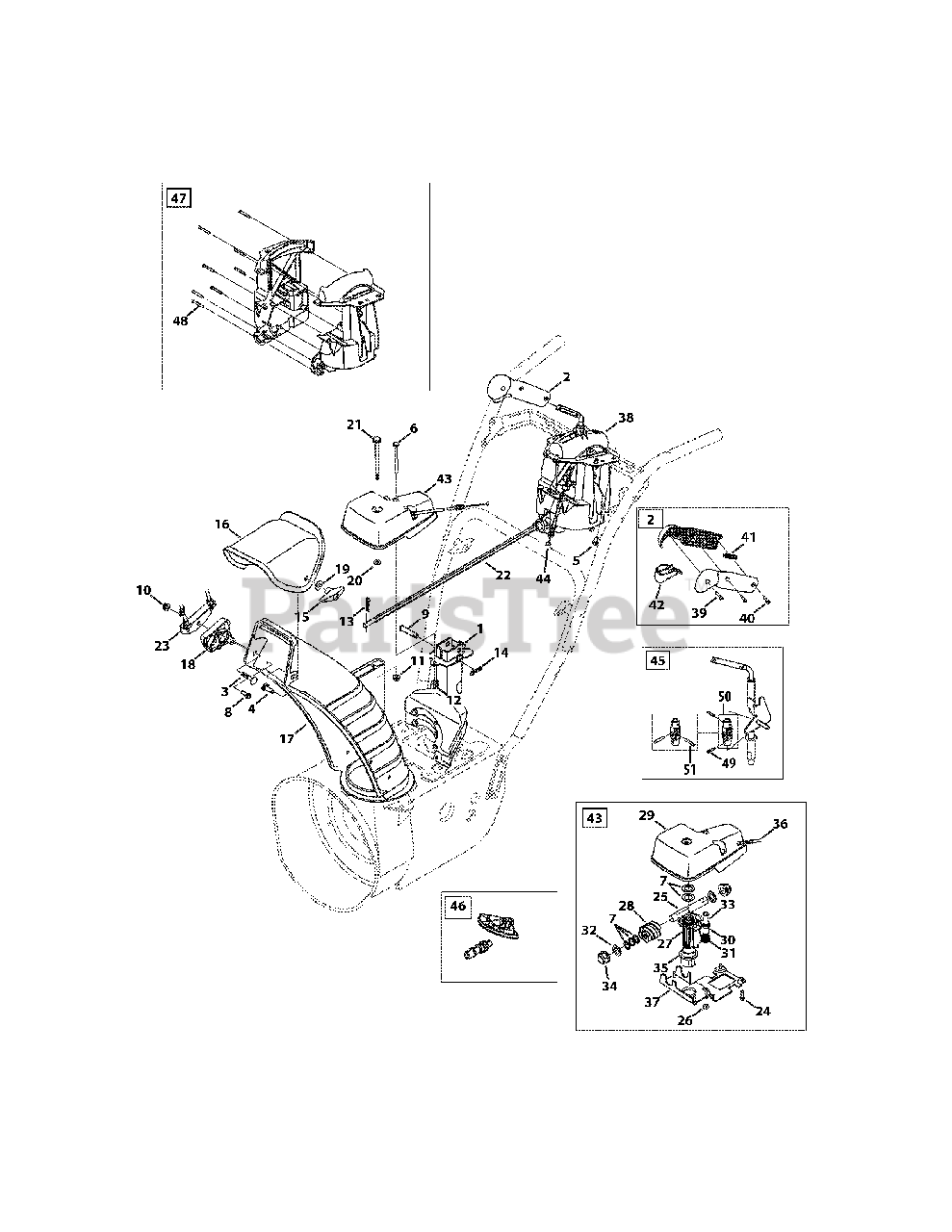

Extended Chute Parts Diagram

  • Title
1

Troy-Bilt 684-04311A-0637

Chute Support Bracket (small block)

$42.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 753-06151

Chute Control Trigger Kit, 2-Way & 4-Way

$28.99

$

In Stock, Qty 8

0

3

Troy-Bilt 710-0451

Bolt, Carriage, 5/16-18 x .750, 2-Way

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-04071

Bolt, Carrier, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 10

0

5

Troy-Bilt 710-04187A

Screw, Hi-Lo, 1/4-15 x 0.50

$6.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-04370

Hex Head Screw, 1/4-20 x 3.00

$4.49

$

In Stock, Qty 8

0

7

Troy-Bilt 736-04337

Shim Washer, .632 x 1.00 x .010

$3.99

$

In Stock, Qty 10

0

8

Troy-Bilt 710-0895

Screw, Hi-Lo, 1/4-15 x 0.750

$6.49

$

In Stock, Qty 10

0

9

Troy-Bilt 711-04469A

Clevis Pin, 3/8 x 1.87

$5.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

14

Troy-Bilt 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 920-0284

Wing Knob, 5/16-18
(Superseded to 720-0284)

$

$

Not available

16

Troy-Bilt 731-04426A

Chute, Upper, 2-Way
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 9

0

17

Troy-Bilt 731-06440A

Chute, Lower

$51.99

$

In Stock, Qty 14

0

18

Troy-Bilt 731-06451

Cable Guide, Chute Tilt

Note: (if equipped)

$4.99

$

In Stock, Qty 12

0

19

Troy-Bilt 936-0159

Washer, Flat, .349 x .879
(Superseded to 736-0159)

$

$

Not available

20

Troy-Bilt 736-04446

Washer, Flat, .25 x .630

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 738-04367

Screw, Shoulder, .312 x 3.5 x 1/4-20

$4.99

$

In Stock, Qty 8

0

22

Troy-Bilt 747-05116

Chute Rod, 3/8 Hex

$30.99

$

In Stock, Qty 10

0

23

Troy-Bilt 784-5594-0637

Cable Bracket

Note: (if equipped)

$11.99

$

In Stock, only 3 left!

0

24

Troy-Bilt 710-04373A

Screw, 12-16 x .75

$4.49

$

In Stock, Qty 15

0

25

$10.99

$

In Stock, only 4 left!

0

26

Troy-Bilt 712-0896

Hexlock Nut, 1/4-28

$4.99

$

In Stock, Qty 6

0

27

$10.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 717-04672

Worm
(Superseded to 717-04672A)

$9.49

$

In Stock, only 2 left!

0

29

Troy-Bilt 731-06906

Gear Cover

$19.99

$

Usually ships in 3-6 days

0

30

$4.99

$

In Stock, Qty 9

0

31

Troy-Bilt 732-04638D

Torsion Spring, .721 ID x .394

$3.49

$

In Stock, only 1 left!

0

32

Troy-Bilt 736-0290

Washer, Flat, .625 x 1.0 x .067

$6.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 738-04391

Screw, Shoulder, .34 x .95 x 1/4-28

$5.99

$

In Stock, only 3 left!

0

34

Troy-Bilt 941-0225

Hex Bearing

$7.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 741-04388A

Flange Bearing

$7.49

$

In Stock, Qty 8

0

36

$34.99

$

In Stock, Qty 13

0

37

$28.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 984-04348

Chute Control, 2-Way

$130.99

$

In Stock, only 2 left!

0

39

Troy-Bilt 710-04353

Screw, #8 x 1.00

$6.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 710-04879

Screw, 8-32 x .750

$3.49

$

Usually ships in 3-6 days

0

41

Troy-Bilt 731-04893A

Joystick Plug

$6.49

$

Usually ships in 3-6 days

0

42

Troy-Bilt 731-07031

Joystick Trigger

$7.49

$

Usually ships in 3-6 days

0

43

Troy-Bilt 918-04801B

Chute Rotation Gearbox

$128.99

$

In Stock, Qty 10

0

44

Troy-Bilt n/a

4-Way Cable

Note: (Not used on this model)

$

$

Currently unavailable

45

Troy-Bilt 984-04347

Shift Assembly, 2-Way

$67.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 753-06152

Gear Set Assembly

$25.99

$

In Stock, only 2 left!

0

47

Troy-Bilt 753-06154

Handle Housing Assembly, 2-Way

$52.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 710-1256

Screw, #8-18 x 1.250

$5.99

$

In Stock, only 2 left!

0

49

$5.49

$

In Stock, Qty 14

0

50

Troy-Bilt 684-04350

Block, Asm Joint

$29.99

$

In Stock, only 4 left!

0

51

Troy-Bilt 715-0150

Pin, Roll

$4.49

$

In Stock, Qty 12
