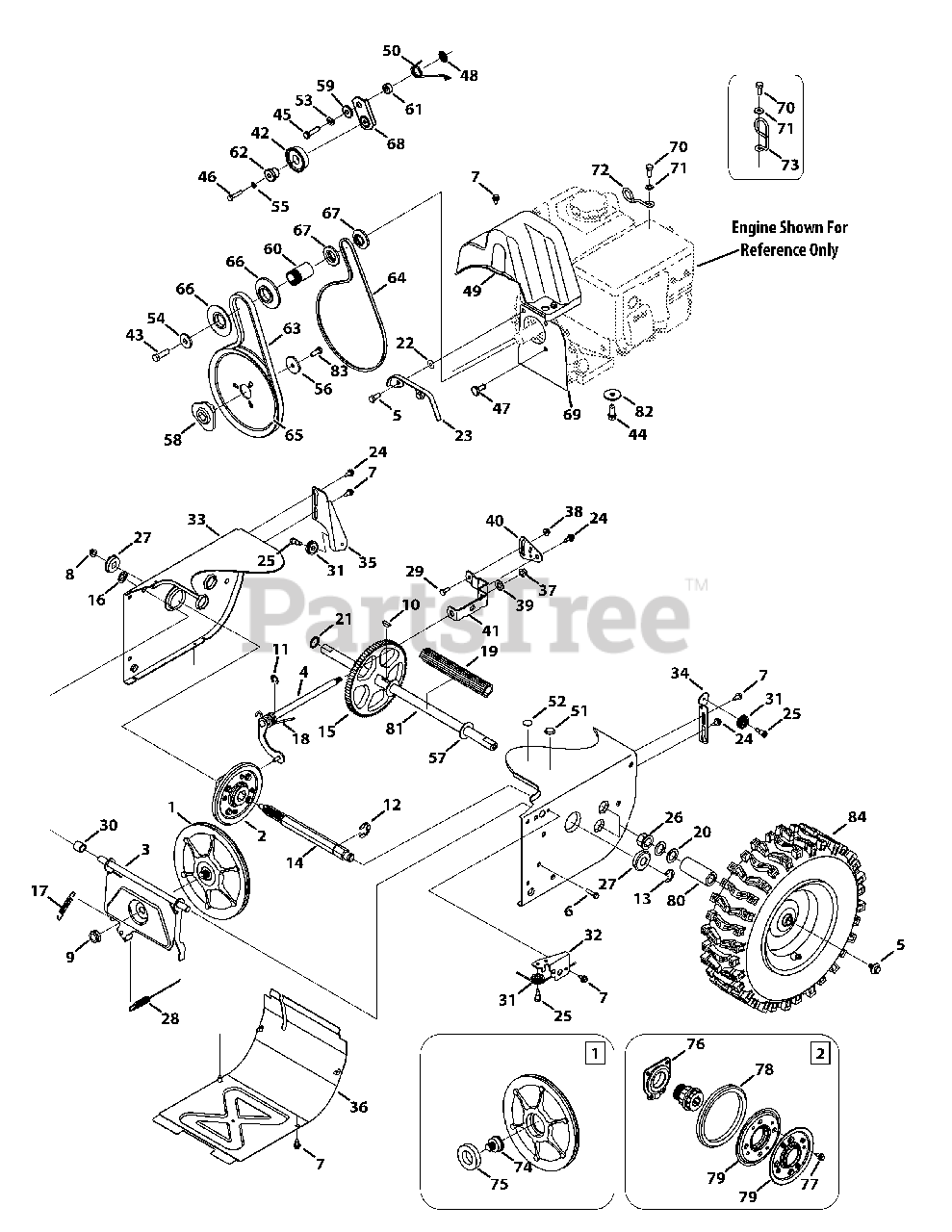

2620 (31BM63P3711) - Troy-Bilt Storm 26" Snow Thrower (2013) Drive System Parts Diagram

Storm 26" Snow Thrower

Drive System Parts Diagram

  • Title

1

Troy-Bilt 656-04055

Disc Assembly, Friction Wheel
(Superseded to 656-04055A)

$59.99

$

In Stock, Qty 15

0

2

Troy-Bilt 684-04153C

Friction Wheel Assembly, 5.5 OD

$101.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 684-04154B-0637

Friction Wheel Support Bracket

$41.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 684-04156A

Rod Shift Assembly

$61.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-05339

Screw, 5/16-24 x .750
(Superseded to 710-05339A)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0788

Taptite Screw, 1/4-20 x 1.000

$7.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 710-1652

Taptite Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 914-0126

Hi-pro Key, 3/16 x 3/4 Dia.
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 12

0

11

Troy-Bilt 916-0104

E-Ring

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 716-0136

Retaining E-Ring, .875 Dia.

$8.99

$

In Stock, Qty 18

0

13

Troy-Bilt 916-0231

E-Ring, .750 Dia.
(Superseded to 716-0231)

$

$

Not available

14

Troy-Bilt 917-04209A

Hex Shaft, 7-Tooth
(Superseded to 917-04209B)

$143.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 917-04230

Gear, 80-Tooth

$108.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 726-0221

Speed Nut, .500

$6.49

$

In Stock, only 2 left!

0

17

Troy-Bilt 932-0264

Extension Spring

$4.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 732-04311A

Torsion Spring, .750 x .968

$10.99

$

In Stock, only 3 left!

0

19

Troy-Bilt 731-08181

Axle Spacer

$10.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 936-0287

Flat Washer, .793 x 1.24 x .060
(Superseded to 736-0287)

$

$

Not available

21

Troy-Bilt 736-04161

Flat Washer, .75 x 1.00 x .060

$6.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 936-0140

Washer, Flat, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

23

Troy-Bilt 731-07101

Belt Cover

$10.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 738-04184A

Shoulder Screw, .368 x .113, 1/4-20

$6.99

$

In Stock, Qty 5

0

25

Troy-Bilt 738-0924A

Shoulder Screw, 1/4-28, .340 x .355

$6.99

$

In Stock, Qty 5

0

26

Troy-Bilt 941-0245

Hex Flange Bearing

$9.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 941-0563

Ball Bearing, 17 x 40 x 12

$36.99

$

In Stock, Qty 7

0

28

Troy-Bilt 946-05067

Wheel Clutch Cable, 44.955"

$25.99

$

In Stock, Qty 14

0

29

Troy-Bilt 710-0751

Hex Head Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 748-0190

Spacer, .508 ID x .75 OD x .68

$6.49

$

In Stock, Qty 11

0

31

Troy-Bilt 756-0625

Cable Roller

$9.49

$

In Stock, Qty 14

0

32

Troy-Bilt 790-00096A-0637

Auger Cable Front Guide Bracket
(Superseded to 790-00096B-0637)

$9.49

$

In Stock, only 2 left!

0

33

Troy-Bilt 790-00180C-0638

Frame
(Superseded to 790-00180E-0638)

$160.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 790-00206A-0637

Auger Cable Guide Bracket
(Superseded to 790-00206B)

$8.49

$

In Stock, only 1 left!

0

35

Troy-Bilt 790-00207C

Drive Cable Guide Bracket
(Superseded to 790-03997)

$5.49

$

In Stock, Qty 6

0

36

Troy-Bilt 790-00316-0638

Frame Cover

$47.99

$

In Stock, Qty 5

0

37

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 936-3015

Washer, Flat, .469 x .875 x .105

$4.49

$

In Stock, Qty 19

0

40

Troy-Bilt 790-00217A-0637

Speed Selector Pivot Bracket
(Superseded to 790P01117)

$53.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 790-00218A-0637

Speed Selector Shift Bracket
(Superseded to 790-00218A)

$47.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 684-04169

Idler Pulley Assembly

$34.99

$

In Stock, Qty 8

0

43

Troy-Bilt 710-0191

Hex Screw, 3/8-24 x 1.25

$4.99

$

In Stock, Qty 9

0

44

Troy-Bilt 710-0654A

Sems Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 710-0672

Hex Screw, 5/16-24 x 1.25

$4.49

$

In Stock, Qty 16

0

46

Troy-Bilt 710-0809

Hex Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 17

0

47

Troy-Bilt 738-04439

Shoulder Screw, 5/16-24 x .5

$3.99

$

In Stock, Qty 5

0

48

Troy-Bilt 926-04012

Push-on Nut, .25 Dia.
(Superseded to 726-04012)

$

$

Not available

49

Troy-Bilt 731-05353

Belt Cover, 4-Way
(Superseded to 731-05353B)

$

$

Not available

50

Troy-Bilt 732-04308A

Torsion Spring, .850 ID x .333
(Superseded to 732-04308C)

$5.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 735-04099

Plug, 3/8 ID

$5.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 735-04100

Plug, 1/2 ID

$5.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

54

Troy-Bilt 736-3082A

Flat Washer, .45 x 1.5 x .172

$9.99

$

In Stock, Qty 16

0

55

Troy-Bilt 936-0329

Washer, Lock, 1/4

$4.49

$

In Stock, Qty 9

0

56

Troy-Bilt 736-0505

Flat Washer, .34 x 1.50 x .150

$6.49

$

In Stock, Qty 11

0

57

Troy-Bilt 736-0188

Washer, Flat, .760 x 1.49 x .060

$4.49

$

In Stock, Qty 20+

0

58

Troy-Bilt 748-04053A

Adapter Pulley, .75 Dia.

$22.99

$

In Stock, only 3 left!

0

59

Troy-Bilt 748-04112B

Shoulder Spacer, .3175 x .5 x .0975

$4.49

$

In Stock, Qty 9

0

60

Troy-Bilt 750-04303

Spacer, .875 ID x 1.185 OD

$17.99

$

In Stock, only 4 left!

0

61

Troy-Bilt 750-04477A

Spacer, .340 x .750 x .330

$5.49

$

In Stock, only 1 left!

0

62

Troy-Bilt 750-04571

Shoulder Space, .260 x .785 x .538

$6.99

$

In Stock, only 1 left!

0

63

Troy-Bilt 954-04050

Auger Drive Belt, Standard
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

64

Troy-Bilt 954-04260

Wheel Drive Belt, Standard

$28.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 756-04109

Auger Drive Pulley, 8.1 x .5

$54.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 756-04113

Pulley Half, 2.600 OD
(Superseded to 756-06563)

$3.99

$

In Stock, only 2 left!

0

67

Troy-Bilt 756-04252

Pulley Half, 3/8 x 1.716 OD

$6.49

$

In Stock, only 2 left!

0

68

Troy-Bilt 790-00208D

Wheel Drive Idler Bracket

$8.99

$

In Stock, Qty 9

0

69

Troy-Bilt 790-00289A-0637

Cover Plate, Standard
(Superseded to 790-00289B-0637)

$26.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 710-04022

Hex Head Screw, 1.25 x 20
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 936-0264

Washer, Flat, .330 x .630 x .0635

$6.99

$

In Stock, only 2 left!

0

72

Troy-Bilt 732-04677

Cable Guide

$8.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 732-0705

Cable Guide

$11.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 738-04164A

Friction Disc Bearing Pin

$24.99

$

Usually ships in 3-6 days

0

75

Troy-Bilt 741-04098

Ball Bearing, 30 x 55 x 13

$21.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt 618-0063A

Bearing Assembly

$92.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 710-04484

Taptite Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

78

Troy-Bilt 935-04054

Friction Wheel Rubber
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 20+

0

79

Troy-Bilt 790-00174C

Friction Wheel Plate

$14.99

$

Usually ships in 3-6 days

0

80

Troy-Bilt 731-04873

Spacer, 1.25 x .75 x 3.0

$10.99

$

In Stock, Qty 7

0

81

Troy-Bilt 738-04493

Axle, .75 x 22
(Superseded to 938-04493)

$63.99

$

In Stock, Qty 5

0

82

Troy-Bilt 736-0320

Washer, Flat, .38 x 1.38 x .125

$6.99

$

In Stock, Qty 7

0

83

Troy-Bilt 710-1245B

Hex Head Screw, 5/16-24 x .875

$8.49

$

In Stock, only 4 left!

0

84

Troy-Bilt 634-04147A-0911

X-Trac Wheel, 15 x 5 x 6, LH

$194.99

$

In Stock, only 1 left!

0

84

Troy-Bilt 634-04148A-0911

X-Trac Wheel, 15 x 5 x 6, RH

$232.99

$

Usually ships in 3-6 days

0
