2620 (31AM63P3711) - Troy-Bilt Storm 26" Snow Thrower (2008) Handle Panel Parts Diagram

Storm 26" Snow Thrower

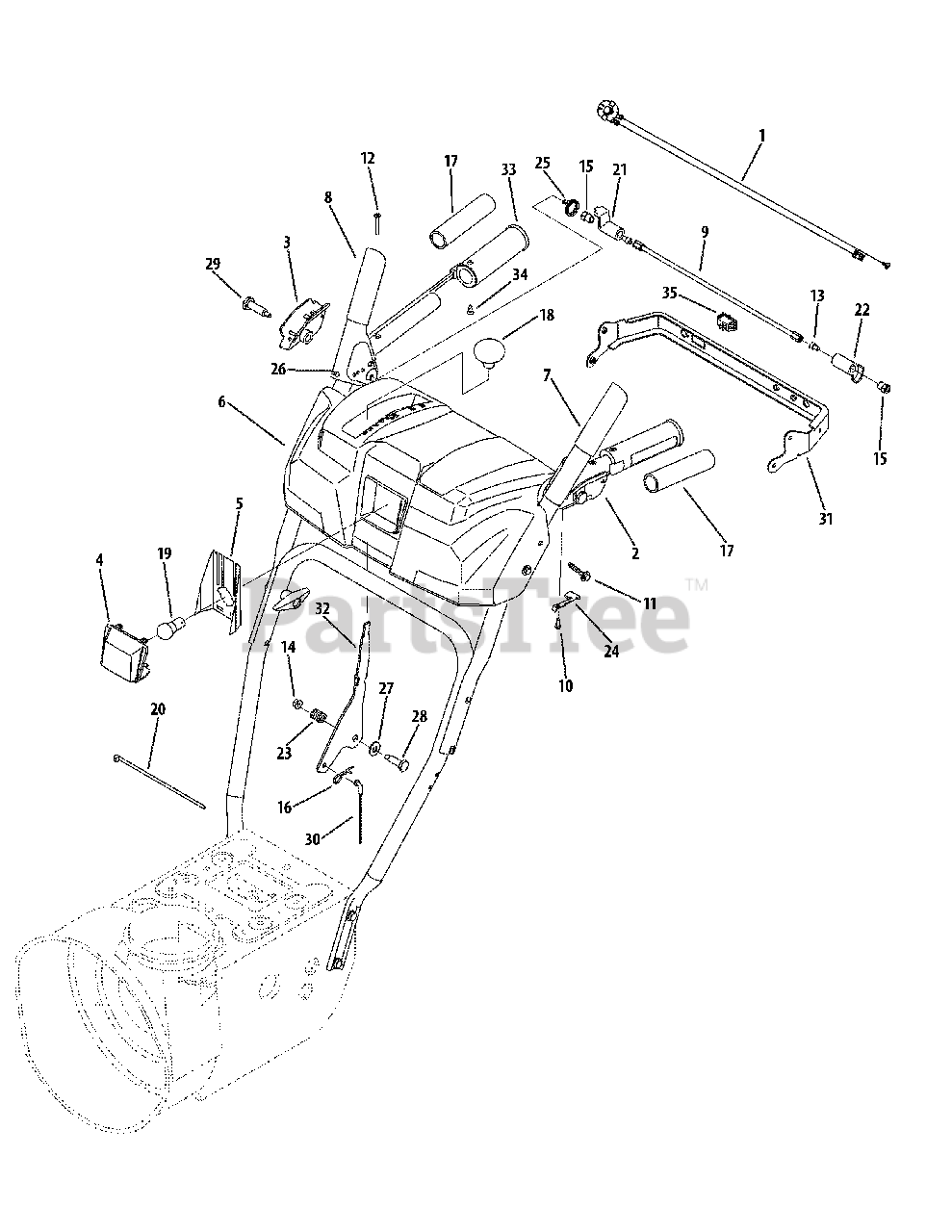

Handle Panel Parts Diagram

  • Title

1

N/A

Wire Harness

$

$

Not available

2

Troy-Bilt 631-04133A

Clutch Lock Handle Assembly, LH

$15.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 631-04134B

Clutch Lock Handle Assembly, RH

$15.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 731-05319

Lens

$13.99

$

In Stock, only 4 left!

0

5

Troy-Bilt 777X41805

Lens Label

$9.49

$

In Stock, only 4 left!

0

6

Troy-Bilt 731-05334

Troy-Bilt Handle Panel
(Superseded to 731P05334C)

$72.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 684-04105B

Engagement Assembly, LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 684-04106B

Engagement Assembly, RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 684-04250

Clutch Pivot Lock Rod Assembly

$12.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 710-04326

Plastic Screw, #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 710-04586

Hex Washer Screw, 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 710-1233

Screw, #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

13

Troy-Bilt 710-3069

Socket Screw, 1/4-20 x .50

$4.99

$

In Stock, Qty 10

0

14

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04081A

Hex Nut, 1/4-20

$7.49

$

In Stock, only 2 left!

0

16

Troy-Bilt 714-0145

Click Pin, .092 x 1.64

$4.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 720-0274

Grip, 1.0 x 5.0

$11.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 720-04039

Shift Knob

$10.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 725-1629

Lamp
(Superseded to 925-1629)

$11.99

$

In Stock, Qty 14

0

20

Troy-Bilt 726-0154

Cable Tie
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 731-04894D

Plate Lock

$5.49

$

In Stock, only 1 left!

0

22

Troy-Bilt 731-04896B

Clutch Lock
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 6

0

23

Troy-Bilt 732-0193

Compression Spring .39 x .60 x .88

$4.99

$

In Stock, Qty 6

0

24

Troy-Bilt 732-04219C

Clutch Lock Spring

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 732-04238

Torsion Spring, .80156 ID x .3038
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 11

0

26

Troy-Bilt 735-0199A

Rubber Bumper, .62 OD x .22

$7.99

$

In Stock, only 4 left!

0

27

Troy-Bilt 736-0267

Flat Washer, .385 x .87 x .06

$4.49

$

In Stock, only 1 left!

0

28

Troy-Bilt 738-04125

Shoulder Screw, .374 x 1.05

$4.99

$

In Stock, only 4 left!

0

29

Troy-Bilt 738-04348

Shlder. Screw, .437 x 1.345 x 1/4-20

$3.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 746-04396

Speed Selector Cable
(Superseded to 946-04396A)

$20.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 790-00248B

Panel Bracket
(Superseded to 790-00248E-0637)

Variations

Troy-Bilt 790-00248B-0637

Handle Support Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 790-00311

Shift Lever
(Superseded to 790-00311C-0637)

Variations

Troy-Bilt 790-00311-0637

Shift Lever - POWDER BLACK (0637)

$27.99

$

In Stock, only 1 left!

0

$27.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 725-1757

Heated Grip

$111.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 710-0837

Screw, #10-16 x .625

$4.49

$

In Stock, Qty 6

0

35

Troy-Bilt 725-04393

Heated Grip Switch

$16.99

$

Usually ships in 3-6 days

0
