2620 (2691158-00) - Massey Ferguson 50" Lawn Tractor, 20hp Transmission Group - Tuff Torq K57AF Parts Diagram

50" Lawn Tractor, 20hp

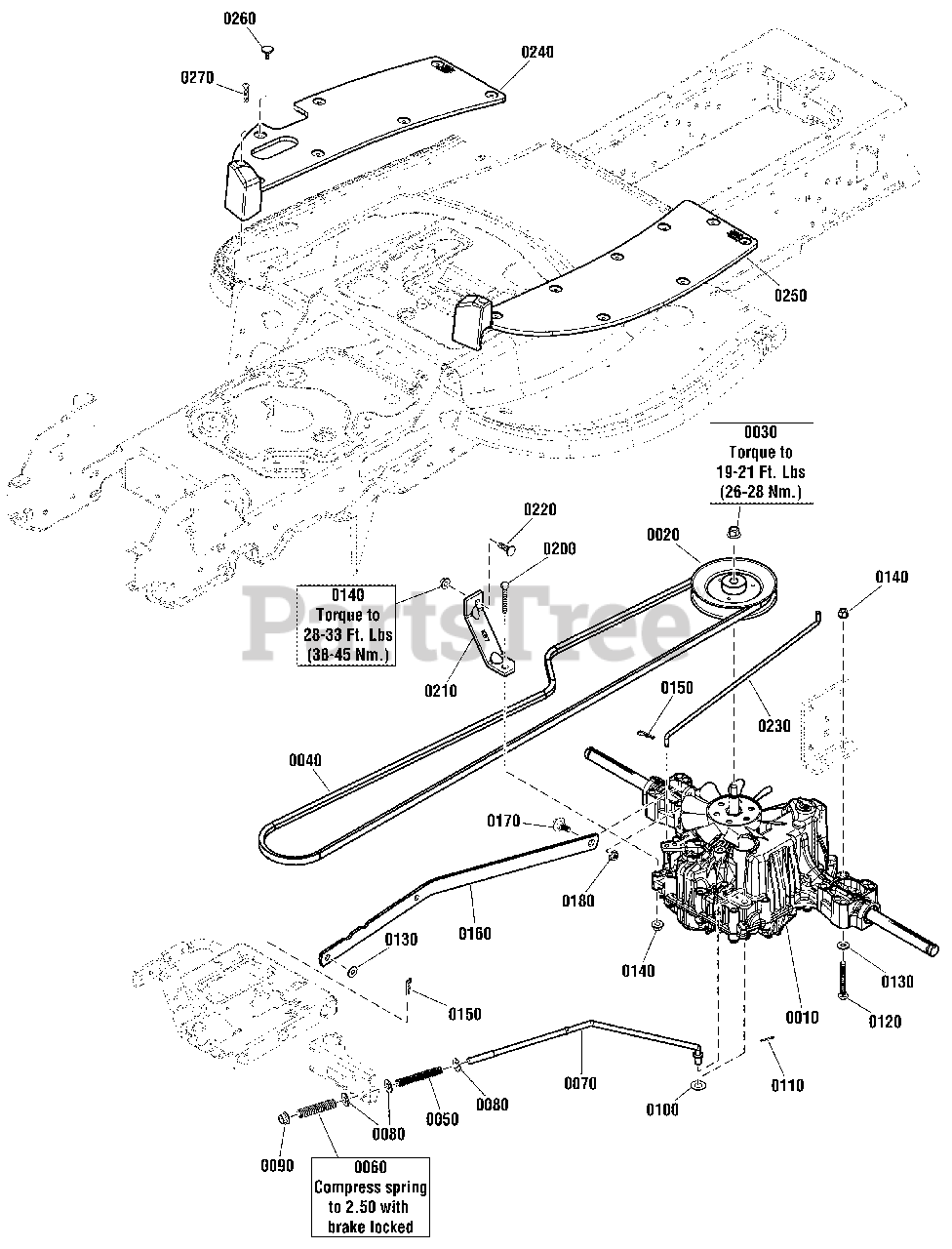

Transmission Group - Tuff Torq K57AF Parts Diagram

  • Title

0010

Simplicity 1755450YP

TRANSMISSION, Tuff Torq, K57AF
(Superseded to 771903)

$1646.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1732808SM

PULLEY & HUB ASSEMBLY

$

$

Not available

0030

Simplicity 1719968SM

NUT, Hex Flange, M10-1.50

$3.49

$

Usually ships in 2-12 days

0

0040

Simplicity 1726841SM

V-BELT HA 094.50 LG

$58.99

$

In Stock, Qty 20+

0

0050

Simplicity 1722684SM

SPRING, Compression

$4.49

$

Usually ships in 2-12 days

0

0060

Simplicity 1729277SM

SPRING, Compression, 3-5/8"

$6.99

$

In Stock, only 1 left!

0

0070

Simplicity 1726871SM

ROD, Brake, 16.69"

$19.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0090

Simplicity 1960687SM

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0100

Simplicity 1918267SM

WASHER, 7/16

$3.99

$

In Stock, only 1 left!

0

0110

Simplicity 703312

PIN, Cotter, 3/32 x 3/4

$3.99

$

In Stock, Qty 20+

0

0120

Simplicity 1923141SM

CAPSCREW, Hex Head, 5/16-18 x 2-3/4, GR5
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

0130

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

0140

Simplicity 1960686SM

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0150

Simplicity 1722460SM

PIN, Quick, 1.19LG
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0160

Simplicity 1755619AYP

ARM, Transmission (K57)

$17.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1732426SM

BOLT, Shoulder, 5/16-18 x 1/2

$4.49

$

In Stock, only 1 left!

0

0180

Simplicity 1935048SM

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0200

Simplicity 1921978SM

CAPSCREW, Hex Head, 5/16-18 x 2, GR5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

0210

Simplicity 1721592ASM

STRAP, Torque, K57

$8.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1 GR5
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0230

Simplicity 1726806SM

ROD, Free Wheel

$9.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1722173SM

PAD, Foot Rest, RH

$32.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1722345SM

PAD, Foot Rest, LH

$23.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1704351SM

FASTENER, Panel

$4.99

$

In Stock, only 4 left!

0

0270

Simplicity 1960676SM

SCREW, Pan Head Torx, Taptite, 1/4-20 x 1-1/4

$4.49

$

Usually ships in 2-12 days

0
