2620 (2691158-00) - Massey Ferguson 50" Lawn Tractor, 20hp Lift Group - Manual Parts Diagram

50" Lawn Tractor, 20hp

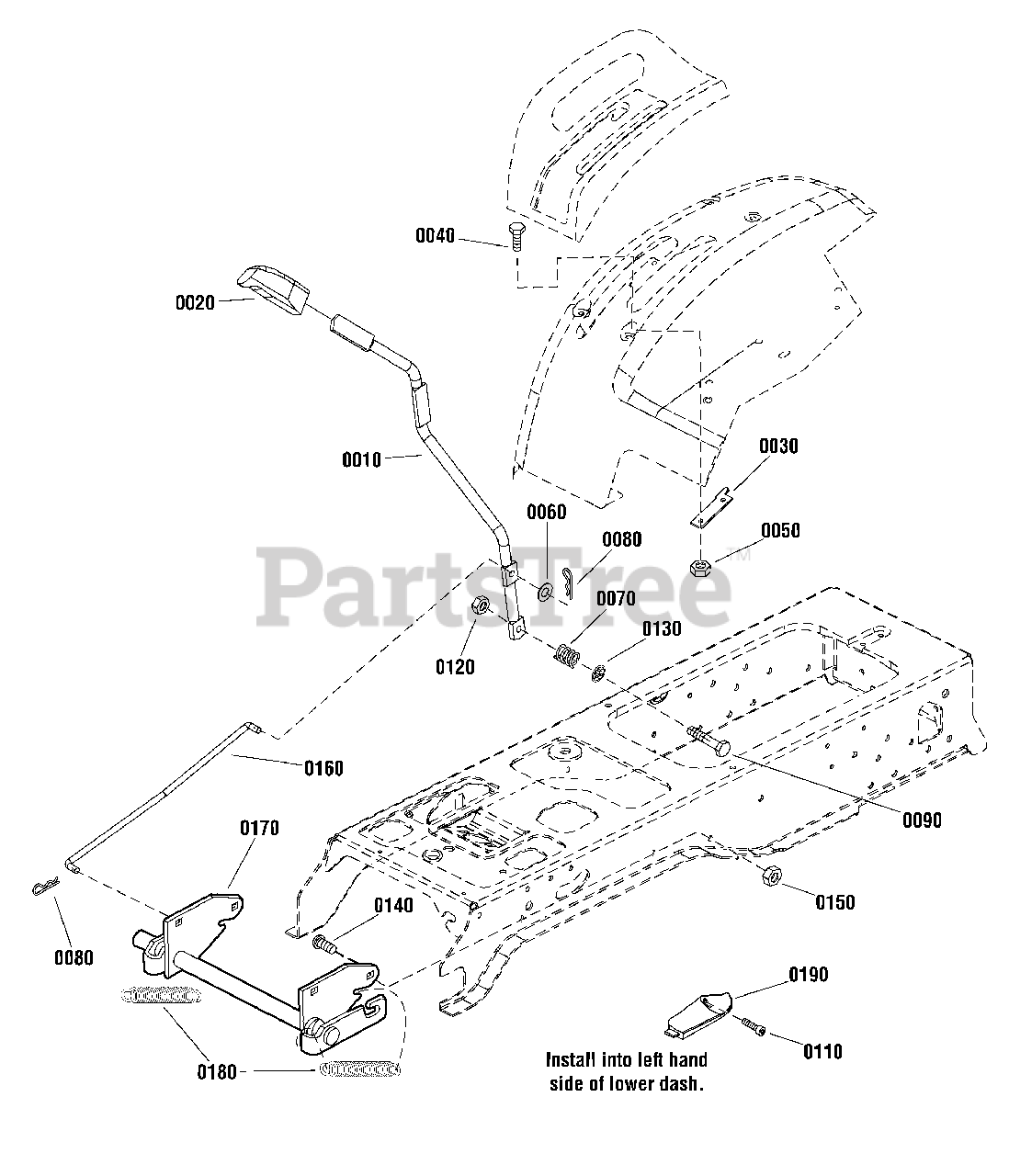

Lift Group - Manual Parts Diagram

  • Title

0010

Simplicity 1722024ASM

ROD, Lift Lever with Flats

$37.99

$

In Stock, only 1 left!

0

0020

Simplicity 1722302SM

GRIP, Black Vinyl

$8.49

$

In Stock, Qty 10

0

0030

Simplicity 1722284ASM

QUADRANT

$6.49

$

Usually ships in 2-12 days

0

0040

Simplicity 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

0050

Simplicity 1920397SM

NUT, Hex Lock ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0060

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0070

Simplicity 2162085SM

SPRING, Compression

$6.99

$

In Stock, Qty 7

0

0080

Simplicity 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0090

Simplicity 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0110

Simplicity 1722607SM

SCREW, Torx Head, # 8-16 x 1/2

$3.99

$

In Stock, only 1 left!

0

0120

Simplicity 1930645SM

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0130

Simplicity 5025472YP

NUT, Push, 3/8
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

0140

Simplicity 1931333SM

CARIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0150

Simplicity 1960636SM

NUT, KEPS Lock, 5/16-18

$4.99

$

In Stock, only 1 left!

0

0160

Simplicity 1725638SM

ROD, Lift

$23.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1727437ASM

LIFT SHAFT ASSEMBLY,

$109.99

$

Usually ships in 2-12 days

0

0180

Simplicity 2156302SM

SPRING, Extension, 4-1/8

$6.49

$

In Stock, Qty 20+

0

0190

Simplicity 1722285SM

COVER, Dash

$6.99

$

Usually ships in 2-12 days

0
