2620 (2690972) - Massey Ferguson 46" Lawn Tractor, 22hp Seat & Seat Deck Group - EVAP Compliant Parts Diagram

46" Lawn Tractor, 22hp

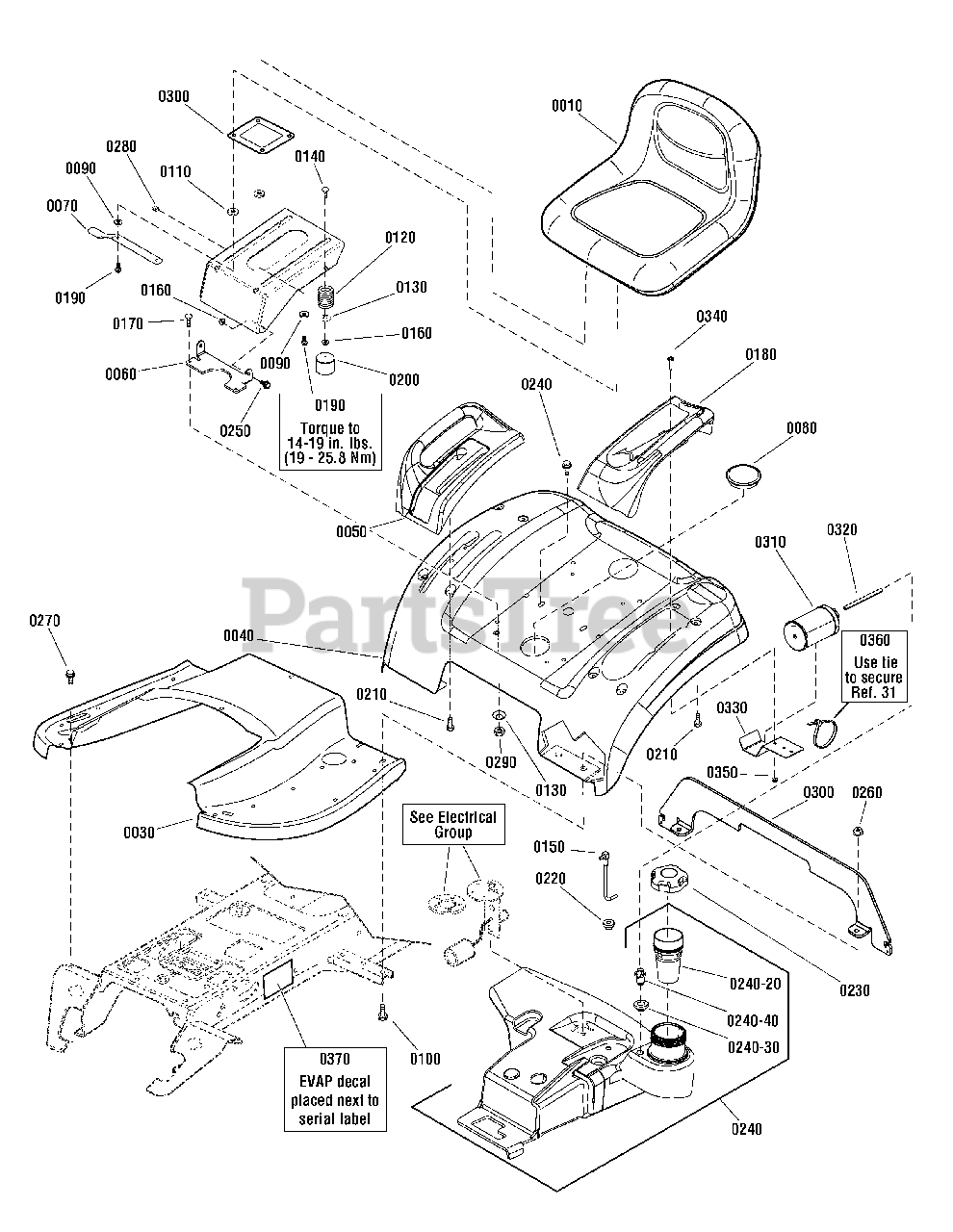

Seat & Seat Deck Group - EVAP Compliant Parts Diagram

  • Title

0010

Simplicity 1733382

SEAT, 15" Back
(Superseded to 1733382SM)

$463.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1727265A

SUPPORT, Seat
(Superseded to 1727265SM)

$102.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1722105D

TUNNEL, Red
(Superseded to 1722105DSM)

$201.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1722106D

DECK, Seat, Red
(Superseded to 1722106DSM)

$512.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1722108

POD, RH with 2 Slots
(Superseded to 1687790YP)

$103.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1738233A

SUPPORT, Seat Pivot
(Superseded to 1738233AYP)

$16.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1727268

LATCH, Seat
(Superseded to 1727268SM)

$8.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1722309

PLUG, Plastic
(Superseded to 1722309SM)

$5.99

$

In Stock, Qty 11

0

0090

Simplicity 1919381

WASHER, 5/16 x 1
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

0100

Simplicity 1930591

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 10

0

0110

Simplicity 1731300

SPACER, 5/16 x 1-1/4
(Superseded to 1731300SM)

$5.49

$

Usually ships in 2-12 days

0

0120

Simplicity 1704728

SPRING, Compression, 2" Long
(Superseded to 1704728SM)

$9.99

$

In Stock, only 2 left!

0

0130

Simplicity 1709256

WASHER, Spring, 5/16 x 1-1/4
(Superseded to 1709256SM)

$5.99

$

In Stock, only 2 left!

0

0140

Simplicity 1960282

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

0150

Simplicity 1726902

TUBE & ELBOW ASSEMBLY
(Superseded to 1757609YP)

$19.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1960686

NUT, Hex Flange, 5/16-18, ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0170

Simplicity 1931334

BOLT, Carriage, 5/16-18 x 7/8, G5
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

0180

Simplicity 1729711

POD, with Cup Holder, LH
(Superseded to 1687789YP)

$103.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1930595

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 1-1/4
(Superseded to 1930595SM)

$3.99

$

In Stock, Qty 5

0

0200

Simplicity 1704724

COVER, Spring, 1-1/2 Long
(Superseded to 1704724SM)

$7.99

$

In Stock, only 4 left!

0

0210

Simplicity 2860664

CAPSCREW, Hex Washer Head, 1/4-20 x 5/8
(Superseded to 2860664SM)

$5.99

$

In Stock, only 2 left!

0

0220

Simplicity 1654930

BUSHING, 3/8 x 9/16 x 5/8, Rubber
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

0230

Simplicity 5103005

CAP, Gas
(Superseded to 84005958)

$40.99

$

In Stock, only 1 left!

0

0240

Simplicity 1751622

TANK, Fuel
(Superseded to 1751622YP)

$365.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1729576

BOLT, Shoulder, 5/16-18 x 1-1/8
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0260

Simplicity 1931277

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0270

Simplicity 1930601

CAPSCREW, Hex Flange Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0280

Simplicity 2172434

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1919438

NUT, Hex Lock, ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

0300

Simplicity 1739571A

SPACER PLATE
(Superseded to 1739571AYP)

$13.99

$

Usually ships in 2-12 days

0

0310

Simplicity 1751599

CANISTER, Carbon, 300cc
(Superseded to 1751599YP)

$59.99

$

Usually ships in 2-12 days

0

0320

Simplicity 7700552X4

HOSE, Vapor, 4mm
(Superseded to 7700552X4FS)

$2.99

$

In Stock, only 1 left!

0

0330

Simplicity 1752099A

BRACKET, Canister Mounting
(Superseded to 1752099AYP)

$20.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1960589

SCREW, Phillips, #10-24 x 3/4
(Superseded to 1960589SM)

$3.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1960591

NUT, Hex KEPS, #10-24
(Superseded to 1960591SM)

$3.49

$

In Stock, Qty 8

0

0360

Simplicity 1701011

TIE, Self Locking, 15 Long
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0370

Simplicity 1752230

DECAL, EVAP
(Superseded to 1752230YP)

$7.49

$

Usually ships in 2-12 days

0
