262 XP - Husqvarna Chainsaw (SN: 19981400001 - 19992300000) CHAIN BRAKE Parts Diagram

Chainsaw

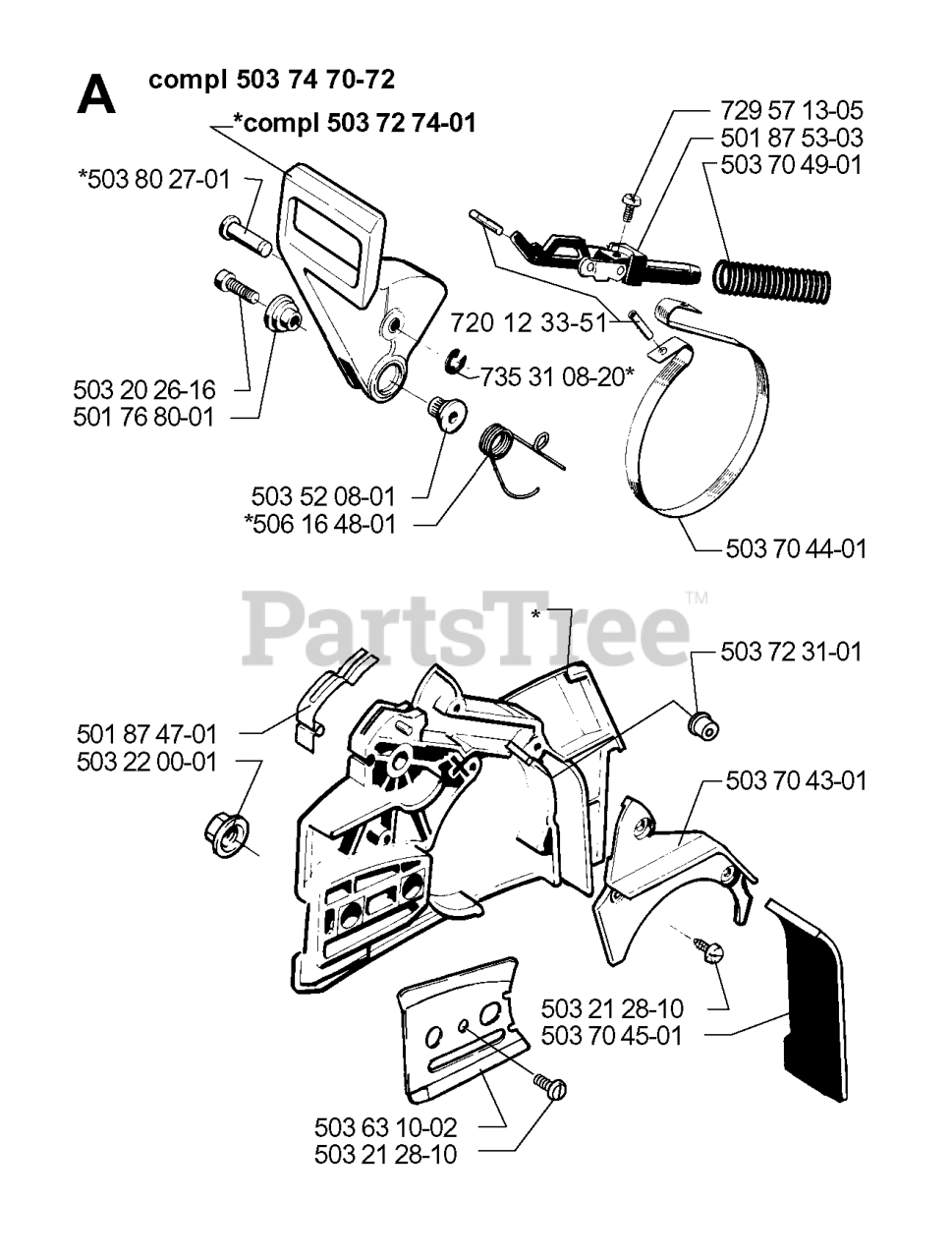

CHAIN BRAKE Parts Diagram

  • Title

503 20 26-16

Husqvarna 503202616

SCREW

$3.49

$

In Stock, only 2 left!

0

503 70 44-01

Husqvarna 503704401

BRAKE BAND

$14.99

$

In Stock, only 1 left!

0

503 70 43-01

Husqvarna 503704301

CLUTCH COVER

$

$

Not available

503 63 10-02

Husqvarna 503631002

CHAIN GUIDE PLATE

$

$

Not available

503 72 74-01

Husqvarna 503727401

HANDGUARD

$45.99

$

Usually ships in 3-10 days

0

501 87 47-01

Husqvarna 501874701

SPRING

$4.99

$

In Stock, only 3 left!

0

729 57 13-05

Husqvarna 729571305

SCREW
(Superseded to 503212810)

$3.99

$

In Stock, Qty 12

0

503 21 28-10

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 12

0

506 16 48-01

Husqvarna 506164801

SPRING

$8.99

$

Usually ships in 3-10 days

0

720 12 33-51

Husqvarna 720123351

HARDENED PIN

$3.49

$

In Stock, only 1 left!

0

503 70 49-01

Husqvarna 503704901

BRAKE SPRING

$

$

Not available

503 70 45-01

Husqvarna 503704501

DUST GUARD

$

$

Not available

735 31 08-20

Husqvarna 735310820

E-RING 4

$4.99

$

In Stock, Qty 20+

0

501 76 80-01

Husqvarna 501768001

PIVOT SLEEVE R

$9.99

$

In Stock, Qty 6

0

503 22 00-01

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

503 52 08-01

Husqvarna 503520801

PIVOT SLEEVE L

$11.99

$

Usually ships in 3-10 days

0

501 87 53-03

Husqvarna 501875303

KNEE LINK

$26.99

$

In Stock, only 1 left!

0

503 72 31-01

Husqvarna 503723101

BUSHING

$5.99

$

In Stock, only 4 left!

0

503 74 70-72

Husqvarna 503747072

CHAINBRAKE

$

$

Not available

503 80 27-01

Husqvarna 503802701

PIVOT PIN

$5.99

$

Usually ships in 3-10 days

0
