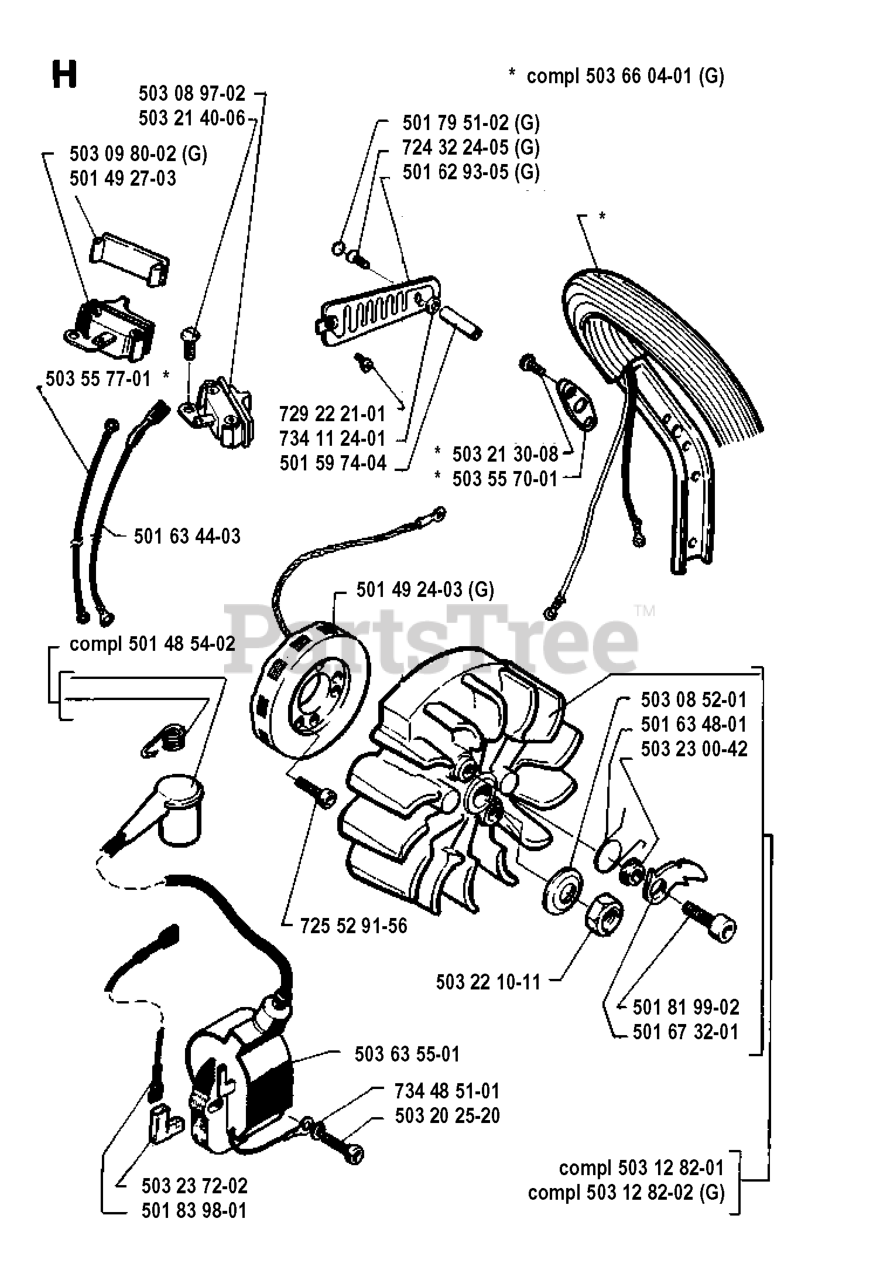

262 XP - Husqvarna Chainsaw (SN: 19924400001 - 19942300000) ELECTRICAL Parts Diagram

Chainsaw

ELECTRICAL Parts Diagram

  • Title

503 55 70-01

Husqvarna 503557001

Switch

$

$

Not available

501 49 24-03

Husqvarna 501492403

GENERATOR

Note: G

$

$

Not available

724 32 24-05

Husqvarna 724322405

SCREW 3X10

Note: G

$4.99

$

In Stock, Qty 5

0

501 59 74-04

Husqvarna 501597404

SPACER

$

$

Not available

501 67 32-01

Husqvarna 501673201

PAWL

$8.99

$

In Stock, only 4 left!

0

503 21 40-06

Husqvarna 503214006

SCREW
(Superseded to 503212806)

$6.49

$

Usually ships in 3-10 days

0

503 12 82-02

Husqvarna 503128202

FLYWHEEL SG
(Superseded to 503529402)

Note: G

$

$

Not available

503 09 80-02

Husqvarna 503098002

SWITCH
(Superseded to 503718101)

Note: G

$17.99

$

Usually ships in 3-10 days

0

503 12 82-01

Husqvarna 503128201

FLYWHEEL SE
(Superseded to 503529401)

$

$

Not available

503 08 97-02

Husqvarna 503089702

SWITCH
(Superseded to 503717901)

$17.99

$

In Stock, Qty 8

0

734 48 51-01

Husqvarna 734485101

FLAT WASHER 4.3X8

$

$

Not available

501 48 54-02

Husqvarna 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, Qty 5

0

503 55 77-01

Husqvarna 503557701

Lead

$

$

Not available

503 66 04-01

Husqvarna 503660401

FRONT HANDLE KIT

Note: G

$

$

Not available

501 63 48-01

Husqvarna 501634801

SPRING

$4.99

$

In Stock, Qty 20+

0

501 81 99-02

Husqvarna 501819902

SCREW 5X18
(Superseded to 501819901)

$6.49

$

In Stock, Qty 8

0

503 22 10-11

Husqvarna 503221011

NUT M8X1

$6.49

$

In Stock, only 1 left!

0

729 22 21-01

Husqvarna 729222101

SCREW CSK B4X6

$

$

Not available

503 08 52-01

Husqvarna 503085201

WASHER

$4.99

$

In Stock, only 4 left!

0

501 62 93-05

Husqvarna 501629305

HANDLE CIRCUIT

Note: G

$

$

Not available

501 49 27-03

Husqvarna 501492703

COVER

$5.99

$

In Stock, Qty 6

0

501 83 98-01

Husqvarna 501839801

SHORTING LEAD

$13.99

$

In Stock, only 1 left!

0

734 11 24-01

Husqvarna 734112401

WASHER BRB 3.2X7

$2.99

$

Usually ships in 3-10 days

0

503 23 00-42

Husqvarna 503230042

WASHER

$6.49

$

In Stock, Qty 9

0

503 20 25-20

Husqvarna 503202520

SCREW

$6.49

$

In Stock, Qty 10

0

503 23 72-02

Husqvarna 503237202

INSULATING CAP

$4.99

$

In Stock, only 1 left!

0

725 52 91-56

Husqvarna 725529156

SCREW MC6S 4X12
(Superseded to 725529155)

$3.49

$

Usually ships in 3-10 days

0

501 79 51-02

Husqvarna 501795102

WASHER

Note: G

$3.49

$

In Stock, only 1 left!

0

501 63 44-03

Husqvarna 501634403

CABLE

$

$

Not available

503 21 30-08

Husqvarna 503213008

SCREW
(Superseded to 503212910)

$7.49

$

In Stock, only 1 left!

0

503 63 55-01

Husqvarna 503635501

IGNITION SYSTEM-DUCATI
(Superseded to 506027207)

$

$

Not available
