262 XP - Husqvarna Chainsaw (SN: 19910900001 - 19924400000) CHAIN BRAKE Parts Diagram

Chainsaw

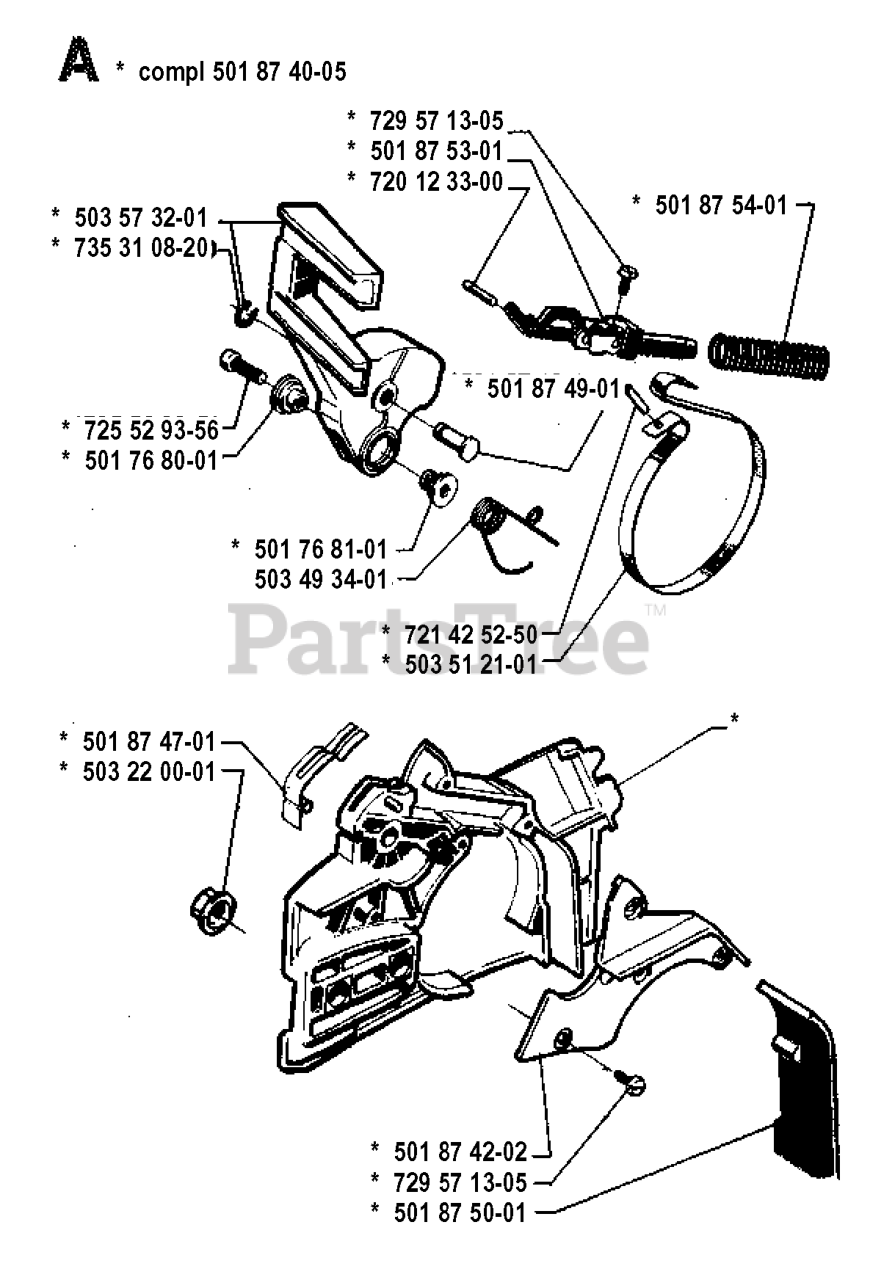

CHAIN BRAKE Parts Diagram

  • Title

501 87 47-01

Husqvarna 501874701

SPRING

$4.99

$

In Stock, only 3 left!

0

720 12 33-00

Husqvarna 720123300

PIN 3X10

$3.49

$

In Stock, only 4 left!

0

501 76 81-01

Husqvarna 501768101

PIVOT SLEEVE L

$

$

Not available

729 57 13-05

Husqvarna 729571305

SCREW
(Superseded to 503212810)

$3.99

$

In Stock, Qty 17

0

503 57 32-01

Husqvarna 503573201

HANDGUARD CPL
(Superseded to 503727401)

$45.99

$

In Stock, only 1 left!

0

503 49 34-01

Husqvarna 503493401

LOCK SPRING

$

$

Not available

501 87 40-05

Husqvarna 501874005

CHAINBRAKE
(Superseded to 503747072)

$

$

Not available

501 76 80-01

Husqvarna 501768001

PIVOT SLEEVE R

$9.99

$

In Stock, Qty 7

0

501 87 42-02

Husqvarna 501874202

COVER

$

$

Not available

503 22 00-01

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

501 87 50-01

Husqvarna 501875001

DUST GUARD NLA

$

$

Not available

503 51 21-01

Husqvarna 503512101

BRAKE BAND

$17.99

$

Usually ships in 3-10 days

0

501 87 49-01

Husqvarna 501874901

PIVOT PIN
(Superseded to 503802701)

$5.99

$

Usually ships in 3-10 days

0

725 52 93-56

Husqvarna 725529356

SCREW MC6S 4X16

$5.99

$

In Stock, only 2 left!

0

735 31 08-20

Husqvarna 735310820

E-RING 4

$4.99

$

In Stock, Qty 20+

0

501 87 53-01

Husqvarna 501875301

KNEE-JOINT

$26.99

$

In Stock, only 1 left!

0

721 42 52-50

Husqvarna 721425250

SPIRAL PIN 4X12

$3.49

$

In Stock, only 1 left!

0

501 87 54-01

Husqvarna 501875401

SPRING

$

$

Not available
