262 XP - Husqvarna Chainsaw (SN: 19900900001 - 19910900000) STARTER Parts Diagram

Chainsaw

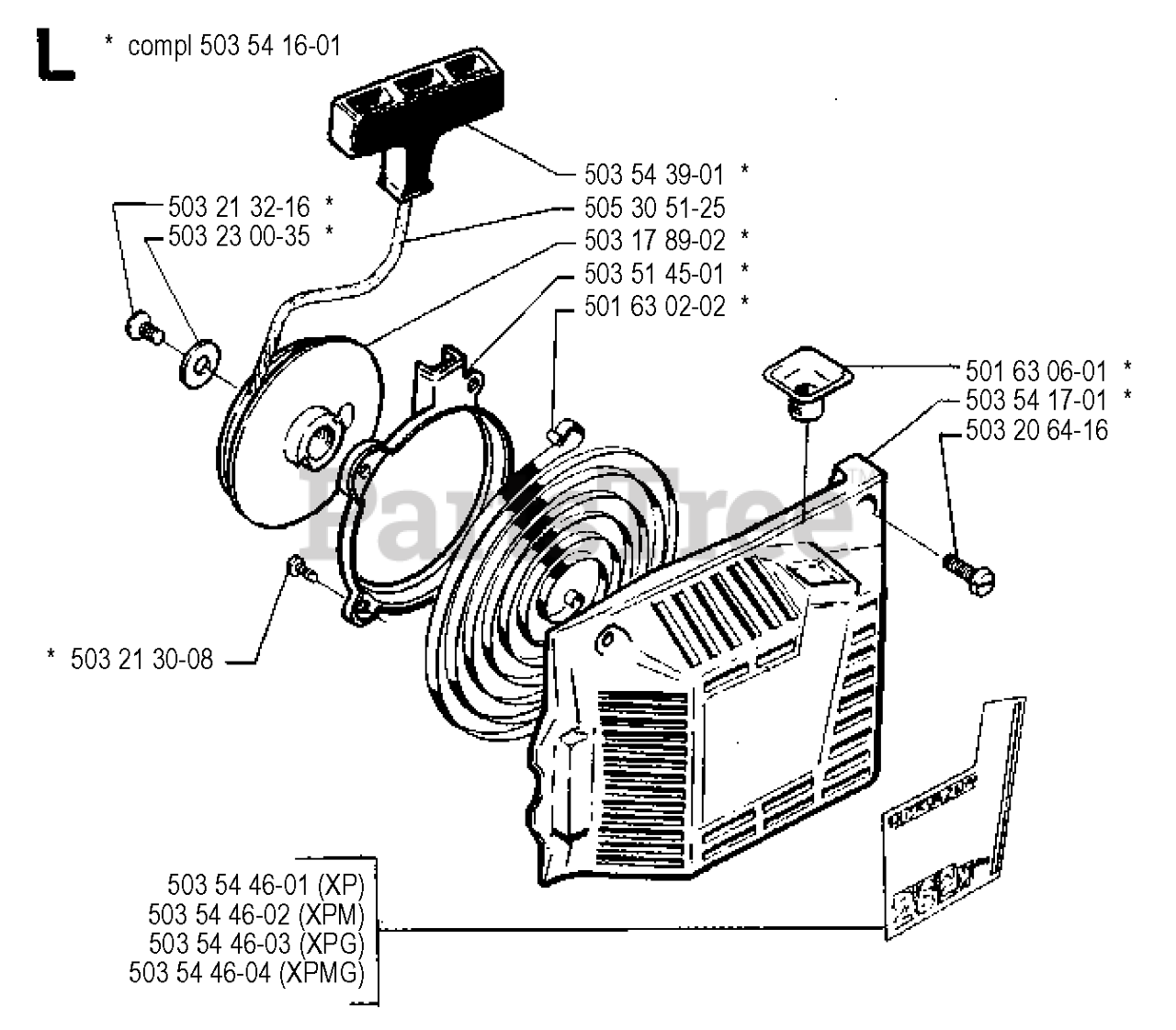

STARTER Parts Diagram

  • Title

503 54 17-01

Husqvarna 503541701

STARTER HOUSING

$35.99

$

Usually ships in 3-10 days

0

503 54 46-02

Husqvarna 503544602

Note: XPM

$

$

Currently unavailable

501 63 06-01

Husqvarna 501630601

SLEEVE

$10.99

$

In Stock, only 2 left!

0

503 51 45-01

Husqvarna 503514501

$

$

Currently unavailable

503 21 30-08

Husqvarna 503213008

SCREW
(Superseded to 503212910)

$7.49

$

In Stock, only 1 left!

0

503 54 46-01

Husqvarna 503544601

DECAL
(Superseded to 503619803)

Note: XP

$6.70

$

Usually ships in 3-10 days

0

503 21 32-16

Husqvarna 503213216

SCREW

$2.49

$

Usually ships in 3-10 days

0

503 20 64-16

Husqvarna 503206416

SCREW
(Superseded to 503203416)

$4.99

$

In Stock, only 4 left!

0

503 54 46-03

Husqvarna 503544603

DECAL
(Superseded to 503619804)

Note: XPG

$

$

Not available

503 17 89-02

Husqvarna 503178902

STARTER PULLEY

$17.99

$

In Stock, only 2 left!

0

503 54 39-01

Husqvarna 503543901

STARTER HANDLE

$11.99

$

In Stock, only 3 left!

0

505 30 51-25

Husqvarna 505305125

STARTER ROPE

$9.49

$

In Stock, only 4 left!

0

503 54 16-01

Husqvarna 503541601

STARTER ASS'Y

$

$

Not available

503 54 46-04

Husqvarna 503544604

Note: XPMG

$

$

Currently unavailable

503 23 00-35

Husqvarna 503230035

WASHER 5.3X15

$7.49

$

In Stock, Qty 14

0

501 63 02-02

Husqvarna 501630202

RECOIL SPRING
(Superseded to 501630203)

$20.99

$

In Stock, Qty 5

0
