262 - Husqvarna Chainsaw (1996-01) Crankcase Parts Diagram

Chainsaw

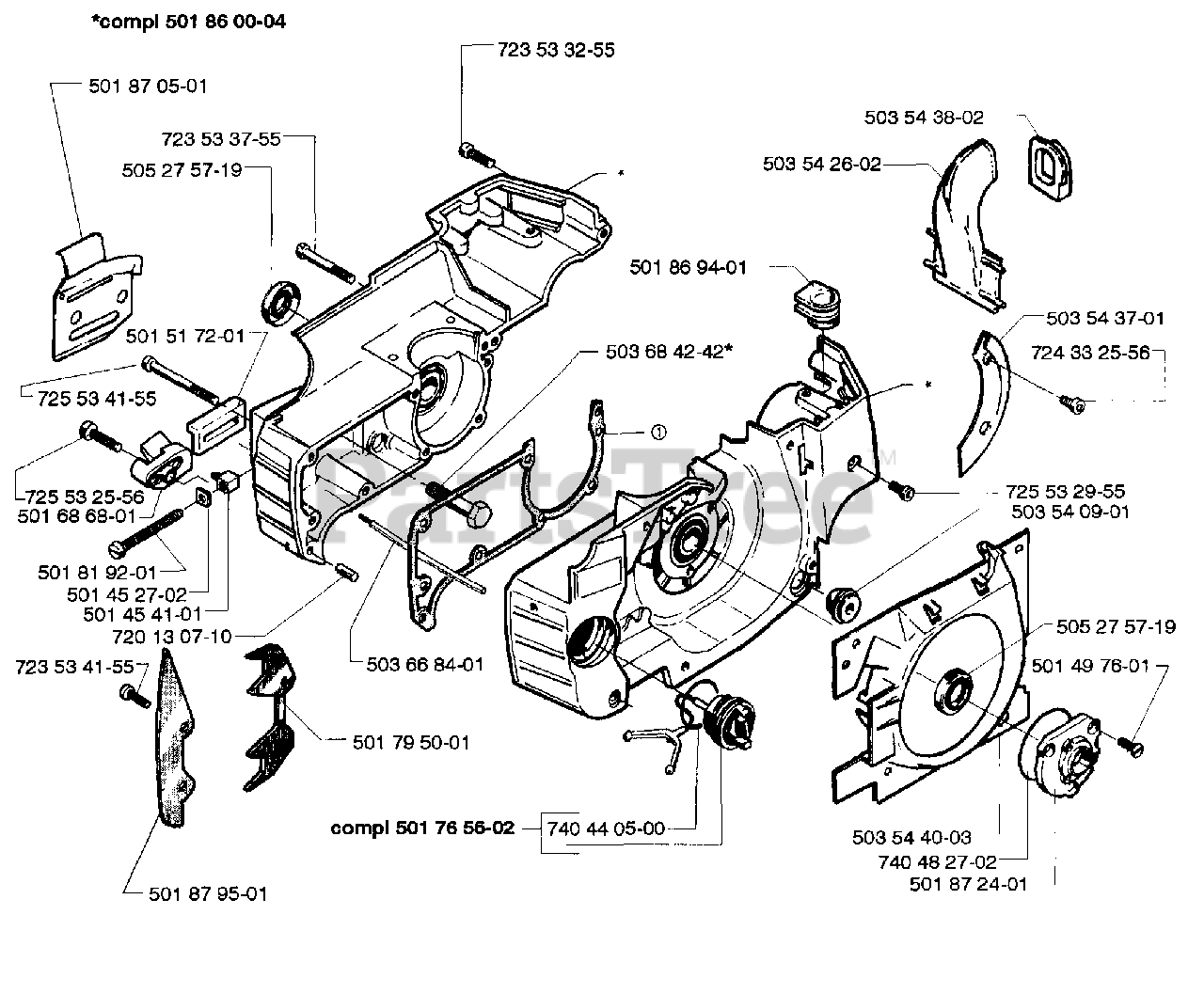

Crankcase Parts Diagram

  • Title

501860004

Husqvarna 501860004

CRANK CASE W/BEARING

$

$

Not available

501870501

Husqvarna 501870501

CHAIN GUIDE PLATE

$6.99

$

In Stock, only 1 left!

0

723533755

Husqvarna 723533755

$

$

Currently unavailable

505275719

Husqvarna 505275719

SEAL RING

$19.99

$

In Stock, Qty 7

0

501517201

Husqvarna 501517201

CHAIN GUIDE

$8.99

$

In Stock, only 4 left!

0

725534155

Husqvarna 725534155

SCREW MC6S 5X50

$5.99

$

In Stock, Qty 7

0

725532556

Husqvarna 725532556

RP SCREW MC6S 5X10
(Superseded to 725532555)

$4.99

$

In Stock, Qty 5

0

501686801

Husqvarna 501686801

CHAIN CATCHER

$8.99

$

Usually ships in 3-10 days

0

501819201

Husqvarna 501819201

SCREW

$10.99

$

In Stock, only 2 left!

0

501452702

Husqvarna 501452702

NUT

$4.99

$

In Stock, Qty 10

0

501454101

Husqvarna 501454101

PAWL

$6.99

$

In Stock, Qty 5

0

720130710

Husqvarna 720130710

PIN 5X14
(Superseded to 720130752)

$8.99

$

Usually ships in 3-10 days

0

723534155

Husqvarna 723534155

$

$

Currently unavailable

503668401

Husqvarna 503668401

OIL TANK VENT

$

$

Not available

501795001

Husqvarna 501795001

FELLING DOG

$

$

Not available

501765602

Husqvarna 501765602

OIL CAP

$10.99

$

Usually ships in 3-10 days

0

501879501

Husqvarna 501879501

FELLING DOG

$

$

Not available

740440500

Husqvarna 740440500

O-RING

$7.49

$

In Stock, only 4 left!

0

501872401

Husqvarna 501872401

BEARING COVER

$

$

Not available

740482702

Husqvarna 740482702

O-RING

$5.99

$

In Stock, only 3 left!

0

503544003

Husqvarna 503544003

AIR CONDUCTOR

$14.99

$

Usually ships in 3-10 days

0

501497601

Husqvarna 501497601

SCREW

$

$

Not available

505275719

Husqvarna 505275719

SEAL RING

$19.99

$

In Stock, Qty 7

0

503543802

Husqvarna 503543802

GROMMET

$

$

Not available

503542602

Husqvarna 503542602

AIR JET

$

$

Not available

503543701

Husqvarna 503543701

PLATE

$

$

Not available

724332556

Husqvarna 724332556

SCREW ***

$

$

Not available

725532955

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

503540901

Husqvarna 503540901

BUFFER

$8.99

$

Usually ships in 3-10 days

0

501869401

Husqvarna 501869401

BELLOWS
(Superseded to 503782401)

$

$

Not available

503684242

Husqvarna 503684242

BAR BOLT

$9.99

$

In Stock, only 1 left!

0

723533255

Husqvarna 723533255

$

$

Currently unavailable
