2615 - Weed Eater String Trimmer CUTTING HEAD & DRIVE SHAFT Parts Diagram

String Trimmer

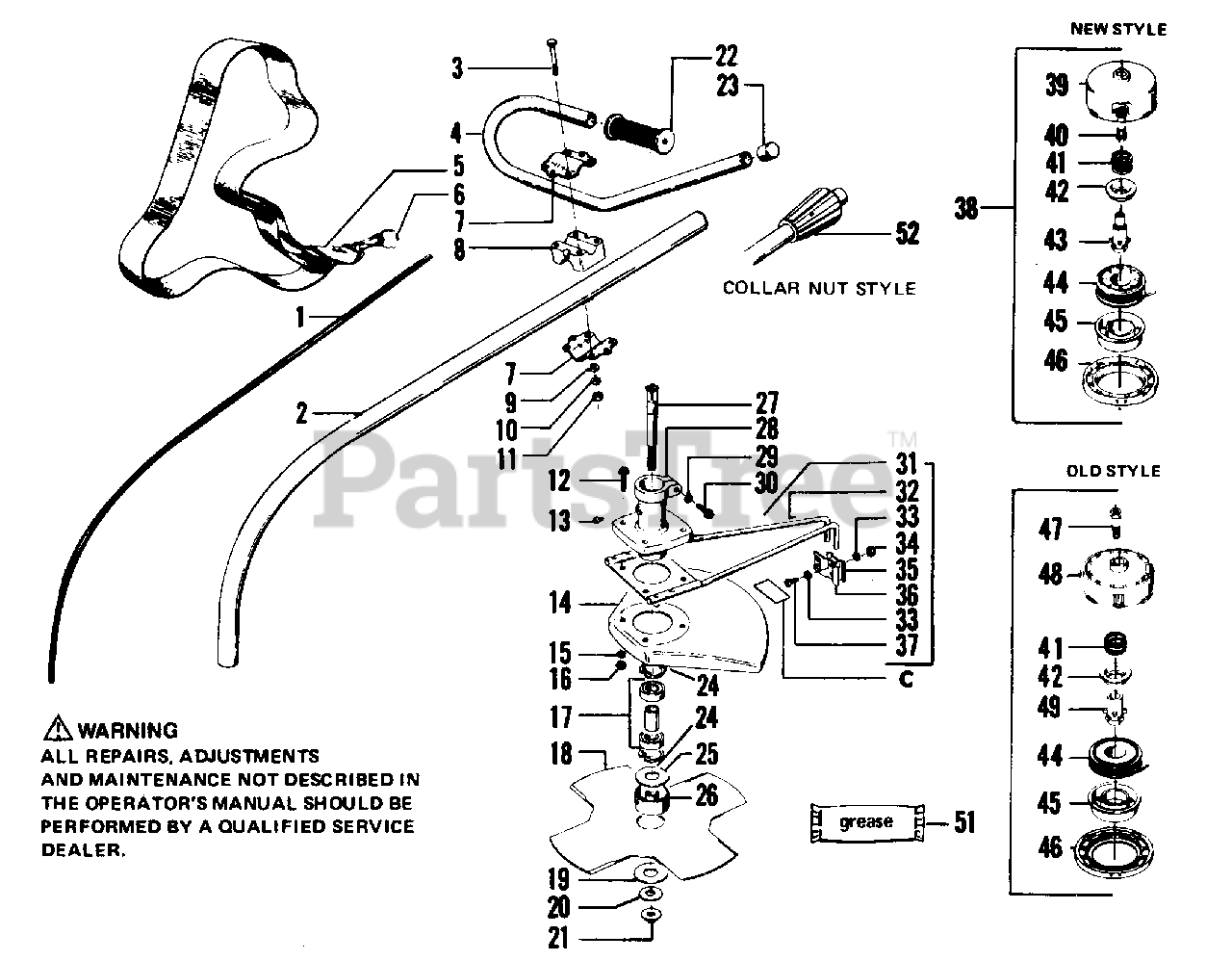

CUTTING HEAD & DRIVE SHAFT Parts Diagram

  • Title

1

Poulan 530092261

Flexible Drive Shaft

$24.99

$

Usually ships in 3-10 days

0

2

Drive Shaft Housing

$

$

Not available

2

Poulan 530093728

Collar Nut Style (Inc. 52)

$

$

Not available

2

Poulan 530093726

Pinch Clamp Style

$

$

Not available

3

Poulan 530015405

Bolt - #1/4 - 20 x 2" Hex

$

$

Not available

4

Poulan 530093169

Barrier Handlebar

$

$

Not available

5

Poulan 530093086

Shoulder Strap

$

$

Not available

6

Poulan 530092231

"O" Ring - Shoulder Strap

$

$

Not available

7

Poulan 530092079

Clamp - Handlebar

$

$

Not available

8

Poulan 530092081

Block - Handlebar

$

$

Not available

9

Poulan 530001503

Washer - 1/4" Flat

$

$

Not available

10

Poulan 530001642

Washer - 1/4" Lock

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 530015197

Nut - #1/4 - 20" Hex

$6.49

$

In Stock, only 4 left!

0

12

Poulan 530625509

Screw - #1/4 - 20 x 1" Hex

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 530015518

Screw - #10 - 16 x 1/4 Self Tapping

$2.49

$

Usually ships in 3-10 days

0

14

Poulan 530092212

Shield - Aluminum

$

$

Not available

15

Poulan 530001503

Washer - 1/4" Flat

$

$

Not available

16

Poulan 530001615

Nut - Deflector to Bearing Housing (1/4 - 20)

$

$

Not available

17

Poulan 530069086

Bearings and Spacer Kit

$27.99

$

Usually ships in 3-10 days

0

18

Poulan 952701546

Blade - 4 Tooth Weed

$22.99

$

Usually ships in 3-10 days

0

19

Poulan 530093751

Washer - Flat

$

$

Not available

20

Poulan 530015492

Washer - Bevel
(Superseded to 530016240)

$6.49

$

In Stock, only 1 left!

0

21

Poulan 530093748

Flange Nut

$

$

Not available

22

Poulan 530092086

Grip - Handlebar

$

$

Not available

23

Poulan 530092192

End Cap - Handlebar

$0.99

$

Usually ships in 3-10 days

0

24

Poulan 530091783

Retaining Ring - Bearing

$

$

Not available

25

Poulan 530092216

Washer - Dust Cup

$

$

Not available

26

Poulan 530092359

Dust Cup

$

$

Not available

27

Poulan 530093846

Shaft - Arbor

$

$

Not available

28

Poulan 530093214

Bearing Housing Ass'y (Inc. 17 & 24-30)

$

$

Not available

29

Poulan 530092227

Washer - 1/4" Int. Tooth

$1.49

$

Usually ships in 3-10 days

0

30

Poulan 530625509

Screw - #1/4 - 20 x 1" Hex

$2.49

$

Usually ships in 3-10 days

0

31

Poulan 530092244

Line Limiter Ass'y (Inc. 32 - 37)

$

$

Not available

32

Poulan 530092226

Line Limiter Bracket

$

$

Not available

33

Poulan 530015158

Washer
(Superseded to 530015123)

$4.99

$

In Stock, only 4 left!

0

34

Poulan 530015064

Nut - #10 - 24" Locking

$

$

Not available

35

Poulan 530092224

Clamp - Line Limiter Front

$2.49

$

Usually ships in 3-10 days

0

36

Poulan 530092234

Clamp - Line Limiter Rear (Includes Blade)

$

$

Not available

37

Poulan 530015557

Screw - #10 - 24 x 3/8"

$3.99

$

Usually ships in 3-10 days

0

38

Poulan 530093894

Cutting Head Ass'y - New Style (Inc. 39 - 46)

$

$

Not available

39

Poulan 530093896

Hub w/Line Saver - New Style
(Superseded to 530071295)

$21.99

$

Usually ships in 3-10 days

0

40

Poulan 530093898

Line Saver

$4.99

$

Usually ships in 3-10 days

0

41

Poulan 530092067

Spring
(Superseded to 530340007)

$3.99

$

Usually ships in 3-10 days

0

42

Poulan 530092068

Adaptor - Spring
(Superseded to 530328929)

$

$

Not available

43

Poulan 530093897

Drive Gear - New Style

$9.99

$

Usually ships in 3-10 days

0

44

Poulan 952701523

Spool With Line (.080" dia.)

$

$

Not available

45

Poulan 530093387

Release Button
(Superseded to 530401183)

$

$

Not available

46

Poulan 530092133

Cover

$

$

Not available

47

Poulan 530092064

Bolt - Drive Adaptor - Old Style

$10.99

$

Usually ships in 3-10 days

0

48

Poulan 530092131

Hub w/Line Saver - Old Style

$

$

Not available

49

Poulan 530092069

Drive Gear - Old Style

$

$

Not available

51

Poulan 530030102

Flex Shaft Lube
(Superseded to 952708514)

$

$

Not available

52

Poulan 530024406

Collar Nut

$10.99

$

Usually ships in 3-10 days

0

Poulan 952701569

Tap-n-Go Repair Kit - Old Style Cutting Head Only

Note: (Inc.41,42,45,46,49)- optional; Not Shown.

$14.99

$

Usually ships in 3-10 days

0
