261031x692B - Stanley 26" Walk-Behind Mower (2002) Handle Assembly Parts Diagram

26" Walk-Behind Mower

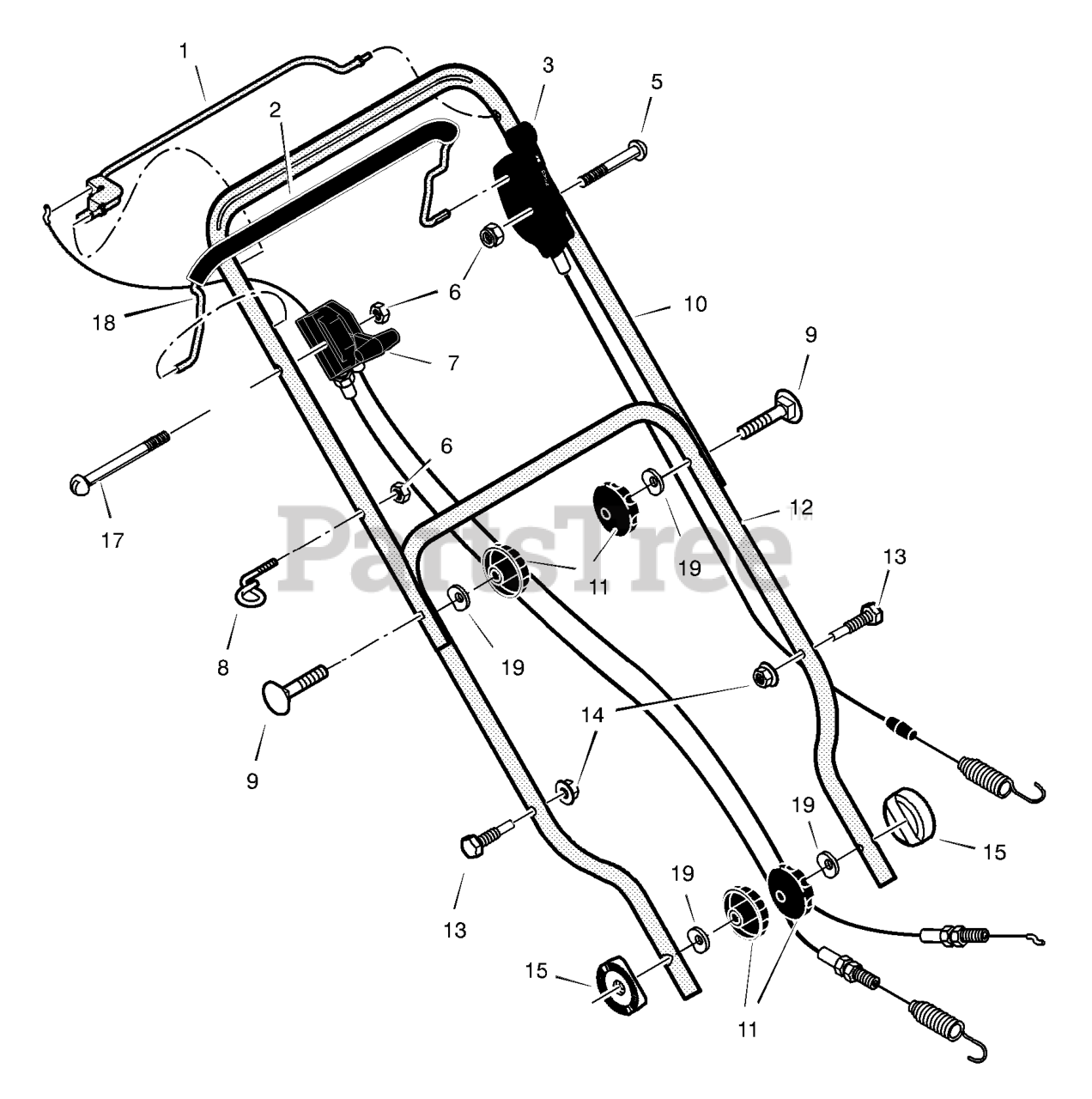

Handle Assembly Parts Diagram

  • Title

1

Murray 1101188-884

Lever, Drive

$

$

Currently unavailable

2

Murray 1101160MA

Cover, Stop Lever

$

$

Not available

3

Murray 1101374MA

Control, Blade Drive

$68.99

$

In Stock, only 1 left!

0

5

Murray 03X144

Screw

$

$

Not available

6

Murray 15X116MA

Nut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

7

Murray 1101430MA

Cable, Control-Speed Selector &

$86.99

$

In Stock, only 1 left!

0

8

Murray 672510MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

9

Murray 710175

Bolt, Carriage

$5.99

$

Usually ships in 2-12 days

0

10

Murray 1101218-846

Handle, Upper

$17.99

$

Usually ships in 2-12 days

0

11

Murray 1101453MA

Knob, Handle
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

12

Murray 1101217-846

Handle, Lower

$14.99

$

Usually ships in 2-12 days

0

13

Murray 01X183

Bolt, Handle Support

$3.99

$

Usually ships in 2-12 days

0

14

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

15

Murray 1101154MA

Adjuster, Handle

$14.99

$

Usually ships in 2-12 days

0

17

Murray 001X93MA

Bolt, Hex

$3.99

$

In Stock, Qty 12

0

18

Murray 1101212-884

Lever, Bail Stop

$

$

Currently unavailable

19

Murray 783000MA

Washer, Formed

$5.49

$

Usually ships in 2-12 days

0
