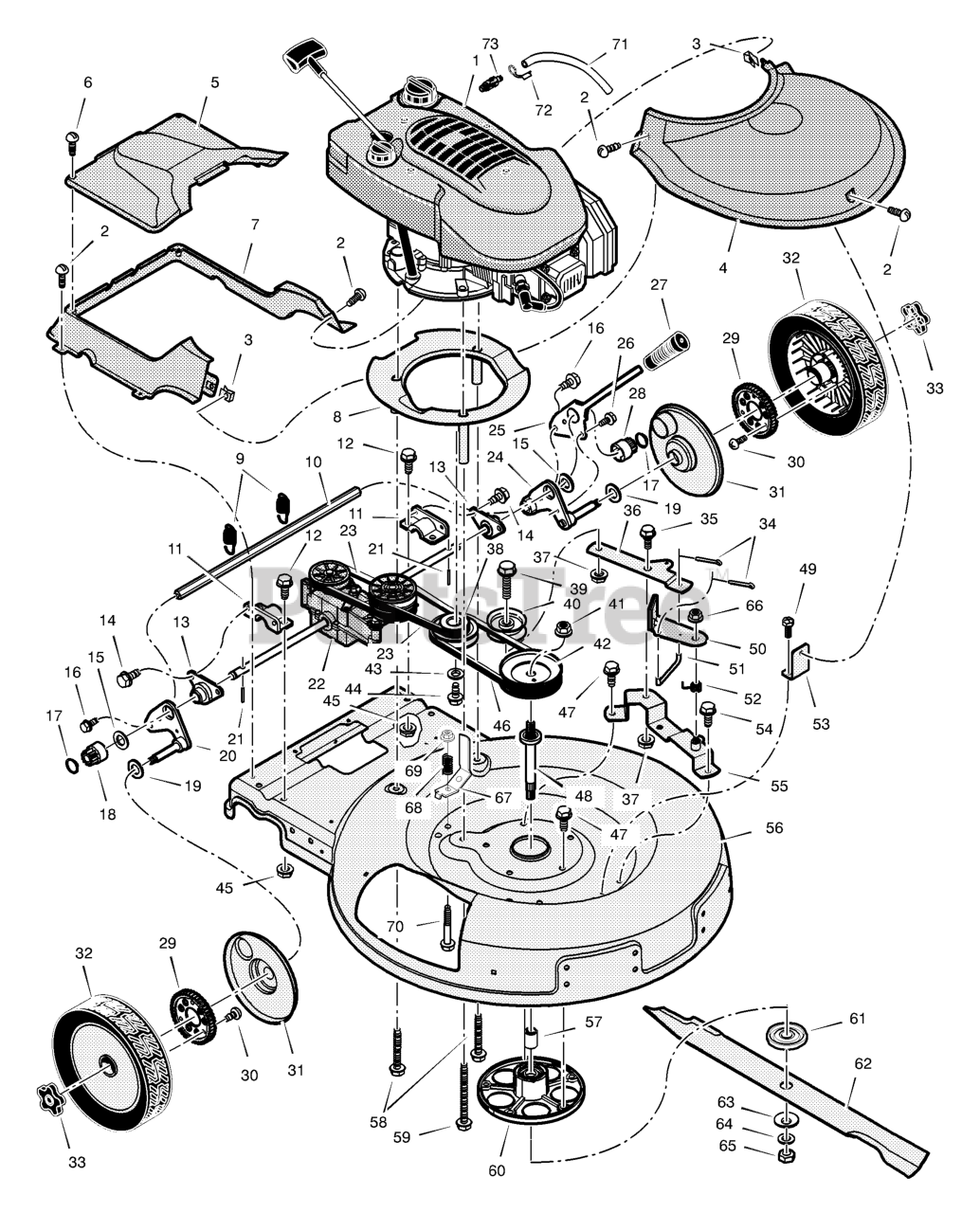

261031x692A - Stanley 26" Walk-Behind Mower (2001) Drive Assembly Parts Diagram

26" Walk-Behind Mower

Drive Assembly Parts Diagram

  • Title

1

Engine *

$

$

Not available

2

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

3

Murray 028X75

Tinnerman, "U"

$4.49

$

Usually ships in 2-12 days

0

4

Murray 1101164MA

Cover, Front

$71.99

$

Usually ships in 2-12 days

0

5

Murray 1101166MA

Cover, Transmission

$34.99

$

Usually ships in 2-12 days

0

6

Murray 26X300MA

Screw

$3.99

$

Usually ships in 2-12 days

0

7

Murray 1101165MA

Cover, Rear

$45.99

$

Usually ships in 2-12 days

0

8

Murray 1101187-846

Base Assembly, Engine

$

$

Currently unavailable

9

Murray 165X151MA

Spring, Extension

$9.99

$

Usually ships in 2-12 days

0

10

Murray 1101207

Crossbar, Rear

$

$

Not available

11

Murray 1101148MA

Bearing, Axle Support

$10.99

$

Usually ships in 2-12 days

0

12

Murray 001X85MA

Screw

$3.99

$

Usually ships in 2-12 days

0

13

Murray 1101189MA

Retainer Assembly, Axle Bearing

$119.99

$

Usually ships in 2-12 days

0

14

Murray 710277

Screw

$18.99

$

Usually ships in 2-12 days

0

15

Murray 17X186MA

Washer, Thrust

$

$

Not available

16

Murray 710312

Screw

$8.49

$

Usually ships in 2-12 days

0

17

Murray 011X29MA

Retainer Ring

$3.49

$

In Stock, only 2 left!

0

18

Murray 1101152MA

Gear, Right Pinion

$25.99

$

Usually ships in 2-12 days

0

19

Murray 0020X3MA

Washer, Spring

$4.49

$

Usually ships in 2-12 days

0

20

Murray 1101235MA

Bracket Assembly, Right Axle

$142.99

$

Usually ships in 2-12 days

0

21

Murray 043629MA

Pin, Drive

$5.99

$

In Stock, only 3 left!

0

22

Transmission

$

$

Not available

23

Murray 7769225

Belt, Transmission

$

$

Currently unavailable

24

Murray 1101234MA

Bracket Assembly, Left Axle

$79.99

$

Usually ships in 2-12 days

0

25

Murray 1101192

Lever, Spring Height Adjuster

$

$

Not available

26

Murray 26X297

Screw, Tap

$

$

Not available

27

Murray 671297MA

Knob, Height Adjuster

$6.49

$

In Stock, only 1 left!

0

28

Murray 1101153MA

Gear, Left Pinion

$

$

Not available

29

Murray 1101211MA

Gear

$

$

Not available

30

Murray 26X296MA

Screw, Tap

$4.49

$

In Stock, only 1 left!

0

31

Murray 1101163MA

Cover, Dust

$12.99

$

Usually ships in 2-12 days

0

32

Murray 1101415MA

Wheel, Drive

$65.99

$

Usually ships in 2-12 days

0

33

Murray 672449MA

Knob, Axle

$5.99

$

Usually ships in 2-12 days

0

34

Murray 0030X1

Pin, Cotter

$4.99

$

Usually ships in 2-12 days

0

35

Murray 710200

Bolt, Shoulder

$7.99

$

Usually ships in 2-12 days

0

36

Murray 1101174 Z

Idler Arm

$

$

Currently unavailable

37

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

38

Murray 1101156MA

Pulley, Engine

$21.99

$

Usually ships in 2-12 days

0

39

Murray 01X111MA

Screw

$4.49

$

In Stock, only 1 left!

0

40

Murray 056526MA

Pulley, Idler

$

$

Not available

41

Murray 15X121

Nut, Blade Pulley

$9.99

$

In Stock, Qty 7

0

42

Murray 1101191MA

Pulley, Blade

$16.99

$

Usually ships in 2-12 days

0

43

Murray 018X31MA

Washer, Split

$4.49

$

Usually ships in 2-12 days

0

44

Murray 710163

Screw
(Superseded to 710074)

$3.99

$

Usually ships in 2-12 days

0

45

Murray 45171MA

Nut

$3.49

$

Usually ships in 2-12 days

0

46

Murray 7769208MA

Belt, Blade Drive

$21.99

$

Usually ships in 2-12 days

0

47

Murray 0025X7MA

Bolt
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

48

Murray 1101193MA

Jackshaft

$18.99

$

Usually ships in 2-12 days

0

49

Murray 26X233MA

Screw

$3.99

$

Usually ships in 2-12 days

0

50

Murray 1101190MA

Brake Assembly, Blade

$136.99

$

Usually ships in 2-12 days

0

51

Murray 1101196

Link, Blade Brake

$3.99

$

Usually ships in 2-12 days

0

52

Murray 166X27MA

Spring, Torsion

$4.49

$

Usually ships in 2-12 days

0

53

Murray 1101205-884

Bracket, Front Cover

$

$

Currently unavailable

54

Murray 26X214MA

Screw

$4.49

$

Usually ships in 2-12 days

0

55

Murray 1101230 Z

Support Assembly, Idler & Brake

$

$

Currently unavailable

56

Murray 1101221-884

Housing

$

$

Currently unavailable

57

Murray 1101194MA

Spacer, Jackshaft

$4.99

$

Usually ships in 2-12 days

0

58

Murray 025X17

Bolt, Short Engine Mount

$4.49

$

In Stock, only 1 left!

0

59

Murray 025X18MA

Bolt, Long Engine Mount

$5.99

$

Usually ships in 2-12 days

0

60

Murray 7769227

Mandrel Assembly

$

$

Not available

61

Murray 7769226MA

Adapter, Blade
(Superseded to 491926MA)

$16.99

$

In Stock, Qty 18

0

62

Murray 7769202

Blade

$

$

Not available

63

Murray 17X166MA

Washer, Cup

Note: (Included with Ref. No. 61)

$13.99

$

In Stock, Qty 18

0

64

Murray 17X165MA

Washer

Note: (Included with Ref. No. 61)

$16.99

$

In Stock, only 4 left!

0

65

Murray 15X100MA

Nut, Blade Mount

Note: (Included with Ref. No. 61)

$3.99

$

In Stock, Qty 10

0

66

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

67

Murray 1101466 Z

Guide, Belt

$

$

Currently unavailable

68

Murray 0164X1MA

Spring

$12.99

$

Usually ships in 2-12 days

0

69

Murray 015X79MA

Nut
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

70

Murray 001X75MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

71

Murray 1101438

Tube, Oil Drain

$

$

Currently unavailable

72

Murray 327422

Cap, Oil Drain

$

$

Not available

73

Murray 325547MA

Valve, Oil Drain

$

$

Not available

--

Murray F-0101451M

Instruction Book

$

$

Currently unavailable
