261031x692A - Stanley 26" Walk-Behind Mower (2001) Caster Assembly Parts Diagram

26" Walk-Behind Mower

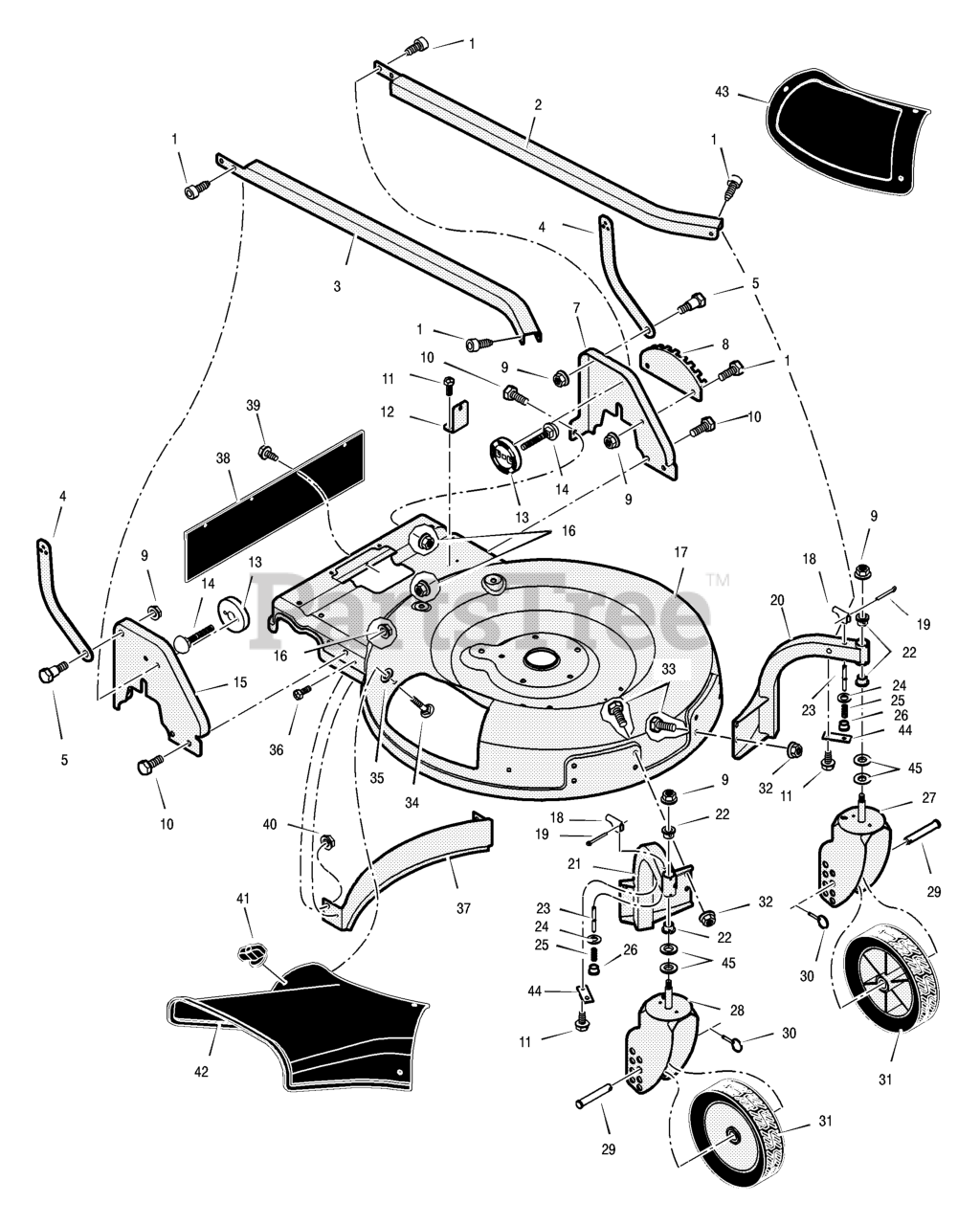

Caster Assembly Parts Diagram

  • Title
1

$18.99

$

Usually ships in 2-12 days

0

2

Murray 1101204-846

Brace, Left

$

$

Currently unavailable

3

Murray 1101203-846

Brace, Right

$

$

Currently unavailable

4

Murray 1101229-846

Support, Handle

$

$

Currently unavailable

5

Murray 009X30

Bolt, Shoulder

$

$

Not available

7

Murray 1101168-884

Bracket, Left Handle

$

$

Currently unavailable

8

Murray 1101206-884

Plate, Index

$

$

Currently unavailable

9

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

10

$3.99

$

Usually ships in 2-12 days

0

11

$3.99

$

Usually ships in 2-12 days

0

12

Murray 1101213-884

Bracket, Blade Drive Cable

$

$

Currently unavailable

13

Murray 1101155MA

Support, Handle Adjuster

$10.99

$

Usually ships in 2-12 days

0

14

Murray 002X76MA

Bolt, Carriage

$3.99

$

Usually ships in 2-12 days

0

15

Murray 1101169-884

Bracket, Right Handle

$

$

Currently unavailable

$3.49

$

Usually ships in 2-12 days

0

17

Murray 1101221-884

Housing, Mower

$

$

Currently unavailable

18

Murray 1101167MA

Lever, Wheel Lock

$3.99

$

Usually ships in 2-12 days

0

19

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

20

Murray 1101184-884

Bracket Assembly, Left Caster

$29.99

$

Usually ships in 2-12 days

0

21

Murray 1101185-884

Bracket Assembly, Right Caster

$

$

Currently unavailable

22

$4.49

$

In Stock, only 1 left!

0

23

Murray 1101208MA

Rod, Wheel Lock

$18.99

$

Usually ships in 2-12 days

0

24

$

$

Not available

25

Murray 164X35MA

Spring, Compression

$18.99

$

Usually ships in 2-12 days

0

26

$3.49

$

Usually ships in 2-12 days

0

27

Murray 1101381E884

Bracket Assembly, Left Wheel

$

$

Currently unavailable

28

Murray 1101382E884

Bracket Assembly, Right Wheel

$

$

Currently unavailable

29

Murray 1101224MA

Axle, Caster

$4.49

$

Usually ships in 2-12 days

0

30

Murray 1101225MA

Pin, Cotterless Hitch

$6.49

$

Usually ships in 2-12 days

0

31

Murray 1101416MA

Wheel and Tire

$33.99

$

Usually ships in 2-12 days

0

32

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

33

Murray 001X45MA

Bolt, Hex
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

34

Murray 002X95MA

Bolt, Carriage

$15.99

$

Usually ships in 2-12 days

0

35

Murray 028X55MA

Retainer, Bolt

$3.49

$

Usually ships in 2-12 days

0

36

$3.99

$

Usually ships in 2-12 days

0

37

Murray 1101171-884

Baffle, Rear

$

$

Currently unavailable

38

Murray 1101200MA

Deflector, Rear

$6.99

$

In Stock, only 1 left!

0

39

$

$

Currently unavailable

$3.49

$

Usually ships in 2-12 days

0

$5.99

$

Usually ships in 2-12 days

0

42

Murray 1101161MA

Deflector, Chute

$77.99

$

Usually ships in 2-12 days

0

43

Murray 1101162MA

Cover, Mulch

$28.99

$

Usually ships in 2-12 days

0

44

Murray 1101445 Z

Plate, Locking Arm

$

$

Currently unavailable

45

Murray 710245

Washer
(Superseded to 710795)

$22.99

$

In Stock, only 2 left!

0
