261 - Husqvarna Chainsaw (SN: 19981000001 - 19992399999) ELECTRICAL Parts Diagram

Chainsaw

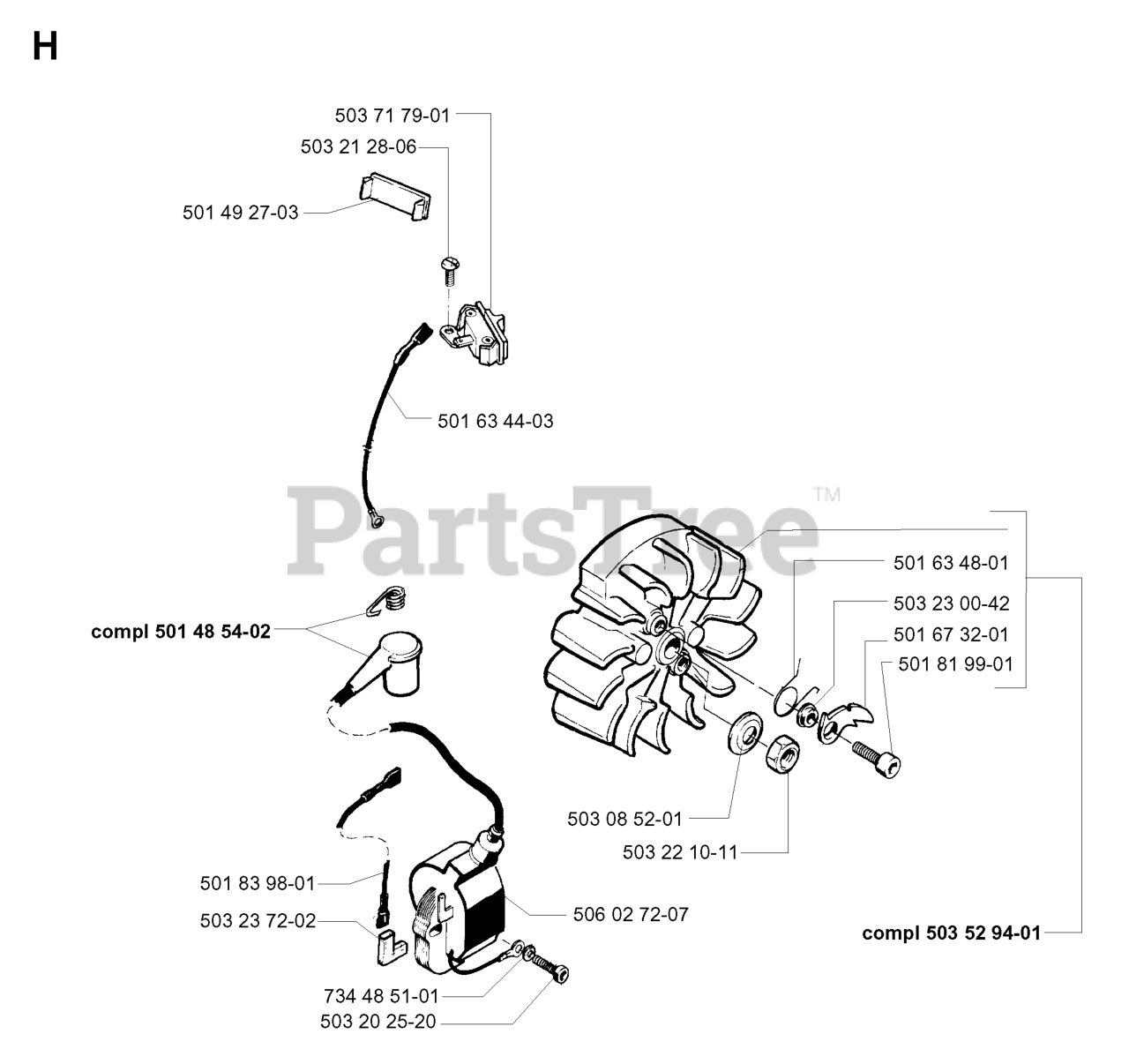

ELECTRICAL Parts Diagram

  • Title

734 48 51-01

Husqvarna 734485101

FLAT WASHER 4.3X8

$

$

Not available

501 83 98-01

Husqvarna 501839801

SHORTING LEAD

$13.99

$

In Stock, only 1 left!

0

501 49 27-03

Husqvarna 501492703

COVER

$5.99

$

In Stock, Qty 6

0

503 71 79-01

Husqvarna 503717901

SWITCH ON/OFF

$17.99

$

In Stock, only 3 left!

0

501 63 48-01

Husqvarna 501634801

SPRING

$4.99

$

In Stock, Qty 14

0

503 20 25-20

Husqvarna 503202520

SCREW

$6.49

$

In Stock, Qty 8

0

501 63 44-03

Husqvarna 501634403

CABLE

$

$

Not available

503 08 52-01

Husqvarna 503085201

WASHER

$4.99

$

In Stock, only 4 left!

0

501 67 32-01

Husqvarna 501673201

PAWL

$8.99

$

In Stock, only 2 left!

0

503 22 10-11

Husqvarna 503221011

NUT M8X1

$6.49

$

In Stock, only 1 left!

0

503 21 28-06

Husqvarna 503212806

SCREW

$6.49

$

In Stock, only 1 left!

0

503 52 94-01

Husqvarna 503529401

FLYWHEEL

$

$

Not available

506 02 72-07

Husqvarna 506027207

IGNITION MODULE
(Superseded to 503901201)

$

$

Not available

501 48 54-02

Husqvarna 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, Qty 5

0

501 81 99-01

Husqvarna 501819901

SCREW M5X14

$6.49

$

In Stock, Qty 5

0

503 23 00-42

Husqvarna 503230042

WASHER

$6.49

$

In Stock, only 2 left!

0

503 23 72-02

Husqvarna 503237202

INSULATING CAP

$4.99

$

In Stock, only 1 left!

0
