26069T (80102) - Snapper 26" Rear-Engine Riding Mower, 6hp Wheels - Front Parts Diagram

26" Rear-Engine Riding Mower, 6hp

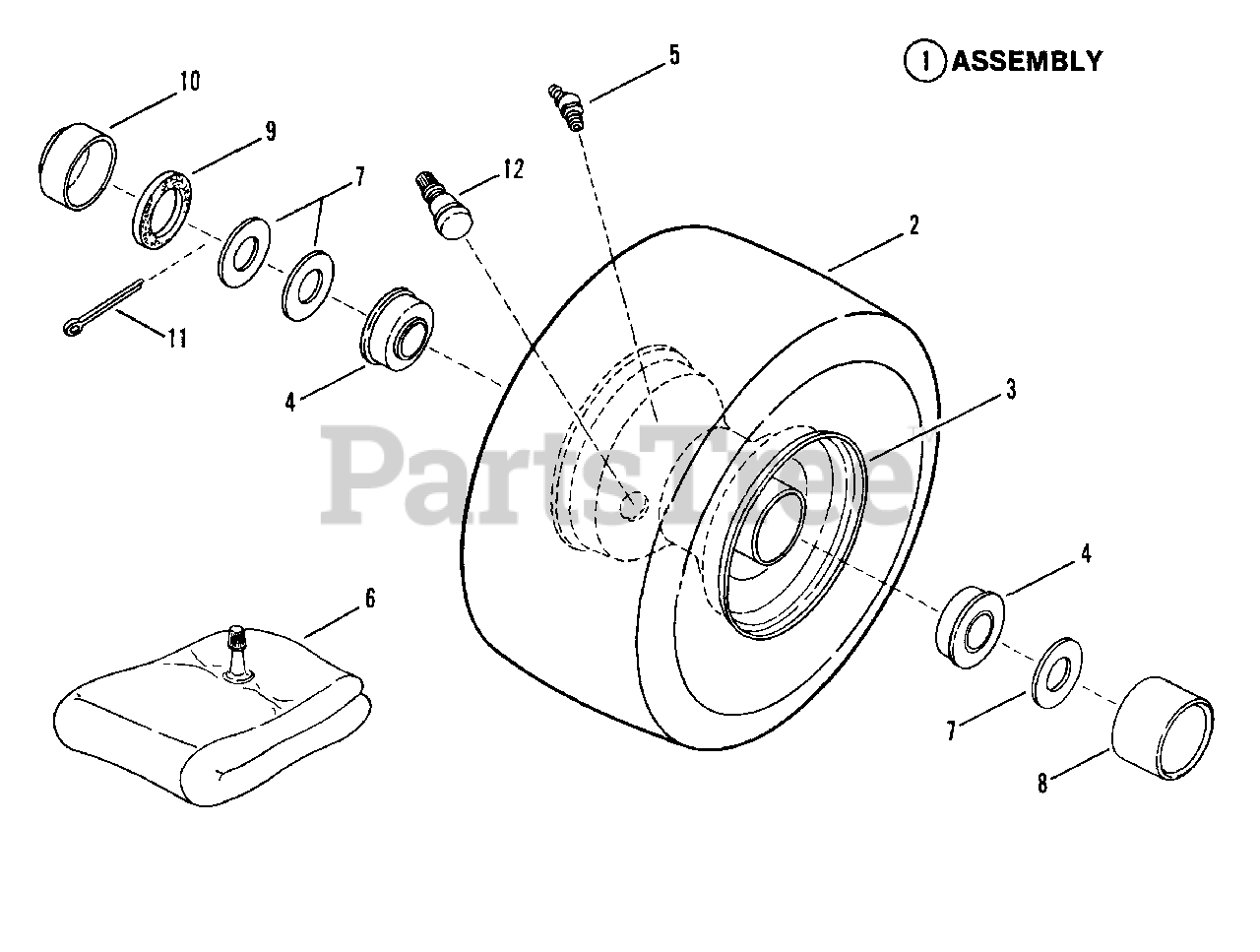

Wheels - Front Parts Diagram

  • Title

1

Snapper 7052267

ASSEMBLY, Front Tire & Rim
(Superseded to 7052267YP)

Note: Was 52305 (Includes items 2 thru 5); (For 25 & 26" Models) 6 HP - White

$87.99

$

In Stock, Qty 14

0

Snapper 7052267

ASSEMBLY, Front Tire & Rim
(Superseded to 7052267YP)

Note: (Includes items 2 thru 5); (For 25 thru 30" Models) 6.5 to 10 HP-Gray

$87.99

$

In Stock, Qty 14

0

Snapper 7052268

ASSEMBLY, Tire & Rim
(Superseded to 7052268YP)

Note: (Includes items 2 thru 6); (For 28 thru 33" Models) 12 to 14 HP-Gray

$107.99

$

In Stock, Qty 7

0

2

Snapper 7023828

TIRE, 4.10/3.50 x 4
(Superseded to 7023828YP)

$59.99

$

Usually ships in 2-12 days

0

3

Snapper 7017146

RIM (For 4.10/3.50 x 4 Tire)
(Superseded to 7058943YP)

Note: (Includes items 4 & 5)

$102.99

$

In Stock, only 2 left!

0

4

Snapper 7011807

BEARING, Ball
(Superseded to 7011807YP)

$7.99

$

In Stock, Qty 17

0

5

Snapper 7014247

FITTING, Lube
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

6

Snapper 7010821

TUBE, Inner (For 4 10/3.50 x 4 Tire)
(Superseded to 7010821YP)

$18.99

$

In Stock, Qty 5

0

7

Snapper 7010935

WASHER
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7011022

HUB-CAP
(Superseded to 7011022YP)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7011032

SEAL, Felt
(Superseded to 7011032YP)

$4.99

$

In Stock, Qty 20+

0

10

Snapper 7031038

CAP, Dust
(Superseded to 7031038YP)

$4.99

$

In Stock, Qty 12

0

11

Snapper 7091516

COTTER-PIN
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

12

Snapper 7012234

VALVE, Air (Snap-In)
(Superseded to 7012234SM)

Note: (6.5 & 8 HP Models Only)

$6.49

$

Usually ships in 2-12 days

0
