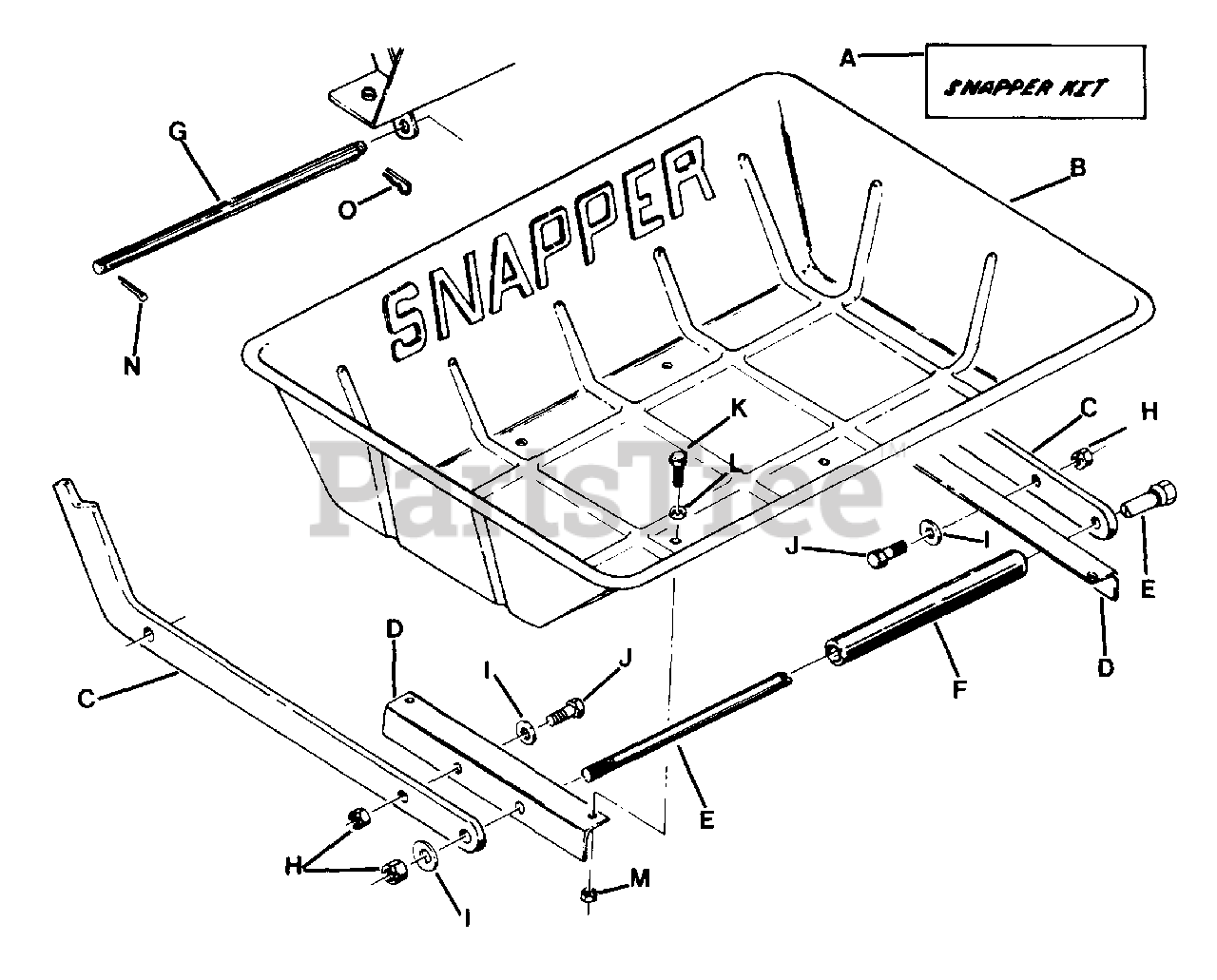

26063S (89477) - Snapper 26" Rear-Engine Riding Mower, 6hp Load Carrier Accessory Parts Diagram

26" Rear-Engine Riding Mower, 6hp

Load Carrier Accessory Parts Diagram

  • Title

A

Snapper 7060197

KIT, LOAD CARRIER

$

$

Currently unavailable

B

Snapper 7011822

BOX, TOTE
(Superseded to 7011822YP)

$119.99

$

Usually ships in 2-12 days

0

C

Snapper 7037342

RAIL, SIDE
(Superseded to 7037342YP)

$39.99

$

Usually ships in 2-12 days

0

D

Snapper 7031737

BRACE

$

$

Not available

E

Snapper 7011832

BOLT, 3/8-16 x 10"

$

$

Currently unavailable

F

Snapper 7031738

SPACER, BOX

$

$

Currently unavailable

G

Snapper 7021153

PIN
(Superseded to 7021153YP)

$21.99

$

Usually ships in 2-12 days

0

H

Snapper 7090499

NUT, 3/8-16 HEX LOCK
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

I

Snapper 7090122

WASHER, 3/8 SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

J

Snapper 7090138

SCREW, HEX HEAD CAP 3/8-16 x 1
(Superseded to 7090138YP)

$3.99

$

Usually ships in 2-12 days

0

K

Snapper 7090541

SCREW, HEX HEAD CAP 1/4-28 x 3/4 GRADE 5
(Superseded to 7090541YP)

$3.49

$

Usually ships in 2-12 days

0

L

Snapper 7091294

WASHER, 1/4 SAE
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

M

Snapper 7090303

NUT, 1/4-28 HEX LOCK
(Superseded to 703972)

$3.49

$

In Stock, Qty 7

0

N

Snapper 7091516

COTTER-PIN, 5/32 x 1
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

O

Snapper 7011714

PIN, HAIR
(Superseded to 7011714YP)

$4.49

$

Usually ships in 2-12 days

0
