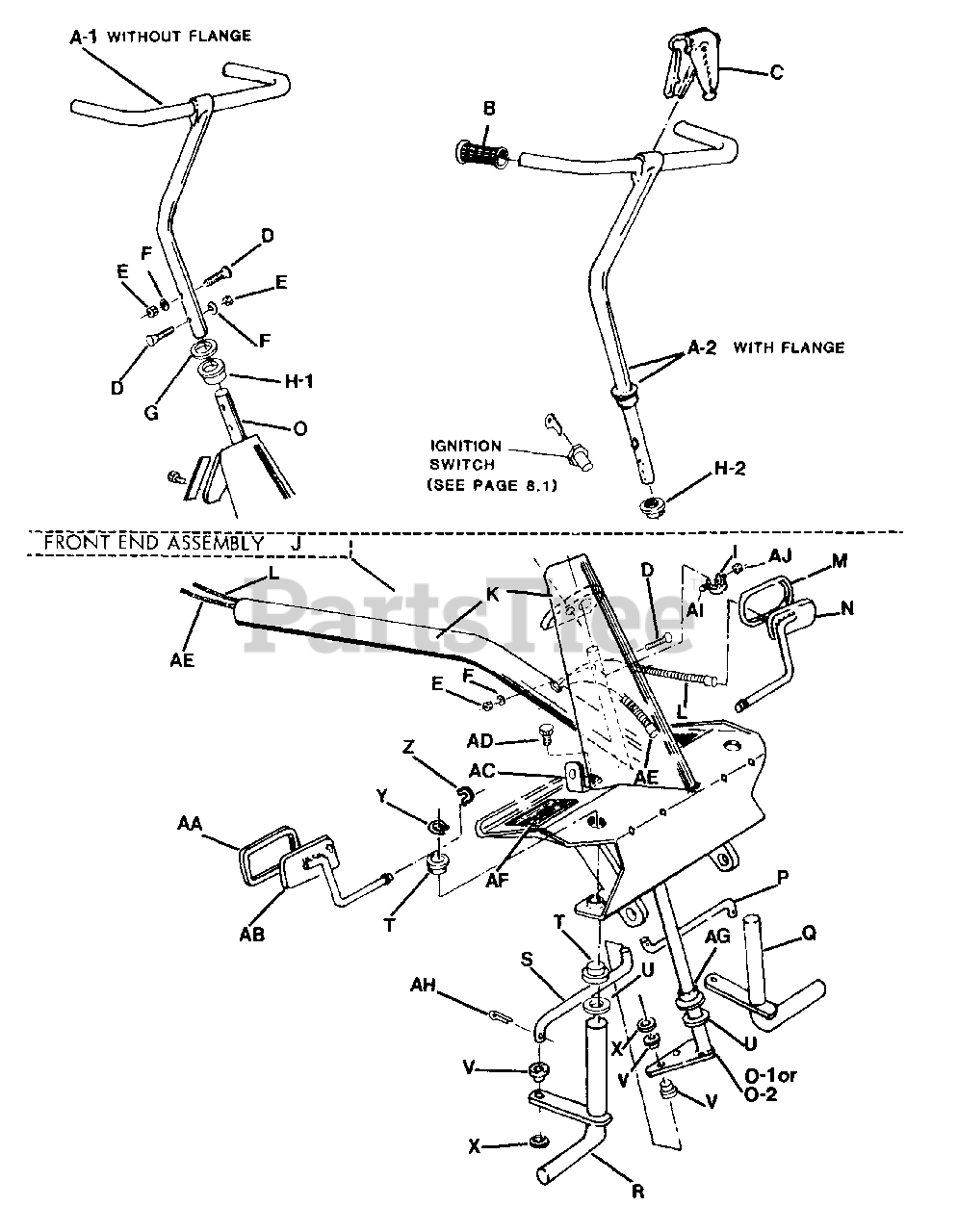

26063S (89477) - Snapper 26" Rear-Engine Riding Mower, 6hp Front End, Steering Parts Diagram

26" Rear-Engine Riding Mower, 6hp

Front End, Steering Parts Diagram

  • Title

A1

Snapper 7047717

HANDLE, STEERING

Note: (WITHOUT FLANGE)

$

$

Not available

A2

Snapper 7022757

HANDLE, Steering

Note: (Was 19669 (WITH FLANGE))

$

$

Not available

B

Snapper 7012031

GRIP, STEERING HANDLE
(Superseded to 7012031YP)

$9.49

$

Usually ships in 2-12 days

0

C

Snapper 7019517

COVER, HANDLE CENTER
(Superseded to 7019517YP)

$

$

Not available

D

Snapper 7012175

BOLT, 1/4-28 TAPERED HEAD

$7.99

$

In Stock, Qty 5

0

E

Snapper 7090095

NUT, 1/4-28 HEX
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

F

Snapper 7090053

WASHER 1/4 INTERNAL TOOTH LOCK
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

G

Snapper 7010690

WASHER, SHIM
(Superseded to 7010690YP)

Note: (USED WITH HANDLE A1 ONLY)

$3.99

$

Usually ships in 2-12 days

0

H1

Snapper 7010694

BUSHING, NYLON
(Superseded to 7010694YP)

Note: (USED WITH HANDLE A1)

$4.49

$

Usually ships in 2-12 days

0

H2

Snapper 7012617

BUSHING, NYLON
(Superseded to 7012617YP)

Note: (USED WITH HANDLE A2)

$4.49

$

In Stock, only 2 left!

0

I

Snapper 7032009

CLAMP
(Superseded to 7032009YP)

Note: (USED WITH HANDLE A2 ONLY)

$27.99

$

Usually ships in 2-12 days

0

J

FRONT END ASSEMBLY (No longer available)

Note: (FOR THROTTLE CONTROL)

$

$

Not available

K

Snapper 7049558

WELD, FRONT AXLE (STD 25"-30" with plate for throttle)
(Superseded to 7049558YP)

Note: (FOR THROTTLE)

$

$

Not available

K

Snapper 7049974

WELD, FRONT AXLE (STD 25"-30" with plate for switch)

Note: (FOR IGNITION SWITCH)

$

$

Currently unavailable

K

Snapper 7049975

WELD, FRONT AXLE (Wide 33"-42" with plate for switch)

Note: (FOR IGNITION SWITCH)

$

$

Currently unavailable

L

Snapper 7012425

CABLE, CLUTCH / BRAKE (50.72" Yellow coded)
(Superseded to 7012425YP)

Note: (USED WITH STD LENGTH TUBE 49558 & 49974)

$21.99

$

In Stock, Qty 12

0

L

Snapper 7012605

CABLE, CLUTCH / BRAKE (54.12" Black coded)
(Superseded to 7012605YP)

Note: (USED WITH LONG TUBE 49975)

$59.99

$

Usually ships in 2-12 days

0

M

Snapper 7011815

PAD, CLUTCH/BRAKE PEDAL (LH Side)
(Superseded to 7011815YP)

$11.99

$

In Stock, only 3 left!

0

N

Snapper 7047773

PEDAL, CLUTCH/BRAKE
(Superseded to 7047773YP)

Note: (Was 47327)

$54.99

$

In Stock, only 1 left!

0

O1

Snapper 7040344

SHAFT, STEERING

Note: (USED WITH A1 HANDLE)

$

$

Not available

O2

Snapper 7040457

SHAFT, STEERING

Note: (USED WITH A2 HANDLE)

$

$

Not available

P

Snapper 7013023

TIE-ROD, Left Hand
(Superseded to 7013023YP)

Note: (Was 31057 (FOR STD WIDTH FRONT END))

$13.99

$

In Stock, only 1 left!

0

P

Snapper 7012541

TIE-ROD, LEFT HAND
(Superseded to 7012541BMYP)

Note: (FOR WIDE FRONT END)

$14.99

$

In Stock, only 1 left!

0

Q

Snapper 7041731

King Pin, L.H.

Note: (Was 40362)

$

$

Not available

R

Snapper 7041730

King Pin, R.H.

Note: )Was 40361)

$

$

Not available

S

Snapper 7012933

TIE-ROD, Right Hand
(Superseded to 7012933YP)

Note: (Was 31058 (FOR STD WIDTH FRONT END))

$18.99

$

Usually ships in 2-12 days

0

S

Snapper 7012540

TIE-ROD, RIGHT HAND
(Superseded to 7012540YP)

Note: (FOR WIDE FRONT END 49975)

$14.99

$

In Stock, only 1 left!

0

T

Snapper 7010986

BEARING
(Superseded to 7010986YP)

$4.49

$

In Stock, Qty 20+

0

U

Snapper 7010935

WASHER
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

V

Snapper 7013321

BEARING
(Superseded to 7013321YP)

$4.49

$

In Stock, Qty 20+

0

X

Snapper 7090122

WASHER, 3/8 SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

Y

Snapper 7010746

RING, RETAINING
(Superseded to 703975)

$3.99

$

In Stock, Qty 20+

0

Z

Snapper 7010776

RING, RETAINING
(Superseded to 7010776YP)

$3.99

$

In Stock, only 1 left!

0

AA

Snapper 7011747

PAD, AUX. BRAKE PEDAL

$7.49

$

Usually ships in 2-12 days

0

AB

Snapper 7047772

PEDAL, AUX. BRAKE (RH Side)

Note: (Was 47345)

$

$

Currently unavailable

AC

Snapper 7031191

MOUNT, AUX. BRAKE PEDAL

$

$

Not available

AD

Snapper 7090361

SCREW, SELF-TAPPING 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

AE

Snapper 7012426

CABLE, AUX. BRAKE (41.625" Orange coded)
(Superseded to 7012426YP)

Note: (USED WITH STD LENGTH TUBE 49558 & 49974)

$23.99

$

In Stock, only 3 left!

0

AE

Snapper 7012606

CABLE, AUX. BRAKE (45.0" Red coded)
(Superseded to 7012606YP)

Note: (USED WITH LONG TUBE 49975)

$19.99

$

Usually ships in 2-12 days

0

AF

Snapper 7014049

PAD, Foot
(Superseded to 7105147YP)

Note: (Was 11020)

$6.99

$

In Stock, Qty 6

0

AG

Snapper 7010694

BUSHING, NYLON
(Superseded to 7010694YP)

$4.49

$

Usually ships in 2-12 days

0

AH

Snapper 7091598

COTTER-PIN, 1/8 x 3/4
(Superseded to 703958)

Note: (Was 90365)

$4.49

$

In Stock, only 4 left!

0

AI

Snapper 7091612

BOLT, 5/16-18 x 1-1/2 CARRIAGE
(Superseded to 704210)

Note: (Was 90582)

$4.99

$

In Stock, Qty 12

0

AJ

Snapper 7091511

NUT, 5/16-18 HEX
(Superseded to 7091511SM)

Note: (Was 90196)

$3.49

$

In Stock, Qty 20+

0
