2600 (UT-26032-A) - Green Machine String Trimmer Stringhead & Accessories Parts Diagram

String Trimmer

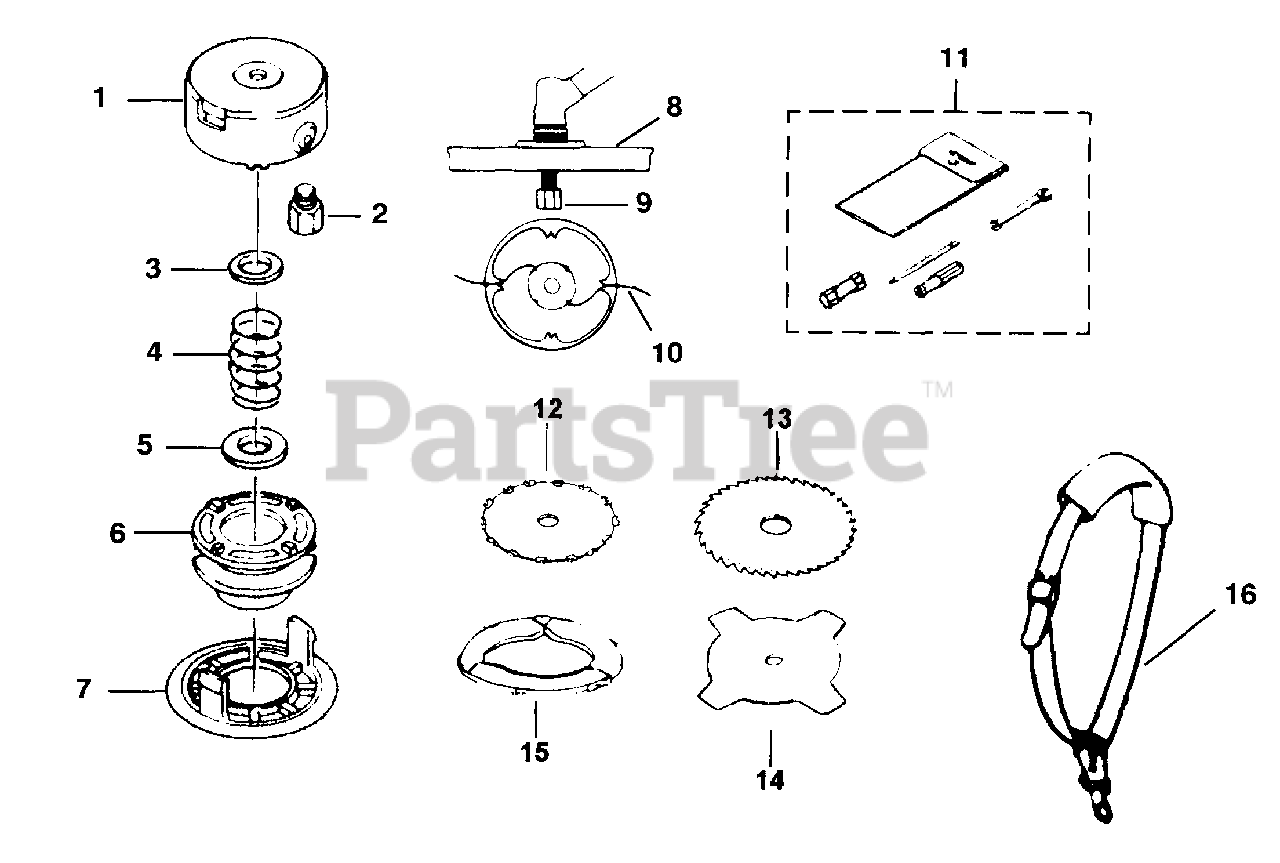

Stringhead & Accessories Parts Diagram

  • Title

Homelite DG07796

4" TFC HEAD ASSY

$

$

Not available

1

Homelite GM180302

HEAD BODY

$

$

Not available

2

Homelite GM226701

ARBOR BOLT

$

$

Not available

3

Homelite GM166903

SPRING PLATE

$

$

Not available

4

Homelite GM167901

SPRING
(Superseded to UP06740)

$5.49

$

Usually ships in 3-7 days

0

5

Homelite GM166903

SPRING PLATE

$

$

Not available

6

Homelite GM185206

SPOOL
(Superseded to DG07811A)

$

$

Not available

7

Homelite GM185205

CAP

$

$

Not available

8

Homelite DG07799

FIXED LINE HEAD ASSY (OPT.)

$

$

Currently unavailable

9

Homelite GM325205

ARBOR BOLT

$

$

Currently unavailable

10

Homelite DG07809

GREEN LINE .080 X 20ft.

$

$

Not available

11

Homelite GM280603

TOOLKIT

$

$

Currently unavailable

12

Homelite DG07817

8" XRT BLADE (OPT.)

$

$

Currently unavailable

13

Homelite DG07815

8" SAW BLADE (OPT.)

$39.99

$

Usually ships in 3-7 days

0

14

Homelite DG07813

8" QUAD BLADE (OPT.)

$

$

Currently unavailable

15

Homelite GM94110

BLADE COVER (OPT.)

$

$

Not available

16

Homelite GM280311

HARNESS (OPT)
(Superseded to DG07819)

$

$

Not available
